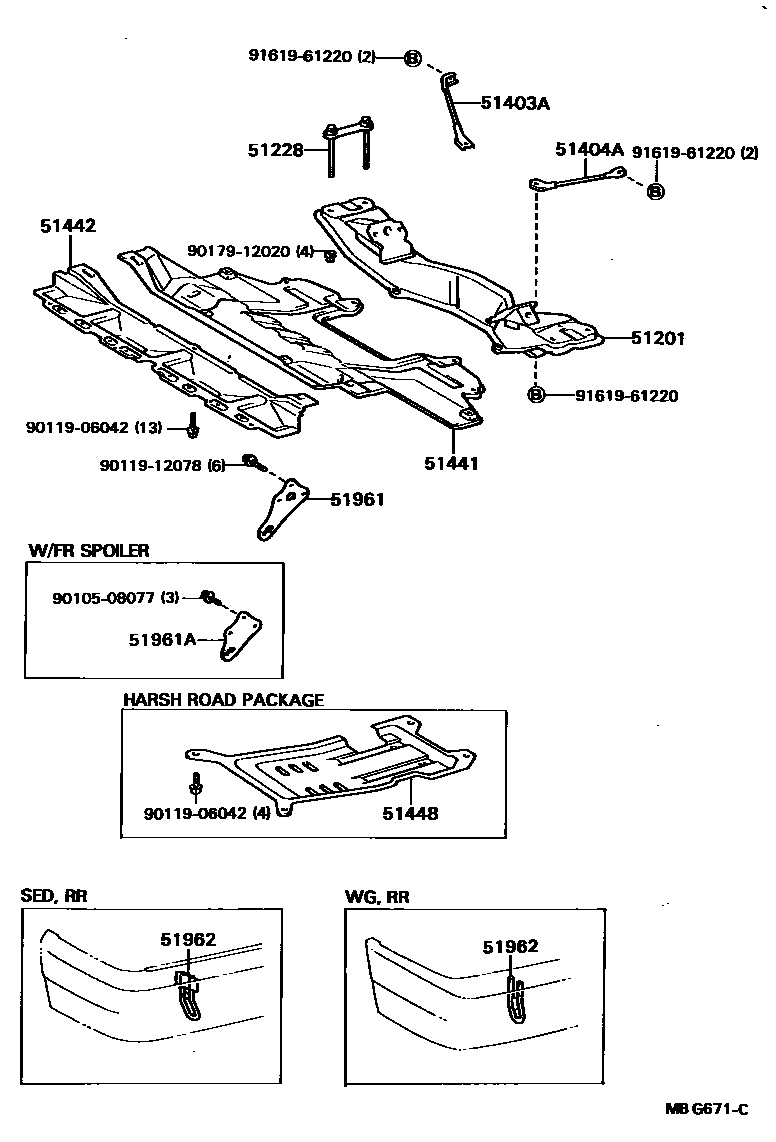

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22300iGX71,MX73..RHD¥41,500198408-198604

sub51201-22380¥41,600

main51201-22320iRX70,72..RHD¥41,600198408-198808

sub51201-22321¥41,300

sub45515-22100¥940

sub45517-22040¥950

main51201-22340iGX71,MX7#..LHD¥41,600198408-198808

sub51201-22341¥41,500

sub45515-22100¥940

sub45517-22040¥950

main51201-22350iRX7#..LHD¥41,600198408-198808

sub51201-22351¥41,300

sub45515-22110¥1,010

sub45517-22040¥950

main51201-22360iLX7#¥41,600198408-198808

sub51201-22361¥41,500

sub45515-22110¥1,010

sub45517-22040¥950

main51201-22370iYX70¥41,600198502-198808

sub51201-22371¥41,300

sub45515-22090¥620

sub45517-22040¥950

main51201-22380iGX71,MX73..RHD¥41,600198604-198808

sub51201-22381¥41,500

sub45515-22090¥620

sub45517-22040¥950

51228PLATE, SUSPENSION MEMBER SET

main51229-22040iGX71,LX7#,MX7#,RX7#,YX70¥940198408-198808

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-22010iLX7#,RX7#..LHD¥1,810198408-198808

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-22010iLX7#,RX7#..LHD¥1,810198408-198808

51441COVER, ENGINE UNDER, NO.1

main51405-22030iMX73..4FC..SWZ¥12,300198408-198808

main51441-22140iGX71,YX70;MX73..5F..EUR;MX73..4FC..EUG;MX73..ARL,GEN,ME,SA¥10,700198408-198808

main51441-22150iRX7#¥9,400198408-198808

51442COVER, ENGINE UNDER, NO.2

main51442-22040iGX71,LX7#,MX7#,RX7#,YX70¥5,600198408-198808

51448PROTECTOR, OIL PAN

main51447-22020iRX70¥6,800198408-198608

HARSH ROAD PACKAGE

main51447-22020iLX70,RX7#¥6,800198608-198808

51961HOOK, NO.1

main51963-22040iGX71,LX7#,MX7#,RX70,YX70¥720198408-198808

main51963-22050iMX73,RX72..ME¥1,160198608-198808

51961AHOOK, NO.3

main51963-22070iRX70,72..RHD..GL¥740198408-198808

W/FR SPOILER

51962HOOK, NO.2

main51095-22030iMX73,RX72..(HT,SED)..ME¥4,160198608-198808

main51965-22040iGX71,MX73,RX7#,YX70..SED..(ARL,GEN,SA)¥2,710198408-198808

main51965-23010iLX70,MX72,RX70..WG¥2,690198411-198808

main51965-23020iRX72..WG..ME¥2,690198608-198808

9010508077

main90105-08077¥110

9011906042

main90119-06042¥130

9011912078

main90119-12078¥190

9017912020

main90179-12020¥160

9161961220

main91619-61220¥250

15 parts on this diagram · 2 diagrams in section
