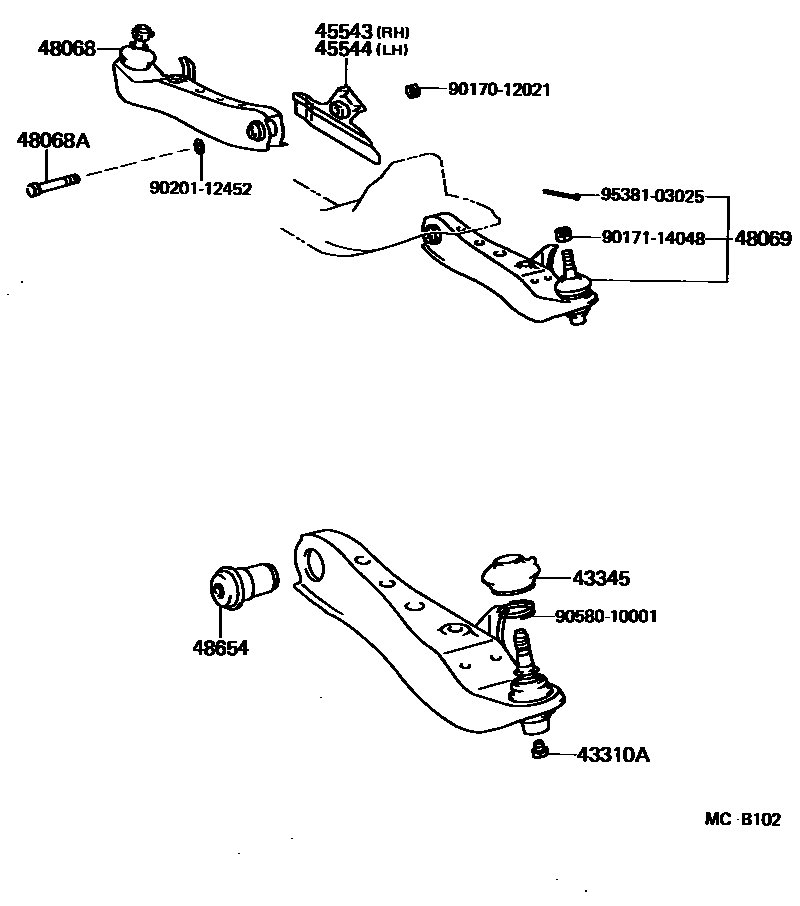

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43345COVER, LOWER BALL JOINT DUST

main43345-22070iGX71,LX7#,MX7#,RX7#,YX70198408-198808

45543PROTECTOR, STEERING RACK BOOT, RH

main45543-22010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

45544PROTECTOR, STEERING RACK BOOT, LH

main45544-22010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29095iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12112iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29095iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48654BUSH, LOWER ARM

main48654-12010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9017012021

main90170-12021

9017114048

main90171-14048

9020112452

main90201-12452

9058010001

main90580-10001

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
