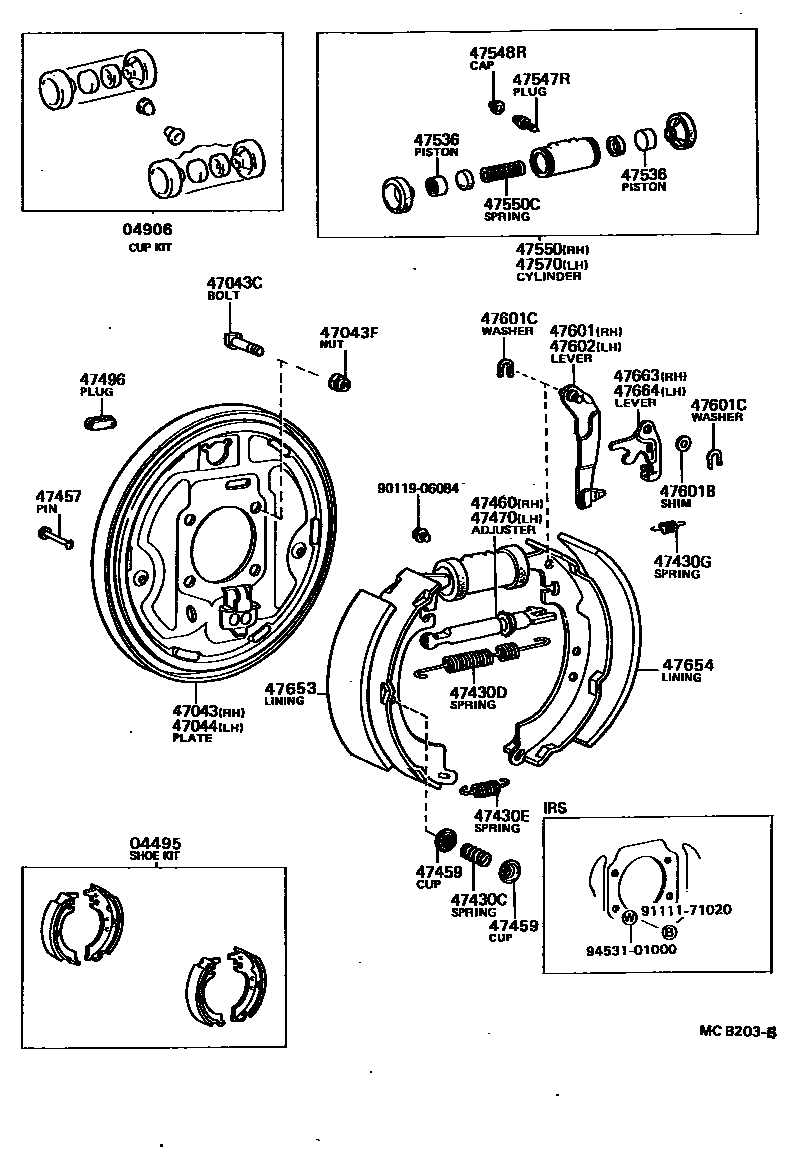

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-20050iLX70..GEN198408-198808

sub04495-20051

main04495-22030iLX70,MX72..EUR198411-198608

sub04495-22031

main04495-22040iGX71..ME198408-198808

sub04495-22041

main04495-22060iLX71198408-198608

sub04495-22061

main04495-22080iLX70198709-198808

sub04495-22081

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iLX7#,MX72..EUR198408-198608

main04906-14020iRX72..GEN198408-198808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-22040iRX71,73198408-198808

main47043-22060iLX70,RX70,72,YX70..CBR,DSL198408-198808

sub47043-23020

sub47492-28010

main47043-23030iLX70,MX72..EUR198411-198608

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iLX70,MX72,RX70,72..EUR,GEN,ME198408-198808

*10-1.25PX37-15

main42184-22020iRX70,YX70..SA198502-198808

*10-1.25PX26-10

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iLX70,MX72,RX70,72,YX70198408-198808

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-22040iGX71,LX71..(EFI,TD)..(EUR,ME,SA)198408-198808

main47044-22060iLX70,RX70,72,YX70..CBR,DSL198408-198808

sub47044-23020

sub47492-28010

main47044-23030iLX70,MX72..EUR198411-198608

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iGX71..ME,SA198408-198808

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375iLX70,MX72,RX70,72,YX70198408-198808

main90506-29008iLX71,RX71,73198408-198808

RH

main90506-29009iGX71..ME,SA198408-198808

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iGX71..ME,SA198408-198808

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iGX71..ME,SA198408-198808

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iGX71..ME,SA198408-198808

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iGX71..ME,SA198408-198808

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14040iLX7#,MX72,RX7#,YX70198408-198808

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14040iLX7#,MX72,RX7#,YX70198408-198808

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iLX70,MX72,RX70,72,YX70198408-198808

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iLX70,RX71,72,73..GEN198408-198808

main47051-22040iLX7#,MX72..EUR198408-198608

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iGX71,LX7#,RX70..(GL,XL)..(CBR,DSL,EFI,TD)198408-198409

main47547-22020iGX71..ME,SA198409-198808

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iGX71..ME,SA198408-198808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19135iLX71198408-198409

sub47550-12060

main47550-19145iGX71,LX70,RX70..(GL,XL)..(GEN,ME)198408-198409

sub47550-14020

main47550-22060iLX70,RX71,72,73..GEN198409-198808

main47550-22070iLX7#,MX72..EUR198409-198608

sub47550-12060

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020iLX7#,MX72..EUR198408-198608

main47509-20010iLX70,RX71,73..GEN198408-198808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19135iLX71198408-198409

sub47550-12060

main47550-19145iGX71,LX70,RX70..(GL,XL)..(GEN,ME)198408-198409

sub47550-14020

main47550-22060iLX70,RX71,72,73..GEN198409-198808

main47550-22070iLX7#,MX72..EUR198409-198608

sub47550-12060

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iLX70,MX72,RX70,72,YX70198408-198808

main47601-14020iGX71..ME,SA198408-198808

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iLX7#,MX72,RX7#,YX70198408-198808

T=0.3,T=0.3

main90564-08151iGX71..ME,SA198408-198808

T=0.6,T=0.6

main90564-08152iGX71..ME,SA198408-198808

T=0.9,T=0.9

main90564-08172iLX7#,MX72,RX7#,YX70198408-198808

T=0.2,T=0.2

main90564-08173iGX71..ME,SA198408-198808

T=0.4,T=0.4

main90564-08174iGX71..ME,SA198408-198808

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iGX71..ME,SA198408-198808

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iLX70,MX72,RX70,72,YX70198408-198808

main47602-14020iGX71..ME,SA198408-198808

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-22020iLX70,RX70,YX70..CBR,DSL198408-198808

main47651-22030iLX70,MX72..EUR198411-198608

main47651-22040iLX70,RX72198709-198808

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-22020iLX70,RX7#,YX70198408-198808

main47651-22030iLX70,MX72..EUR198411-198608

main47651-22040iLX70,RX72198709-198808

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iGX71..ME,SA198408-198808

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iGX71..ME,SA198408-198808

9011906084

main90119-06084

9111171020

main91111-71020

9453101000

main94531-01000

32 parts on this diagram · 1 diagram in section
