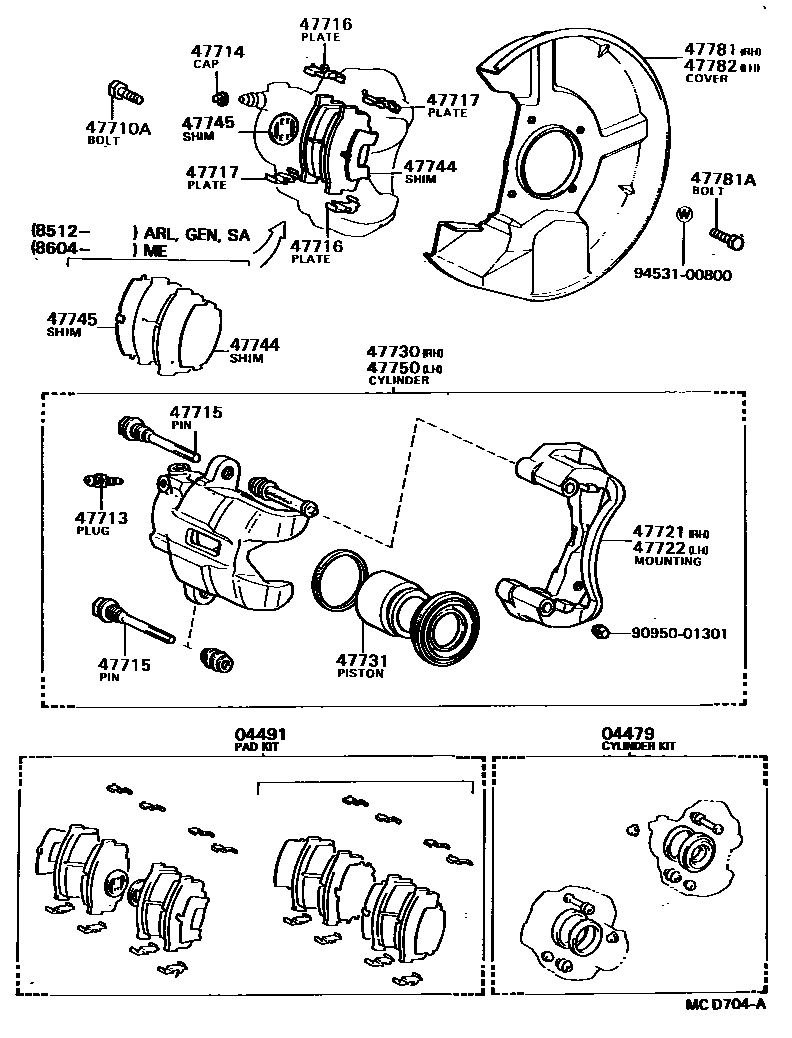

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14070iGX71,LX7#,MX7#..EUR198408-198608

main04479-22010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-14160iGX71,LX7#,MX7#..EUR198408-198608

sub04465-14190

main04491-22161iGX71,LX70,MX73,RX70,YX70..ARL,GEN,SA198408-198512

sub04491-22162

main04491-22162iLX70,RX72,YX70..GEN,SA198604-198808

sub04465-22140

main04491-22171iGX71,MX73,RX70..ME198508-198604

sub04491-22172

main04491-22200iGX71,LX70,MX73,RX70,YX70..ARL,GEN,SA198512-198604

sub04491-22162

main04491-22210iGX71,RX70,72..ME198604-198808

sub04465-22140

main04491-22230iMX73..RHD198701-198808

sub04465-22140

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

*12-1.25PX31-20

main90119-12080iGX71,LX7#,MX7#..EUR198408-198608

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

main47547-20010iGX71,LX7#,MX7#..EUR198408-198608

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-22010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14100iGX71,LX7#,MX7#..EUR198408-198608

main47716-22010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22050iGX71,LX70,RX70..(GL,XL)..(GEN,ME)198408-198808

main47721-22060iGX71,RX70..ME198408-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22030iRX72..SA198408-198808

main47722-22040iGX71,RX70..ME198408-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14140iGX71,LX7#,MX7#..EUR198408-198608

main47730-22150iGX71,RX70..(GL,XL)..(CBR,EFI)198408-198808

sub47730-22151

main47730-22160iMX73,RX72..ARL,GEN,ME,SA198408-198808

47731PISTON, FRONT DISC BRAKE

main47731-14090iGX71,LX7#,MX7#..EUR198408-198608

main47731-22010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14080iGX71,LX7#,MX7#..EUR198408-198608

main47744-22040iGX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA198408-198604

main47744-22070iYX70198512-198808

sub47744-22H00

main47744-22071iLX70,RX70,71..GEN198701-198808

main47744-22081iGX71,MX73..ARL,GEN198701-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-22050iGX71,MX73,RX70..ME198408-198604

main47745-22040iGX71,MX73,RX70,72..ME198512-198808

sub47744-22H00

sub47744-22H10

main47745-22041iGX71,LX70,MX73,RX70,71,73..ARL,GEN198701-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14150iGX71,LX7#,MX7#..EUR198408-198608

main47750-22150iLX70..GEN198408-198808

sub47750-22151

main47750-22160iGX71..GEN198408-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22090iGX71,LX7#,MX7#..EUR198408-198608

main47781-24010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22090iGX71,LX7#,MX7#..EUR198408-198608

main47782-24010iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

9095001301

main90950-01301

9453100800

main94531-00800

20 parts on this diagram · 3 diagrams in section
