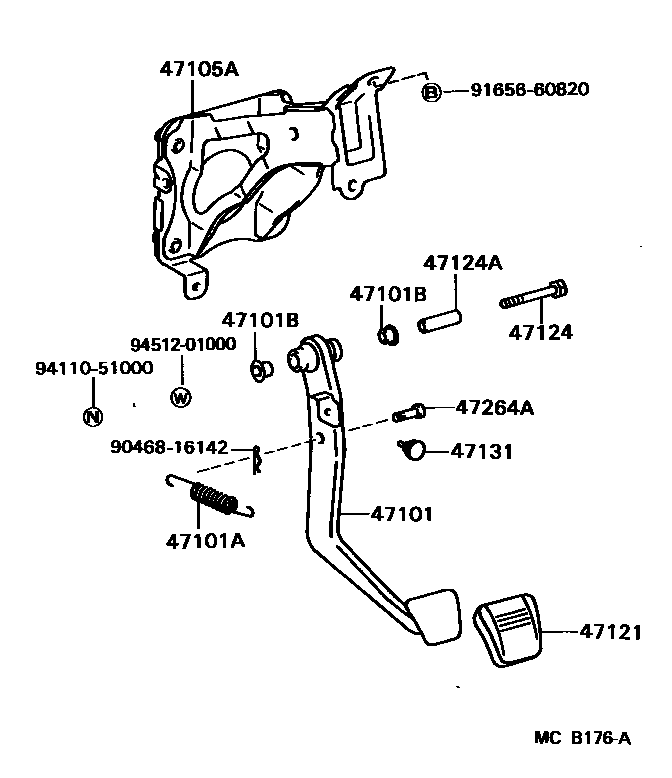

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-22240iGX71,MX73,RX70,72,YX70..RHD..5F198408-198808

main47101-22250iGX71,MX73,RX70..RHD..4FC198408-198607

main47101-22260iGX71,LX7#,MX73,RX7#..LHD..MTM198408-198808

main47101-22270iGX71,LX7#,MX7#,RX70..4FC198408-198607

main47101-22300iGX71,MX73,RX70,72..RHD..4FC198607-198808

main47101-22310iGX71,LX7#,MX7#,RX70,72..LHD..4FC198607-198808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGX71,LX7#,MX7#,RX7#,YX70198605-198808

main90386-13192iGX71,LX7#,MX7#,RX70,YX70198408-198605

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-22130iGX71,MX73,RX70,YX70..RHD198408-198708

main55106-22140iGX71,LX7#,MX7#,RX7#..LHD198408-198708

main55106-22141iGX71,LX70,RX7#..LHD198708-198808

main55106-22150iGX71,MX73,RX72,YX70..RHD198708-198808

47121PAD, BRAKE PEDAL

main31321-14020iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

main47121-14010iGX71,LX7#,MX7#,RX70,72..4FC198607-198808

main47121-22020iGX71,LX7#,MX7#,RX70..4FC198408-198607

47124SHAFT, BRAKE PEDAL

main90101-10039iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGX71,LX7#,MX7#,RX7#,YX70198408-198808

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iGX71,LX7#,MX7#,RX70,YX70198408-198605

main90541-06032iGX71,LX7#,MX7#,RX7#,YX70198605-198808

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-10064iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9046816142

main90468-16142

9165660820

main91656-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
