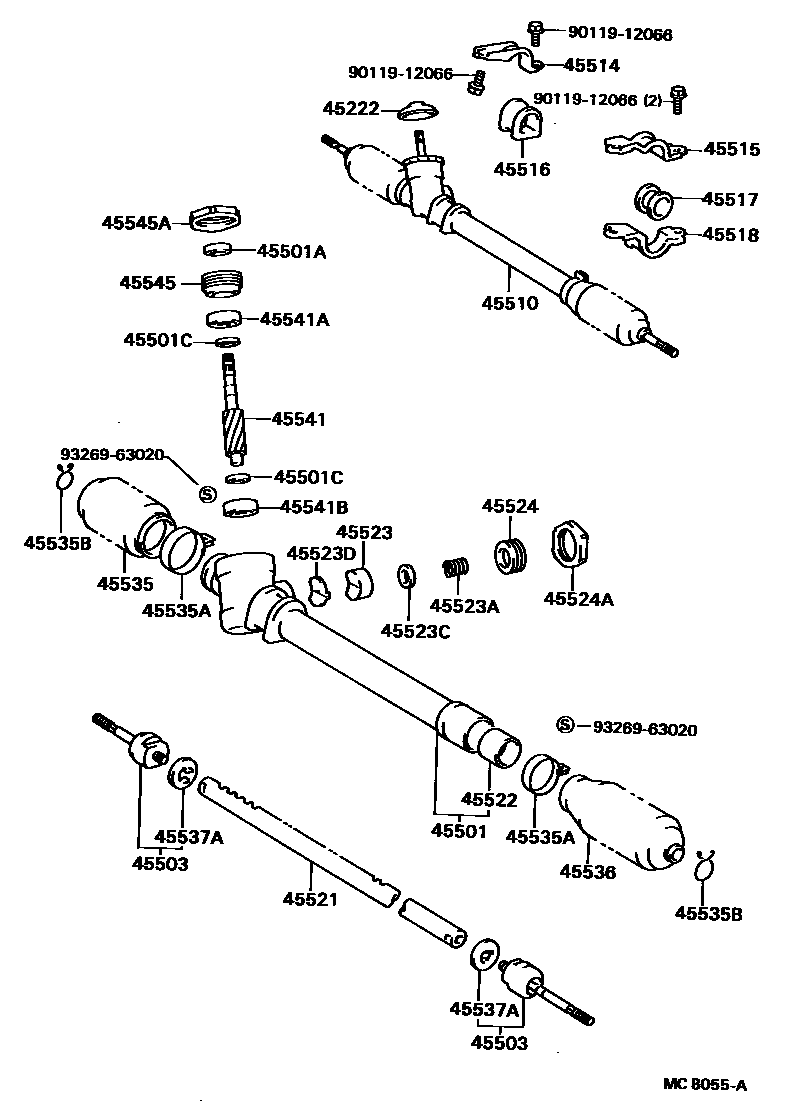

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45222COVER, STEERING GEAR DUST

main45222-20010iRX70,72,YX70..STD,XL¥790198408-198808

45501HOUSING SUB-ASSY, STEERING RACK

main45501-22030iRX70,72,YX70..RHD..(STD,XL)¥13,300198408-198808

main45501-22040iRX70,72..LHD..XL¥13,500198408-198808

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iRX70,72,YX70..STD,XL¥190198408-198808

sub90311-15002¥190

45501CSPACER(FOR STEERING RACK HOUSING)

main90560-15005iRX70,72,YX70..STD,XL¥590198408-198808

45503END SUB-ASSY, STEERING RACK

main45503-29065iRX70,72,YX70..STD,XL¥5,400198408-198808

45510GEAR ASSY, STEERING

main45510-22030iRX70,72,YX70..RHD..(STD,XL)¥46,800198408-198808

main45510-22040iRX70,72..LHD..XL¥47,100198408-198808

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-22030iRX70,YX70..RHD..(STD,XL)¥980198408-198808

main45514-22040iMX73..RHD¥1,410198408-198808

main45514-22050iRX70,72..RHD¥1,290198408-198808

W/POWER STEERING

main45514-22060iLX7#,RX7#..LHD¥1,070198408-198808

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22030iGX71,MX73..RHD¥760198408-198808

main45515-22040iRX70,72,YX70..RHD..(STD,XL)¥760198408-198808

main45515-22050iGX71,MX7#..LHD¥1,120198408-198808

W/POWER STEERING

main45515-22060iLX7#,RX7#..LHD¥1,000198408-198808

W/POWER STEERING

main45515-22070iRX70,72..LHD..XL198408-198808

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-22010iGX71,LX7#,MX7#,RX7#,YX70¥870198408-198808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22010iRX70,72,YX70..STD,XL¥800198408-198808

main45517-22020iGX71,LX7#,MX7#,RX7#¥870198408-198808

W/POWER STEERING

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-22010iRX70,72,YX70..STD,XL¥760198408-198808

45521RACK, STEERING

main45521-22030iRX70,72..LHD..XL¥35,400198408-198805

sub45521-22031¥35,200

sub45522-22011¥2,140

main45521-22031iRX72,YX70..RHD..(STD,XL)¥35,200198805-198808

main45521-22040iRX70,72..LHD..XL¥35,400198408-198805

sub45521-22041¥35,400

sub45522-22011¥2,140

main45521-22041iRX72..LHD..XL¥35,400198805-198808

45522BUSH, STEERING RACK

main45522-22010iRX70,72,YX70..STD,XL¥2,160198408-198808

sub45522-22011¥2,140

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-22020iRX70,72,YX70..STD,XL¥1,670198408-198808

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-32015iRX70,72,YX70..STD,XL¥300198408-198808

45523CSPACER(FOR RACK GUIDE)

main90560-23007iRX70,72,YX70..STD,XL¥580198408-198808

45523DSEAT, RACK GUIDE

main44277-20030iRX70,72,YX70..STD,XL¥640198408-198808

45524CAP, STEERING RACK GUIDE SPRING

main45524-22010iRX70,72,YX70..STD,XL¥1,020198408-198808

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iRX70,72,YX70..STD,XL¥350198408-198808

45535BOOT, STEERING RACK, NO.1

main45535-22020iRX70,72,YX70..STD,XL¥2,600198408-198808

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10273iRX70,72,YX70..STD,XL¥310198408-198808

ID=41.5

main90461-10524iRX70,72,YX70..STD,XL¥580198408-198808

ID=61.5

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iRX70,72,YX70..STD,XL¥120198408-198808

45536BOOT, STEERING RACK, NO.2

main45536-22020iRX70,72,YX70..STD,XL¥3,170198408-198808

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14005iRX70,72,YX70..STD,XL¥220198408-198808

45541PINION, STEERING

main45541-22030iRX70,72,YX70..RHD..(STD,XL)¥3,890198408-198808

main45541-22040iRX70,72..LHD..XL¥3,920198408-198808

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15006iRX70,72,YX70..STD,XL¥2,290198408-198808

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-15005iRX70,72,YX70..STD,XL¥2,080198408-198808

45545SCREW, PINION BEARING ADJUSTING

main45545-22020iRX70,72,YX70..STD,XL¥1,290198408-198808

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-42001iRX70,72,YX70..STD,XL¥580198408-198808

9011912066

main90119-12066¥210

9326963020

main93269-63020¥110

31 parts on this diagram · 6 diagrams in section
