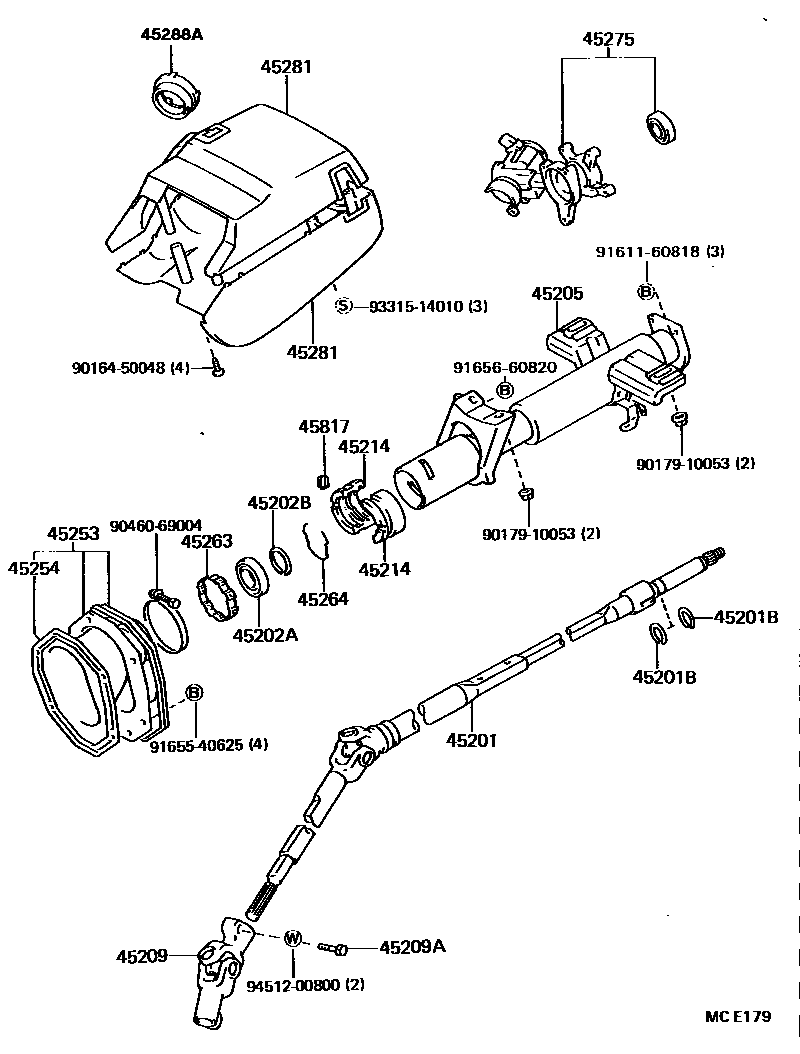

STEERING COLUMN & SHAFT

0001 1 0002 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22120iGX71,LX7#,MX7#,RX7#,YX70198408-198808

W/TILT STEERING

sub45210-22050

main45210-22130iRX70,YX70..RHD..(STD,XL)198408-198808

main45210-22140iRX70,72..LHD..XL198408-198808

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iGX71,LX7#,MX7#,RX7#,YX70198408-198808

T=1.20,T=1.2

main90520-17196iRX70,72,YX70..STD,XL198408-198808

T=1.35-1.45,T=1.4

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45220-22080iRX70,72,YX70..RHD..(STD,XL)198408-198808

main45220-22100iRX70,72..LHD..XL198408-198808

main45220-22110iGX71,LX7#,MX7#,RX70..LHD198408-198601

W/POWER STEERING

sub45220-22150

main45220-22130iGX71,MX73,RX70,72..RHD198408-198808

W/POWER STEERING

main45220-22150iGX71,LX7#,MX7#,RX7#..LHD198601-198808

W/POWER STEERING

45202ABEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT)

main90363-30007iGX71,LX7#,MX7#,RX7#,YX70198408-198808

45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

main96152-00300iGX71,LX7#,MX7#,RX7#,YX70198408-198808

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-22160iGX71,MX73,RX70,72,YX70..RHD198408-198808

W/TILT STEERING

main45870-22170iRX70,YX70..RHD..(STD,XL)198408-198808

main45870-22190iGX71,LX7#,MX7#,RX7#..LHD198408-198808

W/TILT STEERING

main45870-22200iRX70,72..LHD..XL198408-198808

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14060iRX70,72..LHD..XL198408-198808

main45209-32010iRX70,72,YX70..RHD..(STD,XL)198408-198808

sub45209-10020

main45209-32020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

W/TILT STEERING

sub45209-16010

45209ABOLT, HEXAGON(FOR STEERING SLIDING YOKE SET)

main90101-08070iGX71,LX7#,MX7#,RX7#,YX70198408-198808

sub90119-08560

45214RETAINER, MAIN SHAFT SPRING

main45214-32010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

45253COVER, STEERING COLUMN HOLE

main45025-22070iGX71,MX73,RX70,72,YX70..RHD198408-198808

main45025-22080iGX71,LX7#,MX7#,RX7#..LHD198408-198808

45254SHIELD, STEERING COLUMN HOLE

main45254-22050iGX71,MX73,RX70,72,YX70..RHD198408-198808

main45254-22060iGX71,LX7#,MX7#,RX7#..LHD198408-198808

45263RING, STEERING COLUMN, NO.1

main45263-32010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

45264RING, STEERING COLUMN, NO.2

main45264-32010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

45275BRACKET, STEERING COLUMN, UPPER

main45280-22290iGX71,MX73..RHD..(ARL,GEN,SA)198408-198608

W/POWER WINDOW

main45280-22291iRX70..RHD..GL198608-198808

W/POWER WINDOW

main45280-22300iRX70,YX70..RHD..(STD,XL)198408-198608

main45280-22301iRX70..RHD..XL198608-198808

sub45280-22302

main45280-22310iRX70..LHD..XL198408-198608

main45280-22311iRX70,72..LHD..XL198608-198808

main45280-22320iGX71..ME198408-198608

W/POWER WINDOW

main45280-22320iMX73..ME198411-198608

main45280-22321iGX71..LHD198608-198808

W/POWER WINDOW

main45280-22330iMX73,RX70..RHD..(EUR,GEN)198408-198608

W/TILT STEERING

sub45280-22290

main45280-22331iRX70..RHD..GEN198608-198808

W/TILT STEERING

sub45280-22291

main45280-22331iRX72..RHD..GL198705-198808

sub45280-22291

main45280-22340iLX70,RX70..(SED,WG)..LHD198408-198608

W/TILT STEERING

sub45280-22320

main45280-22340iRX70..WG..GL198411-198608

sub45280-22320

main45280-22341iRX72..XL198608-198808

W/TILT STEERING

sub45280-22321

45281HOUSING, STEERING COLUMN

main45286-22400-02iGX71,MX73,RX70,72,YX70..SA198408-198808

UPR,MAROON,MAROON

sub45286-22400

main45286-22400-03iGX71,MX73,RX70,72,YX70..SA198408-198808

UPR,GRAY,COOL GRAY

sub45286-22400

main45286-22400-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

UPR,BLUE,DARK BLUE

sub45286-22400

main45286-22400-05iGX71,MX73,RX70,72,YX70..SA198408-198808

UPR,BEIGE,BEIGE

sub45286-22400

main45286-22400-12iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

UPR,MAROON,MAROON

sub45286-22400

main45286-22400-15iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

UPR,BEIGE,BEIGE

sub45286-22400

main45286-22420-02iGX71,LX7#,MX7#,RX70..LHD198408-198608

UPR,MAROON,MAROON

sub45286-22420

sub45286-22410

main45286-22420-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

UPR,GRAY,COOL GRAY

sub45286-22420

sub45286-22410

main45286-22420-04iGX71,LX70,MX73,RX7#..LHD198608-198808

UPR,BLUE,DARK BLUE

sub45286-22420

sub45286-22410

main45286-22420-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

UPR,BEIGE,BEIGE

sub45286-22420

sub45286-22410

main45286-22420-12iGX71,LX70,MX73,RX7#..LHD198608-198808

UPR,MAROON,MAROON

sub45286-22420

sub45286-22410

main45286-22420-15iGX71,LX70,MX73,RX7#..LHD198608-198808

UPR,BEIGE,BEIGE

sub45286-22420

sub45286-22410

main45287-22310-02iGX71,MX73,RX70,YX70..SA198408-198808

LWR,MAROON,W/TILT STEERING,MAROON

sub45287-22310

main45287-22310-03iGX71,MX73,RX70,YX70..RHD198408-198808

LWR,GRAY,W/TILT STEERING,COOL GRAY

sub45287-22310

main45287-22310-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

LWR,BLUE,W/TILT STEERING,DARK BLUE

sub45287-22310

main45287-22310-05iGX71,MX73,RX70,72,YX70..SA198408-198808

LWR,BEIGE,W/TILT STEERING,BEIGE

sub45287-22310

main45287-22310-12iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

LWR,MAROON,W/TILT STEERING,MAROON

sub45287-22310

main45287-22310-15iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

LWR,BEIGE,W/TILT STEERING,BEIGE

sub45287-22310

main45287-22320-02iRX70,YX70..SA198408-198808

LWR,MAROON,MAROON

sub45287-22320

main45287-22320-03iRX70,YX70..RHD..(STD,XL)198408-198808

LWR,GRAY,COOL GRAY

sub45287-22320

main45287-22320-04iRX72..RHD..GEN198608-198808

LWR,BLUE,DARK BLUE

sub45287-22320

main45287-22320-05iRX70,YX70..SA198408-198808

LWR,BEIGE,BEIGE

sub45287-22320

main45287-22320-12iRX70..RHD..XL198608-198808

LWR,MAROON,MAROON

sub45287-22320

main45287-22320-15iRX72..RHD..GEN198608-198808

LWR,BEIGE,BEIGE

sub45287-22320

main45287-22340-02iGX71,LX7#,MX7#,RX70..LHD198408-198608

LWR,MAROON,W/TILT STEERING,MAROON

sub45287-22340

sub45287-22330

main45287-22340-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

LWR,GRAY,W/TILT STEERING,COOL GRAY

sub45287-22340

sub45287-22330

main45287-22340-04iGX71,LX70,MX73,RX7#..LHD198608-198808

LWR,BLUE,W/TILT STEERING,DARK BLUE

sub45287-22340

sub45287-22330

main45287-22340-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

LWR,BEIGE,W/TILT STEERING,BEIGE

sub45287-22340

sub45287-22330

main45287-22340-12iGX71,LX70,MX73,RX7#..LHD198608-198808

LWR,MAROON,W/TILT STEERING,MAROON

sub45287-22340

sub45287-22330

main45287-22340-15iGX71,LX70,MX73,RX7#..LHD198608-198808

LWR,BEIGE,W/TILT STEERING,BEIGE

sub45287-22340

sub45287-22330

main45287-22350-02iRX70..LHD..XL198408-198608

LWR,MAROON,MAROON

sub45287-22350

main45287-22350-03iRX70..LHD..XL198408-198608

LWR,GRAY,COOL GRAY

sub45287-22350

main45287-22350-04iRX70,72..LHD..XL198608-198808

LWR,BLUE,DARK BLUE

sub45287-22350

main45287-22350-05iRX70..LHD..XL198408-198608

LWR,BEIGE,BEIGE

sub45287-22350

main45287-22350-12iRX70,72..LHD..XL198608-198808

LWR,MAROON,MAROON

sub45287-22350

main45287-22350-15iRX70,72..LHD..XL198608-198808

LWR,BEIGE,BEIGE

sub45287-22350

45288ASPACER, COLUMN COVER

main45288-22010-02iGX71,LX7#,MX7#,RX70..LHD198408-198608

MAROON,MAROON

sub45288-22010

main45288-22010-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

GRAY,COOL GRAY

sub45288-22010

main45288-22010-04iGX71,LX70,MX73,RX7#..LHD198608-198808

BLUE,DARK BLUE

sub45288-22010

main45288-22010-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

BEIGE,BEIGE

sub45288-22010

main45288-22010-12iGX71,LX70,MX73,RX7#..LHD198608-198808

MAROON,MAROON

sub45288-22010

main45288-22010-15iGX71,LX70,MX73,RX7#..LHD198608-198808

BEIGE,BEIGE

sub45288-22010

main45288-30010iYX70198502-198808

45817STOPPER, STEERING SHAFT THRUST

main45817-32010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9016450048

main90164-50048

9017910053

main90179-10053

9046069004

main90460-69004

9161160818

main91611-60818

9165540625

main91655-40625

9165660820

main91656-60820

9331514010

main93315-14010

9451200800

main94512-00800

25 parts on this diagram · 2 diagrams in section
