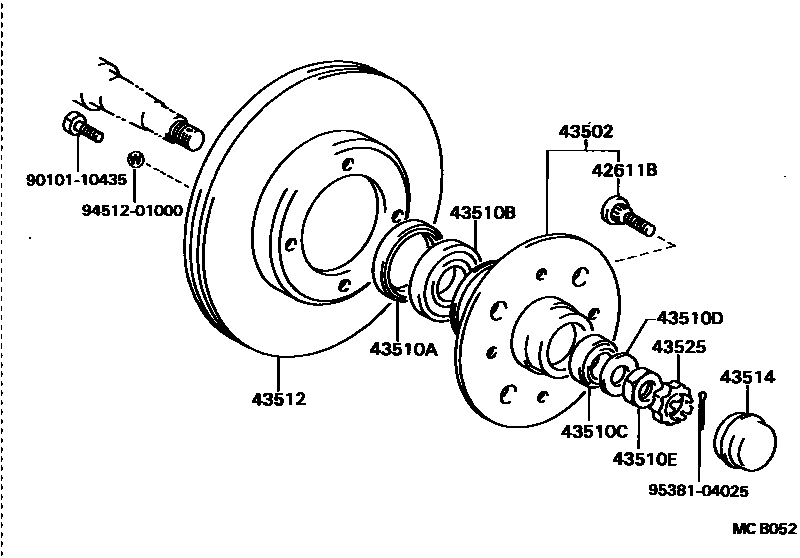

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43502HUB SUB-ASSY, FRONT AXLE

main43502-22040iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43512DISC, FRONT

main43512-22070iGX71,YX70..SA198408-198808

main43512-22080iGX71..GEN198408-198808

main43512-22090iGX71,LX7#,MX7#..EUR198408-198608

43514CAP, FRONT HUB GREASE

main43514-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section
