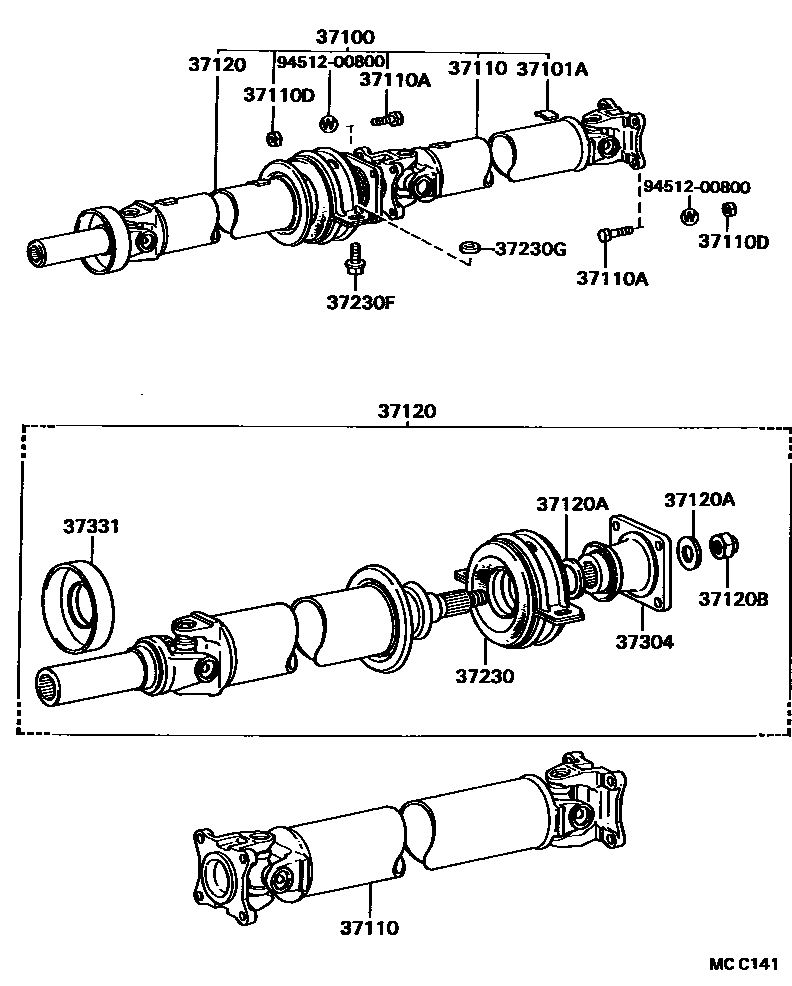

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
S.ARABIA TAXI SPEC
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,10G
20G,L=41.4,20G
30G,L=62.2,30G
2G,T=2.0,2G
4G,T=2.0,4G
6G,L=12.4,6G
8G,L=16.6,8G
12G,L=24.9,12G
14G,L=29.0,14G
16G,L=33.2,16G
18G,L=37.3,18G
22G,L=45.6,22G
24G,L=49.7,24G
26G,L=53.9,26G
28G,L=58.1,28G
3G,3G
5G,5G
7G,L=14.4,7G
9G,L=18.5,9G
37110SHAFT ASSY, PROPELLER
S.ARABIA TAXI SPEC
37110ABOLT (FOR PROPELLER SHAFT)
*8-1.25PX25-12
15G
17G
19G
*10-1.00PX27-13,S.ARABIA TAXI SPEC
37110DNUT (FOR PROPELLER SHAFT)
S.ARABIA TAXI SPEC
37120SHAFT ASSY, PROPELLER INTERMEDIATE
S.ARABIA TAXI SPEC
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
OD=33.5,T=4.0,T=4,OD=33.5
OD=36.6,T=0.8,T=0.8,OD=36.6
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
S.ARABIA TAXI SPEC
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5,T=4.5
T=9.0,T=9.0
T=6.5,T=6.5
T=11.0,T=11.0
T=13.5,T=13.5
37331COVER, SLIDING SHAFT DUST
9451200800
main94512-00800
14 parts on this diagram · 4 diagrams in section
