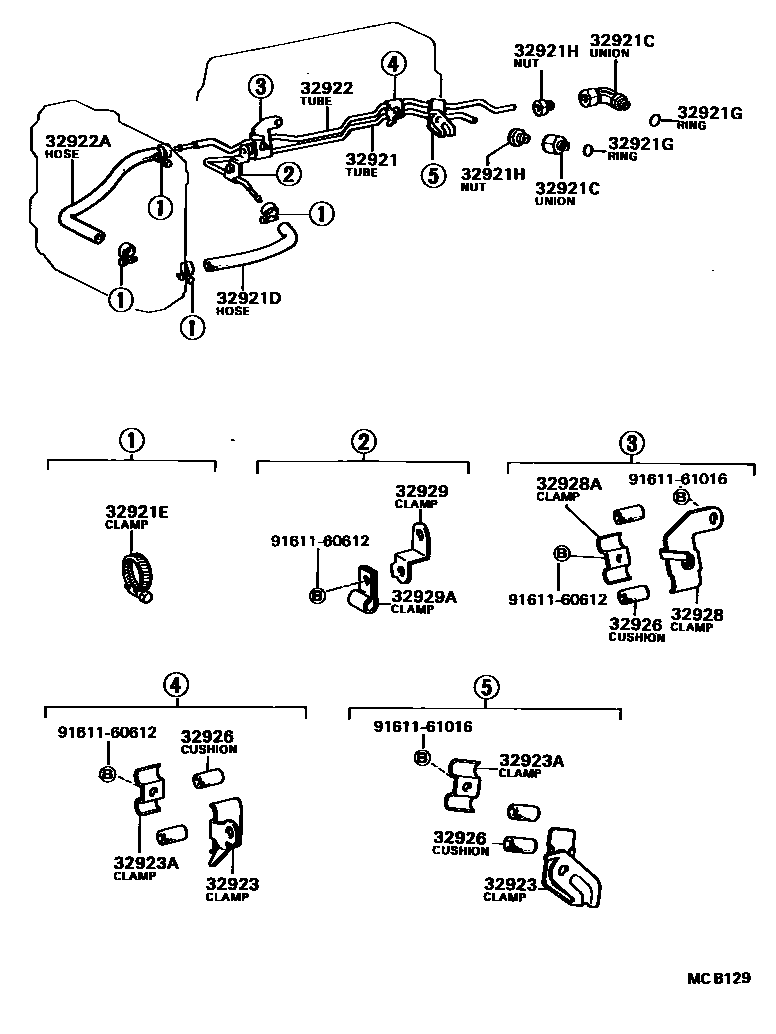

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22310iRX70..4FC198408-198705

main32921-22320iGX71..4FC198408-198808

sub32921-22321

main32921-22330iMX7#..4FC198408-198808

main32921-22340iLX7#..4FC198408-198608

main32921-22450iRX70..4FC..GEN198608-198705

main32921-22460iLX70..4FC198608-198808

main32921-22480iRX72..4FC..ME198608-198808

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

FR

main90407-14003iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-22040iGX71..4FC..SA198408-198808

main32941-22060iMX73..4FC..ME198504-198608

main32941-22110iMX73..4FC..(ARL,GEN)198608-198808

sub32941-22111

main32941-22130iMX73..4FC..ME198608-198808

sub32941-30060

main32942-22010iRX70..4FC..SA198408-198705

main32942-22060iRX70,72..4FC..(GEN,ME)198608-198808

sub32942-22061

main90445-14234iLX7#..4FC198408-198608

sub90445-14514

main90445-15013iLX70..4FC198608-198808

sub90445-15016

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iRX70..4FC..SA198408-198808

sub90460-20004

main90460-18002iGX71,MX7#..4FC198408-198808

main90467-13039iGX71,MX73..4FC..(ARL,GEN,ME)198608-198808

sub96135-51300

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22330iRX70..4FC198408-198705

main32922-22340iGX71..4FC198408-198808

main32922-22350iMX7#..4FC198408-198808

main32922-22360iLX7#..4FC198408-198608

main32922-22470iRX70..4FC..GEN198608-198705

main32922-22480iLX70..4FC198608-198808

main32922-22500iRX72..4FC198608-198808

sub32922-22501

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22070iRX72..4FC198608-198808

sub32941-22071

main32941-30020iLX7#,RX70..4FC198408-198705

main32942-22040iMX7#..4FC198408-198808

main32942-22050iGX71..4FC198408-198808

main32942-22100iGX71..4FC..GEN198608-198808

sub32942-22101

main32942-22120iMX73..4FC..(ARL,GEN,ME)198608-198808

main90445-15012iRX70..4FC..GEN198608-198705

sub90445-15049

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-22020iRX70,72..4FC..(GEN,ME)198408-198808

HOUSING FR SIDE

main32923-22030iRX70..4FC198408-198705

HOUSING RR SIDE

main32923-22040iLX7#..4FC198408-198808

sub32923-22041

main32923-30080iMX73..ARL198408-198808

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32924-28010iLX7#..4FC198408-198808

main90462-12085iRX70,72..4FC..(GEN,ME)198408-198808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX71,LX7#,RX70,72..4FC198408-198808

L=35,ID=8

main32926-22020iMX7#..4FC198408-198808

L=40,ID=8

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-41010iMX7#..4FC198408-198808

main32928-20070iRX70..4FC..ME198508-198608

W/COOLER

main32928-20071iRX70..4FC198408-198808

main32928-22050iLX7#..4FC198408-198808

sub32928-22051

main32928-22070iRX70..4FC..GEN198608-198808

main32928-24010iGX71..4FC198408-198808

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32929-22040iMX73..4FC..(ARL,GEN)198608-198808

main90462-12085iGX71,LX7#,RX70,72..4FC198408-198808

main90949-01187iMX7#..4FC198408-198808

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-20070iRX70,72..4FC198408-198808

main32929-22020iLX7#..4FC198408-198808

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32924-28010iLX7#..4FC198408-198808

main90461-06033iRX70,72..4FC198408-198808

9161160612

main91611-60612

9161161016

main91611-61016

17 parts on this diagram · 6 diagrams in section
