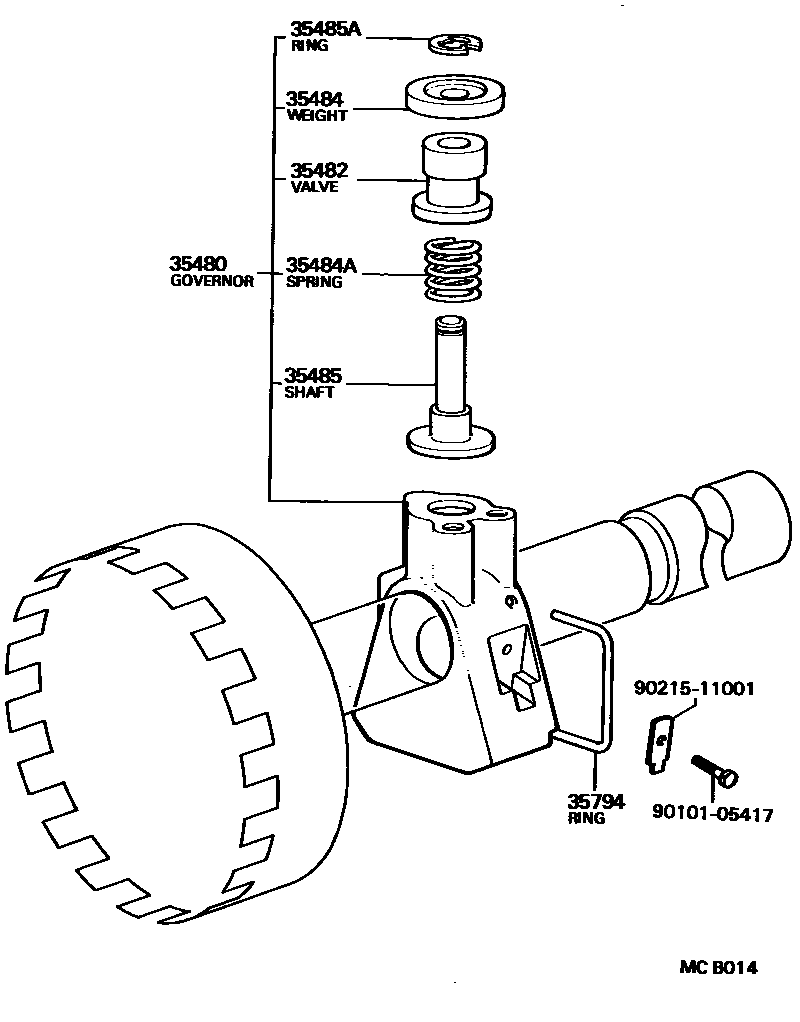

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-30060iMX73..4FC..EFI198408-198808

main35480-30080iLX7#..4FC198408-198808

35482VALVE, GOVERNOR

main35482-20010iLX7#..4FC198408-198808

main35482-22010iGX71,MX72,RX70,72..4FC198408-198808

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iLX7#..4FC198408-198808

main35484-22010iMX73..4FC..EFI198408-198808

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09030iLX7#..4FC198408-198808

main90501-09673iMX73..4FC..EFI198408-198808

35485SHAFT, GOVERNOR VALVE

main35485-22010iMX73..4FC..EFI198408-198808

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iMX73..4FC..EFI198408-198808

35794RING, GOVERNOR RETAINING

main35794-22010iMX73..4FC..EFI198408-198808

9010105417

main90101-05417

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
