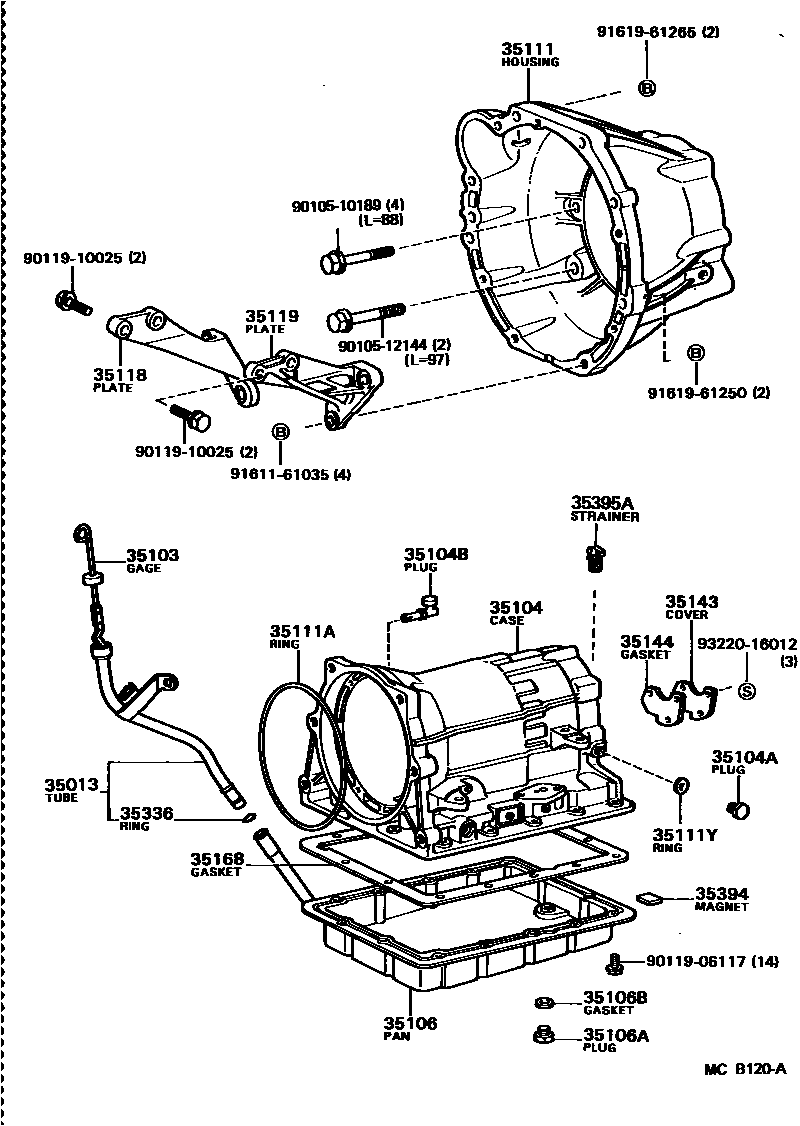

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14091iRX70..4FC198408-198608

main35013-22150iMX73..ARL198408-198508

main35013-22160iGX71..4FC198408-198808

main35013-22180iRX72..4FC198608-198808

main35013-30080iLX7#..4FC198408-198808

main35013-30100iMX7#..4FC..(EUR,GEN,ME,SA)198408-198808

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20081iRX70..4FC198408-198705

main35103-30101iLX7#..4FC198408-198808

main35103-30121iMX7#..4FC..(EUR,GEN,ME,SA)198408-198808

main35103-30131iMX73..ARL198408-198808

main35103-35060iRX72..4FC198608-198808

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26020iMX73..4FC..EFI198408-198410

sub35104-26030

main35104-26021iRX72..4FC198410-198808

main35104-26030iMX73..4FC..SWZ198410-198808

main35104-30082iRX70..4FC198408-198410

sub35104-30140

main35104-30083iRX70..4FC..GEN198608-198705

main35104-30100iMX73..4FC..EUG198408-198410

sub35104-30150

main35104-30101iMX73..TWC..(ARL,GEN)198608-198808

main35104-30140iRX70..4FC..SA198410-198808

main35104-30150iMX73..4FC..SA198410-198808

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iGX71,LX7#,MX7#,RX70..4FC198408-198608

main90930-03108iGX71,LX70,MX73,RX70,72..4FC198608-198808

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22031iRX70..4FC198408-198705

main35106-30040iLX7#..4FC198408-198808

sub35106-30041

main35106-30050iMX73..ARL198408-198808

sub35106-30051

main35106-30060iMX7#,RX72..4FC..(EUR,GEN,ME,SA)198408-198808

sub35106-30061

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14070iMX7#..4FC198408-198808

main35111-20071iRX70..4FC198408-198705

main35111-22060iLX7#..4FC198408-198808

sub35111-26030

main35111-24010iGX71..4FC198408-198808

main35111-35022iRX72..4FC198608-198808

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iGX71,LX7#,MX7#,RX70,72..4FC198408-198708

sub90301-99054

main90301-99054iGX71,LX70,MX73,RX72..4FC198708-198808

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

35118PLATE, STIFENER, RH (ATM)

main33118-22030iRX70,72..4FC198408-198808

main33118-22040iMX7#..4FC198408-198605

main33118-22050iGX71..4FC198408-198604

sub33118-22051

main33118-22051iGX71..4FC198604-198808

main33118-22060iMX7#..4FC198605-198808

main33118-25020iLX7#..4FC198408-198808

35119PLATE, STIFENER, LH (ATM)

main33119-22021iRX70,72..4FC198408-198808

sub33119-22022

main33119-22030iMX7#..4FC198408-198808

main33119-22041iGX71..4FC198408-198604

sub33119-22042

main33119-22042iGX71..4FC198604-198808

main33119-25020iLX7#..4FC198408-198808

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

35395ASTRAINER, GOVERNOR OIL

main35395-40010iMX73..4FC..ME198408-198808

9010510189

main90105-10189

9010512144

main90105-12144

9011906117

main90119-06117

9011910025

main90119-10025

9161161035

main91611-61035

9161961250

main91619-61250

9161961265

main91619-61265

9322016012

main93220-16012

27 parts on this diagram · 5 diagrams in section
