SHIFT LEVER & RETAINER

0001 1 0002 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14060-15iRX70..4F198408-198608

BEIGE,BEIGE

sub33504-14040

main33504-14060-22iRX70..4F198408-198608

MAROON,MAROON

sub33504-14040

main33504-14060-33iRX70..4F198408-198608

GRAY,COOL GRAY

sub33504-14040

main33504-24010-25iGX71,RX70,YX70..5F..SA198502-198605

BEIGE,BEIGE

main33504-24010-32iGX71,LX7#,MX73,RX70..5F..(EUR,GEN,ME)198408-198608

MAROON,MAROON

main33504-24010-40iGX71,LX7#,MX73,RX70..5F..(EUR,GEN,ME)198605-198608

BEIGE,BEIGE

main33504-24010-52iGX71,LX70,MX73,RX70,71,72..5F198608-198808

MAROON,MAROON

main33504-24010-53iGX71,LX7#,MX73,RX70..5F..(EUR,GEN,ME)198408-198608

GRAY,COOL GRAY

main33504-24010-54iGX71,LX70,MX73,RX70,71,72..5F198608-198808

BLUE,DARK BLUE

main33504-24010-55iGX71,LX70,MX73,RX70,71,72..5F198608-198808

BEIGE,DARK BEIGE

main33504-24020-15iMX73..5F..SA198608-198808

LEATHER,BEIGE,BEIGE

sub33504-22140

main33504-24020-22iMX73..5F..(GLX,GTX)..(ME,SA)198502-198608

LEATHER,MAROON,MAROON

sub33504-22140

main33504-24020-23iMX73..5F..SA198608-198808

LEATHER,GRAY,COOL GRAY

sub33504-22140

main33504-24020-24iMX73..5F..GTX198608-198808

LEATHER,BLUE,DARK BLUE

sub33504-22140

main33504-24020-25iMX73..5F..GTX198608-198808

LEATHER,BEIGE,BEIGE

sub33504-22140

main33504-24020-42iMX73..5F..GTX198608-198808

LEATHER,MAROON,MAROON

sub33504-22140

main33542-30130-03iGX71,MX73,RX70..5F..SA198608-198808

GRAY,COOL GRAY

main33542-30130-12iGX71,MX73,RX70..5F..SA198608-198808

MAROON,MAROON

main33542-30130-15iGX71,MX73,RX70..RHD..4FC198408-198608

BEIGE,BEIGE

main33542-30130-22iGX71,MX73,RX70,72..RHD..4FC..(ARL,GEN)198608-198808

MAROON,MAROON

main33542-30130-24iGX71,MX73,RX70,72..RHD..4FC..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main33542-30130-25iGX71,MX73,RX70,72..RHD..4FC..(ARL,GEN)198608-198808

BEIGE,BEIGE

main33542-30150-03iGX71,LX7#,MX73,RX70..LHD..4FC198408-198608

GRAY,COOL

main33542-30150-12iGX71,LX7#,MX73,RX70..LHD..4FC198408-198608

MAROON,MAROON

main33542-30150-15iMX72198411-198608

BEIGE,BEIGE

main33542-30150-22iGX71,LX70,MX73,RX70,72..LHD..4FC198608-198808

MAROON,MAROON

main33542-30150-24iGX71,LX70,MX73,RX70,72..LHD..4FC198608-198808

BLUE,DARK BLUE

main33542-30150-25iGX71,LX70,MX73,RX70,72..LHD..4FC198608-198808

BEIGE,BEIGE

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-22070iGX71,MX73,RX7#..MTM198408-198808

sub33570-30010

main33570-22080iLX7#,YX70..5F198408-198808

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-22180iGX71,MX73..RHD..5F198408-198808

sub33530-22181

main33530-22190iGX71,MX73..LHD..5F198408-198808

sub33530-22191

main33530-22210iRX70,72..RHD..5F198408-198808

main33530-22220iRX7#..LHD..MTM198408-198808

main33530-22230iYX70198502-198808

main33530-22240iLX7#..5F198408-198808

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33555BOOT, SHIFT LEVER

main33555-22050iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

main33555-22070iGX71,LX7#,MX7#,RX70,72..4FC198408-198808

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

9161160825

main91611-60825

9338116012

main93381-16012

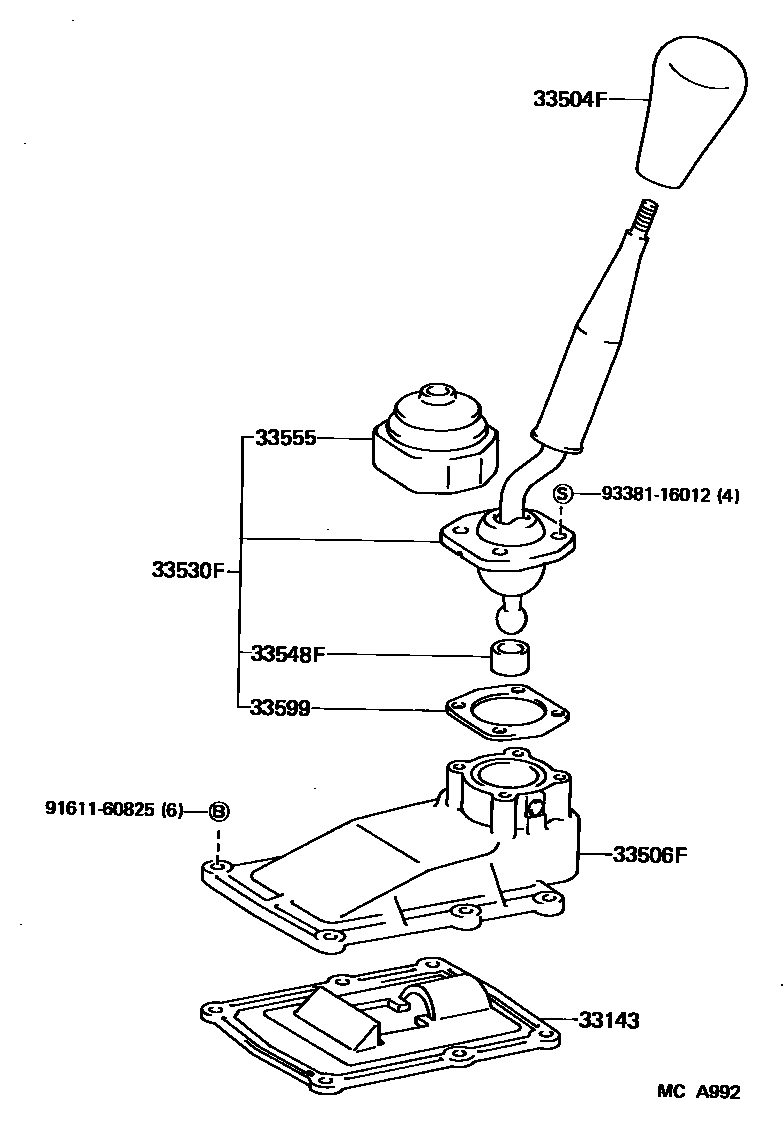

9 parts on this diagram · 2 diagrams in section
