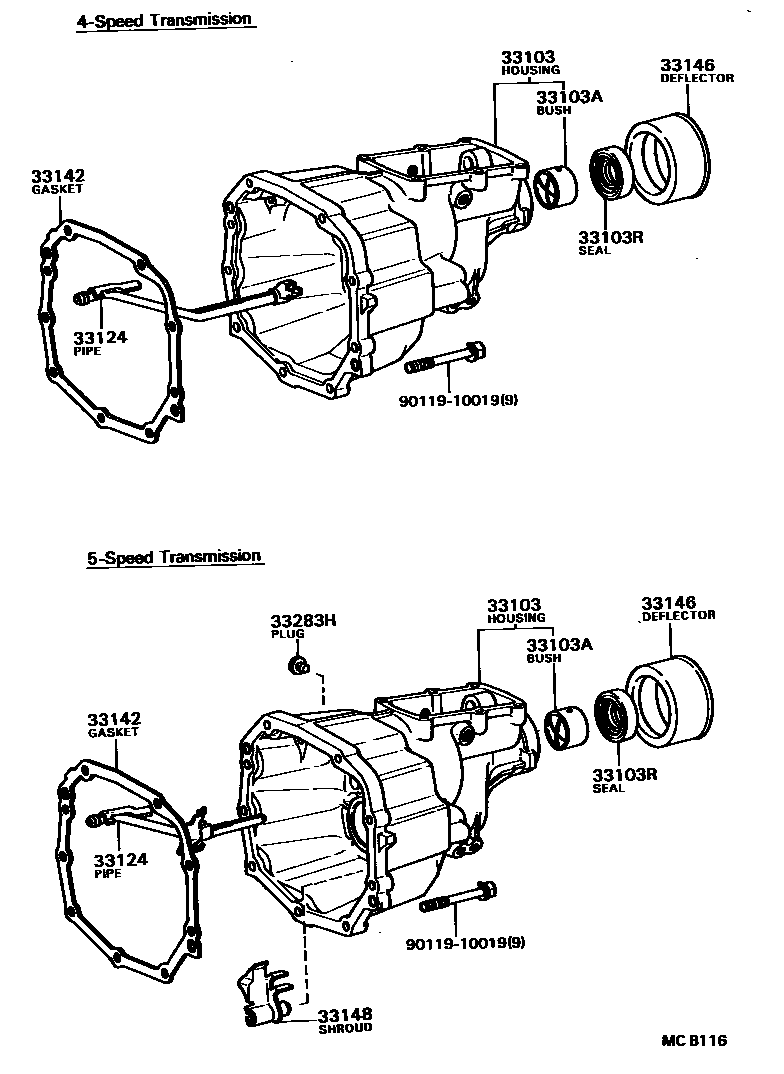

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-22090iGX71,LX7#,MX73,RX7#,YX70..5F198408-198808

sub33103-22091

main33103-22100iRX70..4F198408-198608

sub33103-22101

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iGX71,LX7#,MX73,RX70,YX70..MTM198408-198608

sub90999-73139

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38040iGX71,LX70,MX73,RX7#,YX70..5F198609-198808

sub90311-38030

main90311-38043iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198609

sub90311-38040

33124PIPE, OIL RECEIVER(MTM)

main33106-22010iGX71,LX7#,MX73,RX7#,YX70..5F198408-198808

sub33106-35030

main33106-22020iRX70..4F198408-198608

33142GASKET, EXTENSION HOUSING(MTM)

main33142-22010iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

sub33146-30020

33148SHROUD, GEAR, NO.1

main33148-22010iGX71,LX7#,MX73,RX7#,YX70..5F198408-198808

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iGX71,LX7#,MX73,RX7#,YX70..5F198408-198808

9011910019

main90119-10019

9 parts on this diagram · 1 diagram in section
