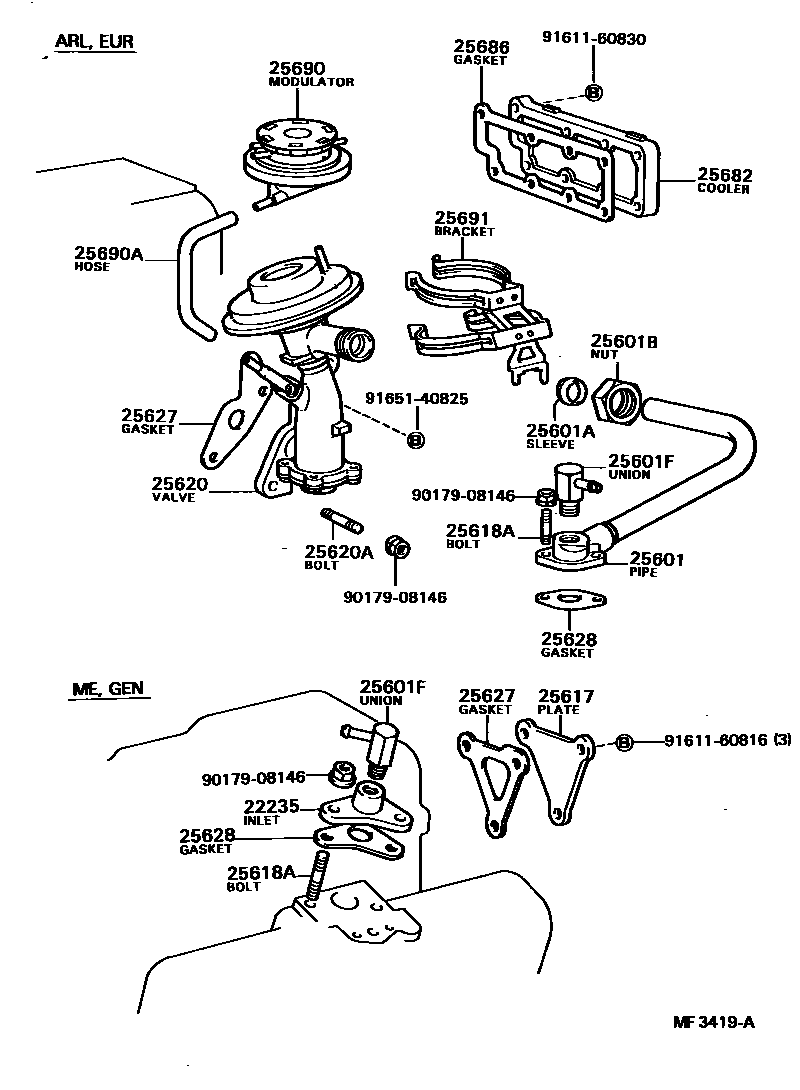

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

22235INLET, AUXILIARY AIR

main22235-43010i5ME..MX73..GEN,ME198411-198808

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i21R,22R..RX70,72..4FC..ME198508-198808

main25601-38010i21R..RX70..RHD..4FC..GL198408-198705

SINGAPORE SPEC

main25601-38010i21R..RX70..4FC..ME198408-198508

SAUDI ARABIA SPEC

main25601-43010i5ME..MX7#..ARL,EUR198408-198608

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16001i5ME..MX7#..ARL,EUR198408-198608

main90410-16044i21R..RX70..4FC..ME198408-198508

SAUDI ARABIA SPEC

main90410-16044i21R..RX70..RHD..4FC..GL198408-198705

SINGAPORE SPEC

main90410-16044i21R,22R..RX70,72..4FC..ME198508-198808

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22005i5ME..MX7#..ARL,EUR198408-198608

main90402-22081i21R..RX70..RHD..GL198408-198705

SINGAPORE SPEC

main90402-22081i21R..RX70..4FC..ME198408-198508

SAUDI ARABIA SPEC

main90402-22081i21R,22R..RX70,72..4FC..ME198508-198808

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027i5ME..MX7#198408-198808

25617PLATE, EGR HOLE COVER

main25615-43020i5MGE..MX73..ARL,GEN198408-198808

CYLINDER HEAD

main25617-38010i21R,22R..RX7#..GEN,SA198408-198808

main25617-38010i21R..RX70..4FC..ME198408-198508

EXCL/SAUDI ARABIA

main25617-43030i5ME..MX73..GEN,ME198411-198808

main25617-43040i5MGE..MX73..ARL198508-198808

SURGE TANK

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i5ME..MX7#198408-198808

25620VALVE ASSY, EGR

main25620-37070i21R..RX70..RHD..5F..GL198608-198705

SINGAPORE SPEC

main25620-37080i21R..RX70..RHD..4FC..GL198408-198705

SINGAPORE SPEC

main25620-37080i21R,22R..RX70,72..4FC..ME198508-198808

main25620-37080i21R..RX70..4FC..ME198408-198508

SAUDI ARABIA SPEC

main25620-43031i5ME..MX7#..4FC..(ARL,EUR)198408-198608

main25620-43100i5ME..MX73..5F..SWZ198408-198608

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i5ME..MX7#..ARL,EUR198408-198808

main90116-08207i21R,22R..RX70,72..4FC..ME198508-198808

main90116-08207i21R..RX70..4FC..ME198408-198508

SAUDI ARABIA SPEC

main90116-08207i21R..RX70..RHD..4FC..GL198408-198705

SINGAPORE SPEC

25627GASKET, EGR VALVE

main25627-43030i5MGE..MX73..ARL,GEN198408-198808

CYLINDER HEAD

sub25627-42040

main25627-43040i5ME..MX73..GEN,ME198411-198808

sub25627-43060

main25627-43050i5MGE..MX73..ARL198508-198808

SURGE TANK

sub25627-43110

main25627-45020i5ME..MX7#..ARL,EUR198408-198608

sub25627-43070

25628GASKET, EGR INLET

main25628-38010i21R,22R..RX7#198408-198808

sub25628-35030

main25628-43010i5ME..MX7#..ARL,EUR198408-198608

sub25628-43050

main25628-45020i5ME..MX73..GEN,ME198411-198808

sub25628-43040

25682COOLER, EGR, NO.2

main25682-45020i5ME..MX7#..ARL,EUR198408-198608

25686GASKET, EGR COOLER, NO.2

main25686-45010i5ME..MX7#..ARL,EUR198408-198608

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25870-43021i5ME..MX7#..ARL,EUR198408-198608

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11020i5ME..MX7#..ARL,EUR198408-198608

sub90445-11051

25691BRACKET, EGR VACUUM MODULATOR

main25691-43030i5ME..MX7#..ARL,EUR198408-198608

9017908146

main90179-08146

9161160816

main91611-60816

9161160830

main91611-60830

9165140825

main91651-40825

20 parts on this diagram · 3 diagrams in section
