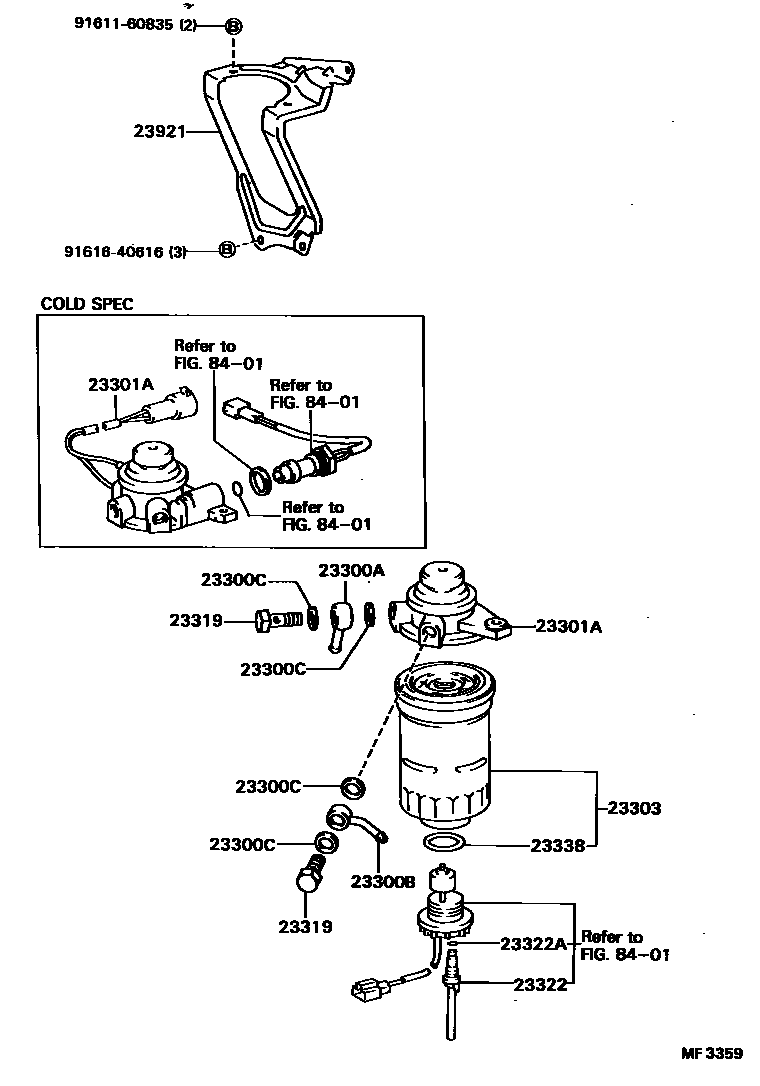

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

23300FILTER ASSY, FUEL

main23300-34100i21R,22R..RX7#198408-198808

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016i2L#..LX7#198408-198606

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-54140i2L#..LX7#198408-198606

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i2L#..LX7#198408-198606

23301ACAP ASSY, FUEL FILTER

main23301-54040i2LT..LX7#198408-198606

COLD SPEC

main23301-54210i2LT..LX7#198606-198608

COLD SPEC

main23301-54280i2L#..LX7#198606-198808

main23301-64020i2L#..LX7#198408-198606

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L#..LX7#198408-198808

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i2L#..LX7#198408-198606

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L#..LX7#198408-198808

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L#..LX7#198408-198808

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L#..LX7#198408-198808

23921SUPPORT, FUEL FILTER

main23921-38020i21R,22R..RX7#198408-198808

main23921-54150i2L#..LX7#198408-198808

main90461-12003i2Y..YX70198502-198808

8401

9161160835

main91611-60835

9161640616

main91616-40616

14 parts on this diagram · 4 diagrams in section
