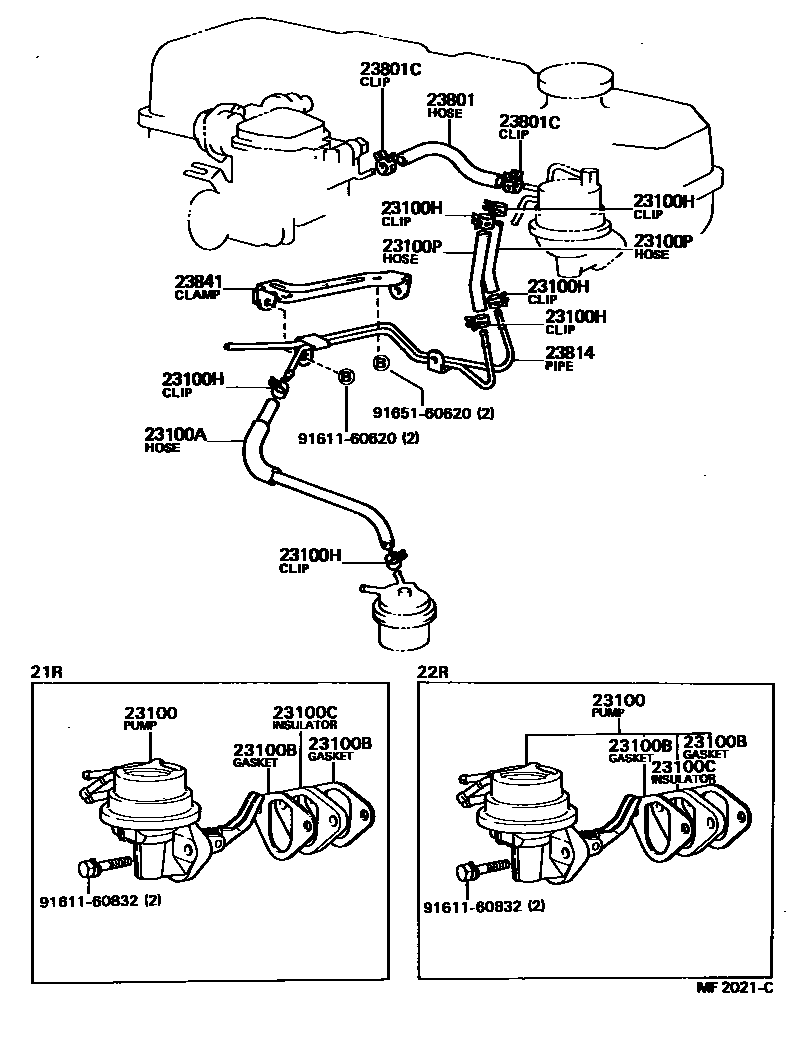

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-35031i22R..RX7#¥10,000198708-198808

sub23100-39336¥11,300

main23100-37060i21R..RX70¥8,900198408-198607

sub23100-37061¥10,200

main23100-37061i21R..RX70,71¥10,200198607-198705

main23100-39336i22R..RX72,73¥11,300198608-198708

main23100-79025i2Y..YX70¥9,500198502-198708

sub23100-79026¥9,900

main23100-79065i2Y..YX70¥9,200198708-198808

sub23100-73021¥9,800

sub90923-05016¥140

sub90923-06008¥380

23100AHOSE, FUEL

main90445-12132i2Y..YX70¥670198503-198510

sub90445-12160¥710

main90445-12160i2Y..YX70¥710198510-198808

sub95333-06040¥730

main90447-12082i21R,22R..RX7#..GEN,ME¥850198606-198808

sub90447-12058¥860

main95332-06030i21R..RX70¥590198510-198604

*H,L=200

sub95333-06030¥580

main95332-06030i21R..RX70¥590198408-198510

*H,L=190

sub95333-06030¥580

main95332-06040i2Y..YX70¥760198502-198503

*H,L=340

sub95333-06040¥730

main95333-06020i21R..RX70¥480198604-198808

sub95337-06020¥570

23100BGASKET, FUEL PUMP

main90923-05005i21R,22R..RX7#¥250198408-198808

sub90923-05019¥250

main90923-05016i2Y..YX70¥140198708-198808

sub90923-06010¥570

sub90923-06014¥900

23100CINSULATOR, FUEL PUMP

main90923-06001i22R..RX7#¥380198408-198808

sub90923-06009¥350

main90923-06008i2Y..YX70¥380198708-198808

sub90923-06010¥570

sub90923-06014¥900

23100HCLIP(FOR FUEL HOSE)

main96132-30600i21R,22R..RX7#¥200198408-198808

sub96132-51100¥120

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06020i21R..RX70¥350198408-198606

*H,L=120

sub95333-06020¥480

main95333-06012i21R..RX70,71;22R..RX72..ME¥500198606-198702

sub95333-06020¥480

main95333-06020i21R,22R..RX7#¥480198702-198808

*H,L=120

sub95337-06020¥570

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i2Y..YX70¥3,230198502-198808

main95332-06020i21R..RX70¥350198408-198606

L=200(*H,L=190)

sub95333-06020¥480

main95333-06019i21R..RX70,71;22R..RX72..ME¥500198606-198702

L=200(*H,L=190)

sub95333-06020¥480

main95333-06020i21R,22R..RX7#¥480198702-198808

L=200(*H,L=190)

sub95337-06020¥570

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i21R,22R..RX7#¥200198408-198808

sub96132-51100¥120

23814PIPE, FUEL DELIVERY

main23814-37040i21R,22R..RX7#¥3,310198408-198808

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35050i21R,22R..RX7#¥640198408-198808

9161160620

main91611-60620¥90

9161160832

main91611-60832¥190

9165160620

main91651-60620¥80

13 parts on this diagram · 2 diagrams in section
