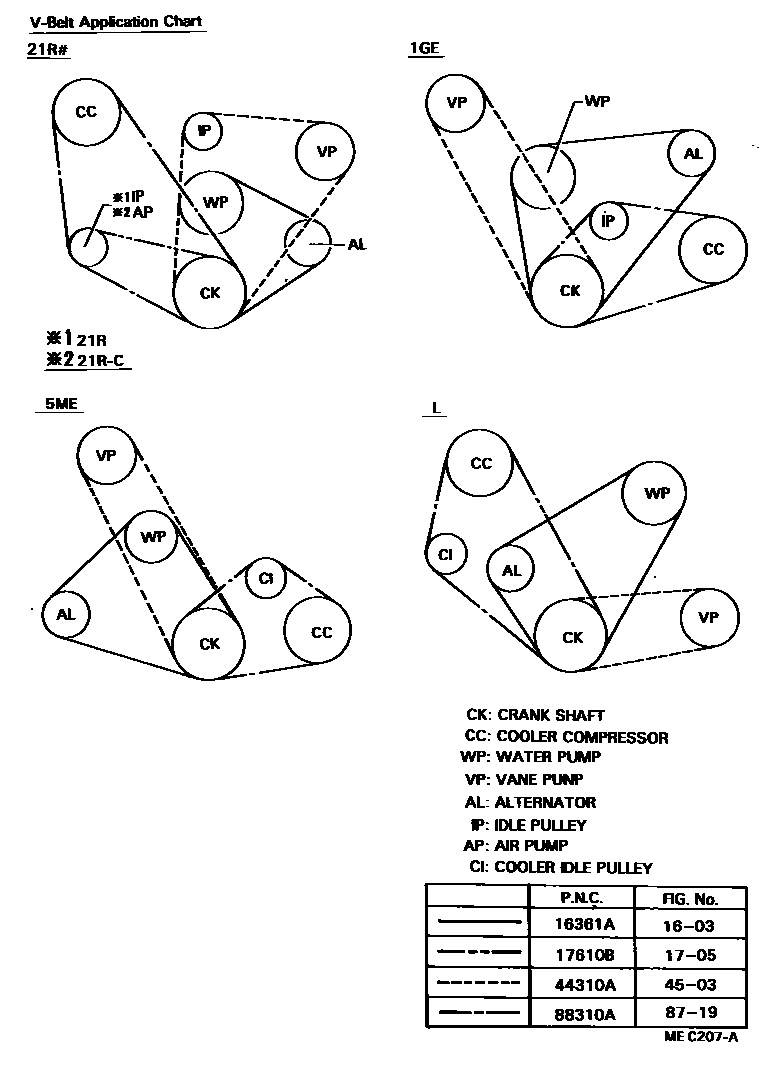

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1 0009 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5ME..MX62198009-198308

DOUBLE V BELTS,L=925

main90916-02133iL..LX60198211-198407

L=990

main99321-00885i3T..TX62198107-198504

main99331-00870i21R..RX60198408-198504

L=870

main99331-00880i21R#..RX60198009-198407

L=880

main99332-00985iL..LX60198009-198104

L=985

main99332-10985iL..LX60198104-198207

L=985

main99332-11000iL..LX60198207-198211

L=1000

main99332-51130i1GE..GX6#198208-198308

main99364-01100i1GE..GX6#198308-198504

sub99364-81100

main99367-00920i5ME..MX6#198308-198504

1705

17610BBELT, V(FOR AIR PUMP)

main99332-01395i5ME..MX62198009-198407

main99332-10820i21RC..RX60198009-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02078iMX63198312-198504

sub90916-02465

main90916-02080iLX60..DLX198009-198407

main90916-02092iGX6#198208-198504

main99332-51135iRX60..GEN198009-198407

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00890iRX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198407

main99322-00910iGX61..LHD198208-198308

sub99332-00910

main99322-01270iLX60..RHD198009-198407

sub99322-11270

main99322-50950iMX6#198208-198504

main99332-00910iMX62198009-198208

main99364-00850iGX61..LHD198308-198504

L=850

sub99364-20850

8 parts on this diagram · 7 diagrams in section
