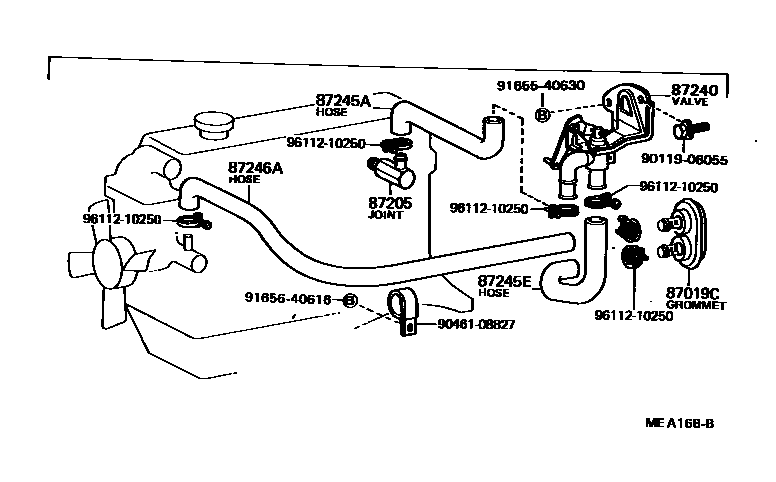

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87019CGROMMET, HEATER HOSE

main90480-01078iGX60..LHD198208-198407

W/*AAC

main90480-01216iMX62..GL198009-198407

INLET,W/*AAC

main90480-36011iGX6#,LX60,MX6#..RHD198009-198504

OUTLET

main96532-13017iGX6#..LHD198009-198504

main96533-13017iGX6#,LX60,MX6#..RHD198009-198504

INLET

main96533-13017iLX60..LHD198009-198407

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-20100iTX62198009-198504

main87251-30200iLX60,MX6#198009-198504

87240VALVE ASSY, HEATER WATER

main87240-22140iGX6#,MX6#..RHD198009-198504

main87240-22150iLX60,RX6#,TX62..RHD198009-198504

main87240-22160iMX62..GL198009-198208

W/*AAC

main87240-22180iRX60..LHD198009-198407

main87240-22190iLX60..LHD198009-198407

main87240-22210iGX60..LHD198208-198407

W/*AAC

main87240-22220iGX60,MX62..RHD..(ARL,GEN)198208-198407

W/*AAC

main87240-22230iGX6#..LHD198208-198407

87245AHOSE, HEATER WATER, INLET A

main87245-22220iTX62198009-198504

main87245-22320iGX6#..RHD198208-198504

main87245-22340iRX60..RHD198009-198504

main87245-22410iRX60..LHD198009-198407

main87245-22420iLX60..LHD198009-198407

main87245-22450iMX6#198009-198504

main87245-22460iLX60..RHD198009-198407

main87245-22510iGX6#..LHD198208-198407

main99552-31000iRX62198009-198208

*H,L=740

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main87245-22130iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

main87245-22380iRX60..LHD198009-198407

main87245-22470iLX60..LHD198009-198407

main87245-22540iGX6#..LHD198208-198407

87246AHOSE, HEATER WATER, OUTLET A

main87245-22150iRX62198009-198208

main87245-22290iGX6#,LX60..LHD198009-198407

main87245-22330iLX60,MX62..RHD198009-198107

sub87245-22331

main87245-22331iGX6#,MX6#..RHD198107-198504

main87245-22350iRX60..RHD198009-198504

main87245-22390iRX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA)198009-198407

main87245-22490iRX60..SDN,SDZ198009-198407

main87245-22600iLX60..RHD198304-198407

main99552-31000iTX62198009-198504

*H,L=900

sub99556-31000

9011906055

main90119-06055

9046108827

main90461-08827

9165540630

main91655-40630

9165640616

main91656-40616

9611210250

main96112-10250

11 parts on this diagram · 4 diagrams in section
