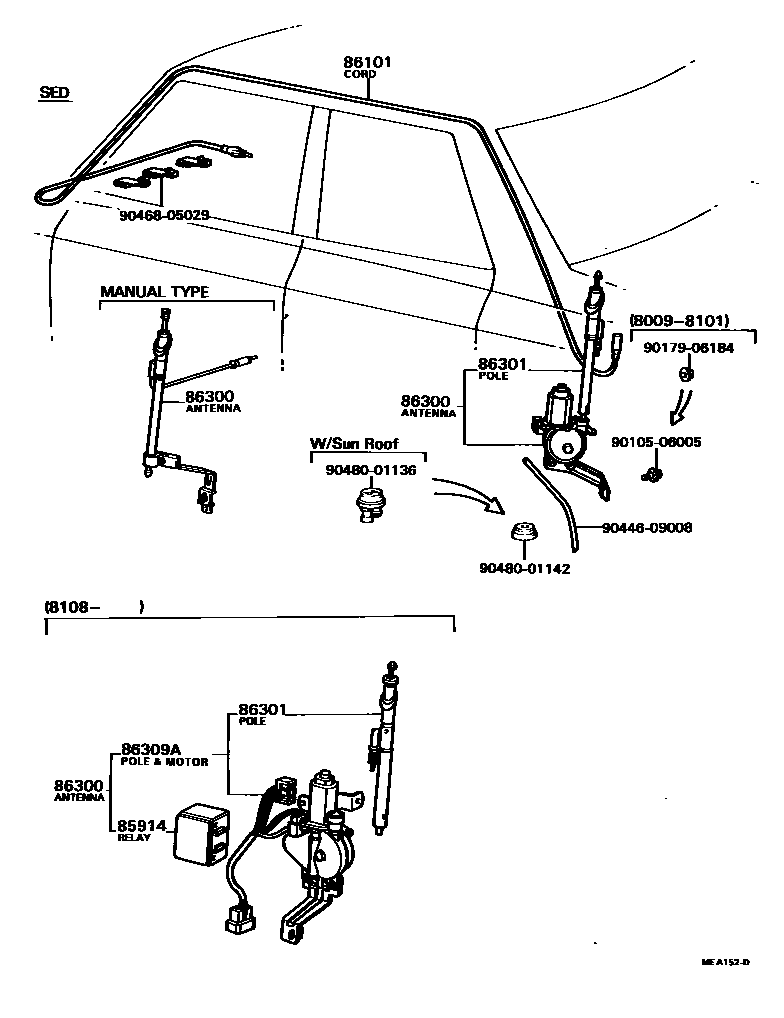

ANTENNA

0001 1 0002 1 0003 1 0004 1

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14010iRX60..GL..SDZ;GX61,RX60..RHD..GL198108-198306

main85914-14020iRX60..GL..SDZ;GX61,RX60..RHD..GL198306-198504

86101CORD SUB-ASSY, ANTENNA

main86101-22130iRX60..SXL198009-198504

main86101-91601iLX60,MX62,RX60..WG..(ARL,GEN,ME)198009-198407

86300ANTENNA ASSY, W/HOLDER

main86300-22140iLX60..SED;RX60..SED..LHD..DLX..EUG;RX60..SED..RHD..DLX..(EUR,GEN);RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

MANUAL TYPE

sub86300-22141

main86300-22141iLX60..RHD198208-198407

MANUAL TYPE

main86300-22150iRX60..(GL,SXL)..(ME,SA)198009-198108

MOTOR TYPE

sub86300-22151

main86300-22180iLX60,MX62..SED;RX60..SED..RHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME)198108-198208

MOTOR TYPE

sub86300-22181

main86300-22181iMX63,RX60..SED..(GEN,ME,SA);GX60,LX60,MX62..SED..(ARL,GEN,ME)198208-198504

MOTOR TYPE

sub86300-22182

main86300-91601iLX60,MX62,RX60..WG198009-198108

MOTOR TYPE

sub86300-91616

main86300-91602iLX60,RX60..WG..(EUR,GEN)198009-198407

MANUAL TYPE

main86300-91604iLX60,MX62,RX60..WG..(ARL,GEN,ME,SA)198108-198504

MOTOR TYPE

sub86300-91618

86301POLE SUB-ASSY, ANTENNA

main86301-22150iLX60,MX62..SED;RX60..SED..LHD..GEN;RX60..SED..LHD..EUG;RX60..SED..RHD..(EUR,GEN)198009-198108

sub86353-14330

main86301-22180iLX60,MX62..SED;RX60..SED..RHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME)198108-198208

sub86301-22181

main86301-22181iGX61,LX60..SED..LHD..EUG198208-198404

sub86353-14330

main86301-91601iLX60,MX62,RX60..WG198009-198108

sub86353-14330

main86301-91604iLX60,MX62,RX6#..WG198108-198404

sub86353-14330

main86353-14320iGX61,RX60..RHD..GL198406-198504

sub86353-14322

main86353-14330iGX61,LX60..SED..LHD..EUG198404-198406

sub86353-14332

main86353-91604iLX60,MX62,RX60..WG..(ARL,GEN,ME,SA)198404-198504

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-22040iLX60,MX62..SED;RX60..SED..RHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME)198108-198208

sub86309-22041

main86309-22041iRX60..GL..SDZ;GX61,RX60..RHD..GL198208-198504

sub86309-22042

main86309-91601iLX60,MX62,RX6#..WG198108-198504

sub86309-91602

9010506005

main90105-06005

9017906184

main90179-06184

9044609008

main90446-09008

9046805029

main90468-05029

9048001136

main90480-01136

9048001142

main90480-01142

11 parts on this diagram · 4 diagrams in section
