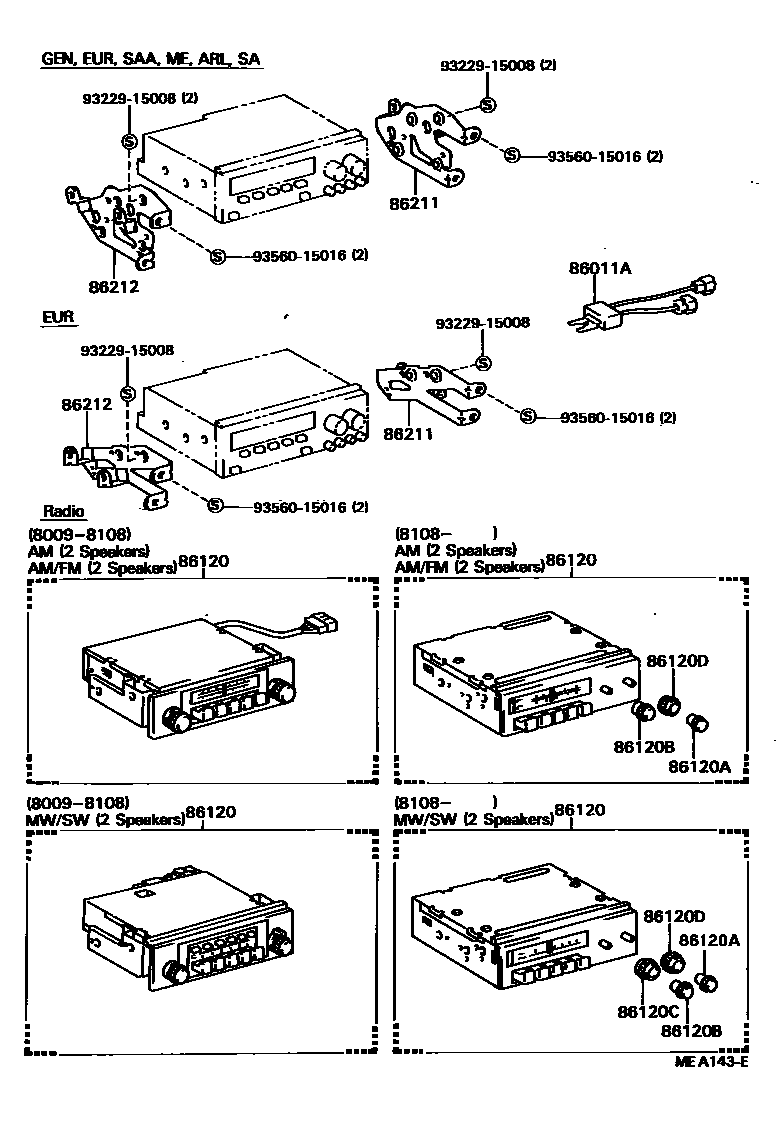

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011ACONDENSER, RADIO SETTING

main90980-04036iRX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA);MX62,RX60..RHD..(ARL,EUR,GEN)198009-198504

86120RECEIVER ASSY, RADIO

main86120-14520iRX60..(4F,4FC,4H)..DLX..ME198108-198407

AM(2 SPEAKERS)

sub86120-17010

main86120-14530iLX60,RX60..GEN,ME198108-198504

AM/FM(2 SPEAKERS)

sub86120-90K06

sub86203-20170

main86120-14580iLX60,RX60..GEN,ME198108-198208

MW/SW(2 SPEAKERS)

sub86120-14581

main86120-14581iGX60,LX60,RX60..GEN,ME198208-198407

MW/SW(2 SPEAKERS)

sub86120-22600

main86120-22310iLX60,RX60..EUG198009-198108

LW/MW/UKW(2 SPEAKERS)

main86120-22320iLX60,RX60..(DLX,GL)..EUG198009-198208

*21

main86120-22330iRX60..SXL198009-198208

*18

main86120-22340iLX60,RX60..(DLX,STD)..GEN198009-198108

AM(2 SPEAKERS)

main86120-22350iLX60,RX60..GEN,ME,SAA198009-198108

MW/SW(2 SPEAKERS)

main86120-22370iMX62,RX60..GL..(ARL,GEN)198009-198108

*20

sub86120-22H00

main86120-22380iLX60,RX60..GEN,ME,SAA198009-198108

AM/FM(2 SPEAKERS)

main86120-22390iLX60,RX60..EUG198108-198208

LW/MW/UKW(2 SPEAKERS)

sub86120-22391

main86120-22400iRX60..SDZ198108-198407

LW/MW/UKW/ARI(2 SPEAKERS)

sub86120-22401

main86120-22430iMX62,RX60..GL..(ARL,GEN)198108-198208

*20

sub86120-22431

main86120-22431iGX60,RX60..GL..ME198208-198407

*20

main86120-22450iGX60,LX60,MX62,RX60..ARL,GEN198208-198504

*18

sub86120-22451

main86120-32070iRX60..SDZ;GX61,LX60..RHD198208-198407

*34

86120AKNOB, RADIO RECEIVER SWITCH

main86128-14010iLX60,RX60..GEN,ME198108-198407

AM,AM/FM(2 SPEAKERS)

main86128-14010iLX60,RX60..GEN,ME198108-198208

MW/SW(2 SPEAKERS)

main86128-14090iMX62,RX60..GL..(ARL,GEN)198108-198208

*20

main86128-14240iLX60,RX60..EUG198108-198208

LW/MW/UKW(2 SPEAKERS)

main86128-14240iLX60,RX60..EUG198108-198208

LW/MW/UKW/ARI(2 SPEAKERS)

main86128-22010iLX60,MX62,RX60..(DLX,GL)..(ARL,GEN)198009-198208

*18

main86128-22010iMX62,RX60..GL..(ARL,GEN)198009-198108

*20

main86128-22030iLX60,RX60..(DLX,GL)..EUG198009-198208

*21

main86128-32030iGX61,LX60..RHD198208-198407

*34

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-14050iLX60,RX60..GEN,ME198108-198407

AM,AM/FM(2 SPEAKERS)

main86128-14070iLX60,RX60..GEN,ME198108-198208

MW/SW(2 SPEAKERS)

main86128-14240iLX60,RX60..EUG198108-198208

LW/MW/UKW(2 SPEAKERS)

main86128-22090iRX60..SXL198009-198208

*18

main86128-22110iLX60,RX60..(DLX,GL)..EUG198009-198208

*21

main86128-22130iMX62,RX60..GL..(ARL,GEN)198009-198208

*20

main86128-32030iGX61,LX60..RHD198208-198407

*34

86120CKNOB, RADIO RECEIVER TUNING, NO.2

main86128-14030iLX60,RX60..GEN,ME198108-198208

MW/SW(2 SPEAKERS)

86120DKNOB, RADIO RECEIVER TONE

main86128-14030iLX60,RX60..GEN,ME198108-198407

AM,AM/FM(2 SPEAKERS)

main86128-14030iLX60,RX60..GEN,ME198108-198208

MW/SW(2 SPEAKERS)

main86128-14260iLX60,RX60..EUG198108-198208

LW/MW/UKW/ARI(2 SPEAKERS)

main86128-14260iLX60,RX60..LHD..EUG198108-198208

LW/MW/UKW(2 SPEAKERS)

main86128-32050iGX61,LX60..RHD198208-198407

*34

86211BRACKET, RADIO, NO.1

main86211-22060iRX60..SXL198009-198208

main86211-22060iLX60,MX62,RX60..(DLX,GL)..(ARL,GEN)198108-198208

*18

main86211-22080iLX60,RX60..(DLX,GL)..EUG198108-198208

*21

main86211-22080iLX60,RX60..EUG198009-198108

main86211-22082iGX61,LX60..RHD198208-198407

*34

main86211-22100iLX60,RX60..EUG198108-198205

sub86211-22101

main86211-22101iRX60..SDZ;GX60,LX60,MX62,RX60..ARL,GEN,ME198205-198504

main86211-22120iLX60,RX60..LHD..(DLX,GL)..EUG198108-198208

*WEG

86212BRACKET, RADIO, NO.2

main86212-22040iLX60,MX62,RX60..(DLX,GL)..(ARL,GEN)198108-198208

*18

main86212-22040iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198208

main86212-22060iLX60,RX60..EUG198009-198108

main86212-22060iLX60,RX60..(DLX,GL)..EUG198108-198208

*21

main86212-22062iGX61,LX60..LHD..EUG198208-198407

*34

main86212-22080iLX60,RX60..EUG198108-198205

sub86212-22081

main86212-22081iRX60..SDZ;GX60,LX60,MX62,RX60..ARL,GEN,ME198205-198504

main86212-22100iLX60,RX60..LHD..(DLX,GL)..EUG198108-198208

*WEG

9322915008

main93229-15008

9356015016

main93560-15016

10 parts on this diagram · 3 diagrams in section
