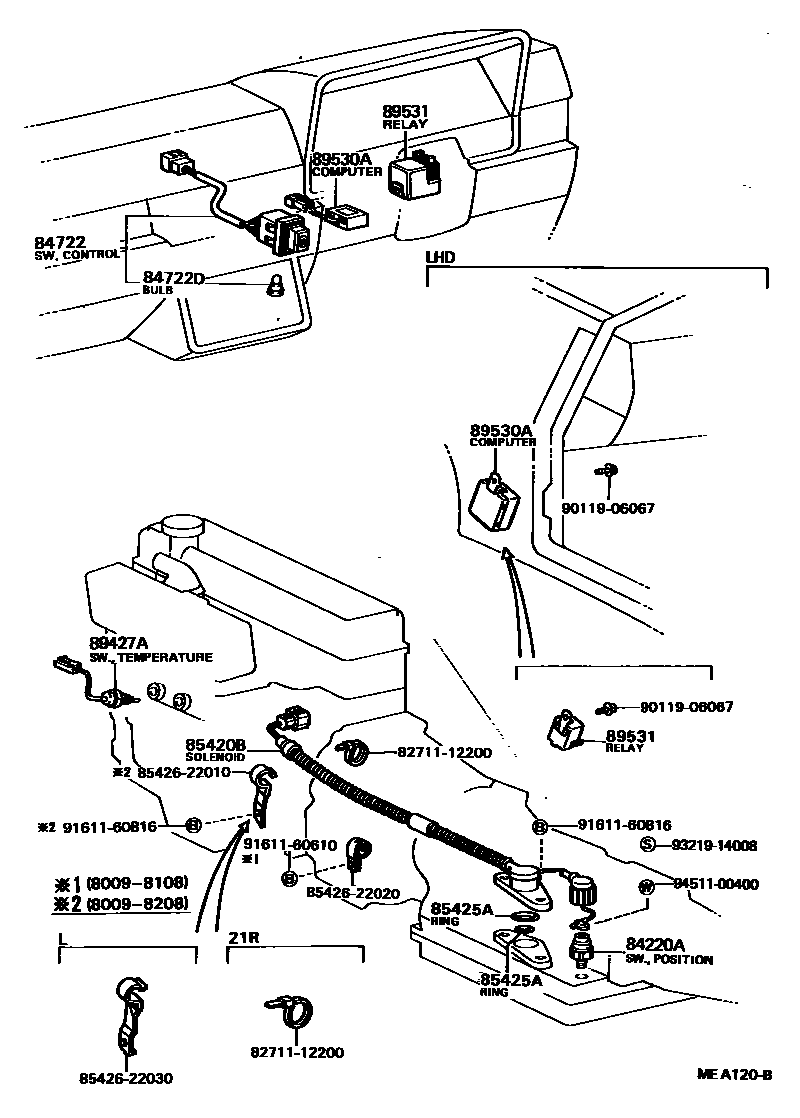

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iGX61,LX60..4FC..EUG198208-198407

84722SWITCH, TRANSMISSION CONTROL

main84722-20020iGX6#,LX60,MX6#,RX60..4FC198009-198504

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iGX6#,LX60,MX6#,RX60..4FC198009-198504

12V 1.4W,12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-22040iGX61,LX60..4FC..EUG198208-198407

main85420-22060iLX60,MX62,RX60..4FC198009-198504

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iGX6#,LX60,MX6#,RX60..4FC198009-198504

ID=11

main90301-23001iGX6#,LX60,MX6#,RX60..4FC198009-198504

ID=23

89427ASWITCH, TEMPERATURE

main89428-30050iGX6#..4FC198208-198504

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-22020iGX61..LHD..4FC198208-198407

main89530-22030iLX60..4FC..EUG198208-198407

main89530-24010iGX61..RHD..4FC198208-198407

89531RELAY, TRANSMISSION CONTROL

main89531-22030iGX60..RHD..4FC198208-198504

main89531-22040iGX60..LHD..4FC198208-198407

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8542622010CLAMP, OVER DRIVE SOLENOID

main85426-22010

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

8542622030CLAMP, OVER DRIVE SOLENOID

main85426-22030

9011906067

main90119-06067

9161160610

main91611-60610

9161160816

main91611-60816

9321914008

main93219-14008

9451100400

main94511-00400

17 parts on this diagram · 1 diagram in section
