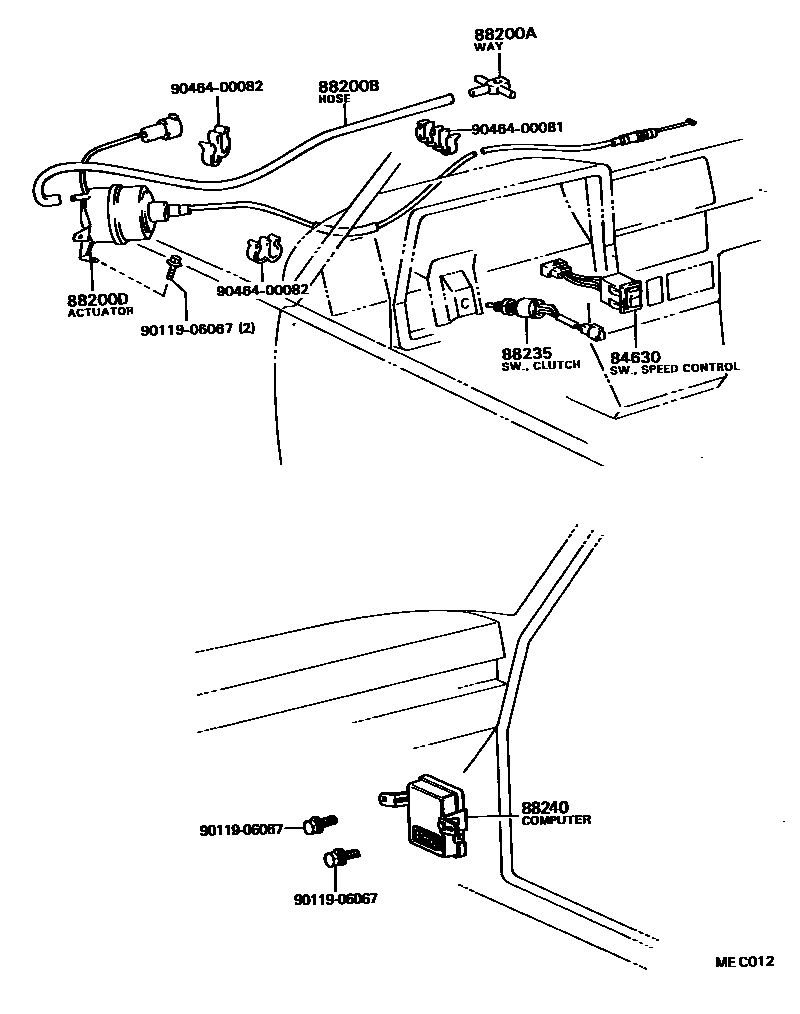

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-22050iGX60..LHD198208-198407

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90413-04005iGX60..LHD198208-198407

88200BHOSE, CRUISE CONTROL VACUUM

main95411-19995iGX60..LHD198208-198407

*H,L=950,MARK=#*

sub90999-92004

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-22100iGX60..LHD198208-198407

sub88200-22101

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iGX60..LHD..5F198208-198407

88240COMPUTER ASSY, CRUISE CONTROL

main88240-22080iGX60..LHD198208-198308

sub88240-22081

main88240-22081iGX60..ME198308-198407

9011906067

main90119-06067

9046400081

main90464-00081

9046400082

main90464-00082

9 parts on this diagram · 1 diagram in section
