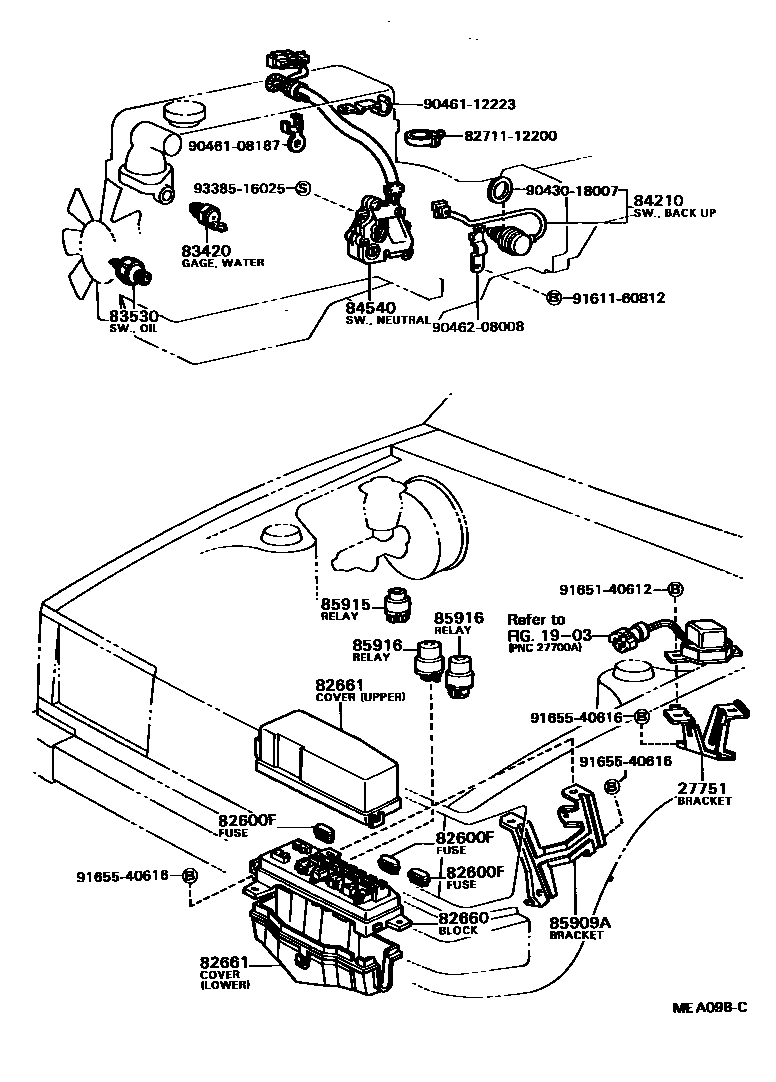

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1903

27751BRACKET, GENERATOR REGULATOR

main27751-70010i21R#,18R,3T..RX6#,TX62198009-198504

82600FFUSE, FUSE BLOCK

main90982-09001iGX6#,LX60,MX6#,RX6#,TX62198009-198504

5A,5A

main90982-09002×3iGX6#,LX60,MX6#,RX60198208-198504

10A,10A

main90982-09003×11iGX6#,LX60,MX6#,RX6#,TX62198009-198504

15A,15A

main90982-09004iGX6#,LX60,MX6#,RX6#,TX62198009-198504

20A,YELLOW,20A

main90982-09005×6iGX6#,LX60,MX6#,RX6#,TX62198009-198504

7.5A,7.5A

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-14090iGX61..LHD198208-198310

SUMITOMO

main82660-14110iGX61..LHD198208-198310

YAZAKI

main82660-14150iGX61..LHD198310-198407

SUMITOMO

main82660-14160iGX61..LHD198310-198407

YAZAKI

main82660-20100iGX60,MX6#;GX61..RHD198310-198504

main82660-22071iLX60,RX6#,TX62..GEN,ME,SA,SAA198009-198310

SUMITOMO

main82660-22080iLX60,RX6#,TX62..GEN,ME,SA,SAA198009-198310

YAZAKI

main82660-22091iGX60,MX62;GX61..RHD198009-198310

SUMITOMO

main82660-22100iGX60,MX62;GX61..RHD198009-198310

YAZAKI

main82660-22110iLX60,RX60..EUR198009-198310

SUMITOMO

main82660-22120iLX60,RX60..EUR198009-198310

YAZAKI

main82660-22150iLX60,RX60,TX62..GEN,ME,SA198310-198504

SUMITOMO

main82660-22160iLX60,RX60,TX62..GEN,ME,SA198310-198504

YAZAKI

main82660-22170iLX60,RX60..EUR198310-198407

SUMITOMO

main82660-22180iLX60,RX60..EUR198310-198407

YAZAKI

82661COVER, RELAY BLOCK, NO.1

main82661-14020iLX60,RX60..LHD..EUR198208-198310

UPR,SUMITOMO

main82661-14030iLX60,RX60..LHD..EUR198208-198310

UPR,YAZAKI

main82661-14060iLX60,RX60..LHD..EUR198310-198407

UPR,SUMITOMO

main82661-14070iLX60,RX60..LHD..EUR198310-198407

UPR,YAZAKI

main82661-20020iGX60,LX60,MX6#,RX60,TX62..ARL,GEN,ME,SA198310-198504

UPR

main82661-22011iLX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198208

UPR,SUMITOMO

main82661-22020iLX60,RX60..EUR198009-198208

UPR,SUMITOMO

main82661-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

LWR,SUMITOMO

main82661-22040iLX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198208

UPR,YAZAKI

main82661-22050iLX60,RX60..EUR198009-198208

UPR,YAZAKI

main82661-22060iGX6#,LX60,MX6#,RX6#,TX62198009-198504

LWR,YAZAKI

main82661-22070iGX60,LX60,MX62,RX60,TX62..ARL,GEN,ME,SA198208-198310

UPR,SUMITOMO

main82661-22080iGX60,LX60,MX62,RX60,TX62..ARL,GEN,ME,SA198208-198310

UPR,YAZAKI

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

DENSO

main83420-20020iGX6#,LX60,MX6#,RX6#,TX62198009-198504

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iRX62,TX62198112-198503

main83530-14010iRX60..EUR,SA198208-198504

main83530-14030iTX62198503-198504

sub83530-28030

main83530-30042iGX60..LHD198301-198308

W/DIGITAL SPEEDOMETER

sub83530-30050

main83530-36011iLX60198009-198407

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10040iRX60..LHD..3H198009-198108

main84210-60010iRX60..4H198108-198407

84540SWITCH ASSY, NEUTRAL START

main84540-14080iGX6#,LX60,MX6#..4FC198109-198504

main84540-14090iRX60,TX62..ATM198208-198504

main84540-22161iRX6#,TX62..ATM198009-198208

main84540-30191iLX60,MX62..4FC198009-198109

85909ABRACKET SUB-ASSY, RELAY BLOCK

main85909-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

85915RELAY, MAIN

main90987-02002iGX6#,LX60,MX6#,RX6#,TX62198110-198504

main90987-02004iLX60,MX62,RX6#,TX62198009-198110

85916RELAY, LIGHT CONTROL

main90987-01003×2iGX6#,LX60,MX62,RX6#,TX62198009-198310

main90987-02006iGX6#,LX60,MX6#,RX60,TX62198310-198504

HEAD

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9043018007

main90430-18007

9046108187

main90461-08187

9046112223

main90461-12223

9046208008

main90462-08008

9161160812

main91611-60812

9165140612

main91651-40612

9165540616

main91655-40616

9338516025

main93385-16025

21 parts on this diagram · 11 diagrams in section
