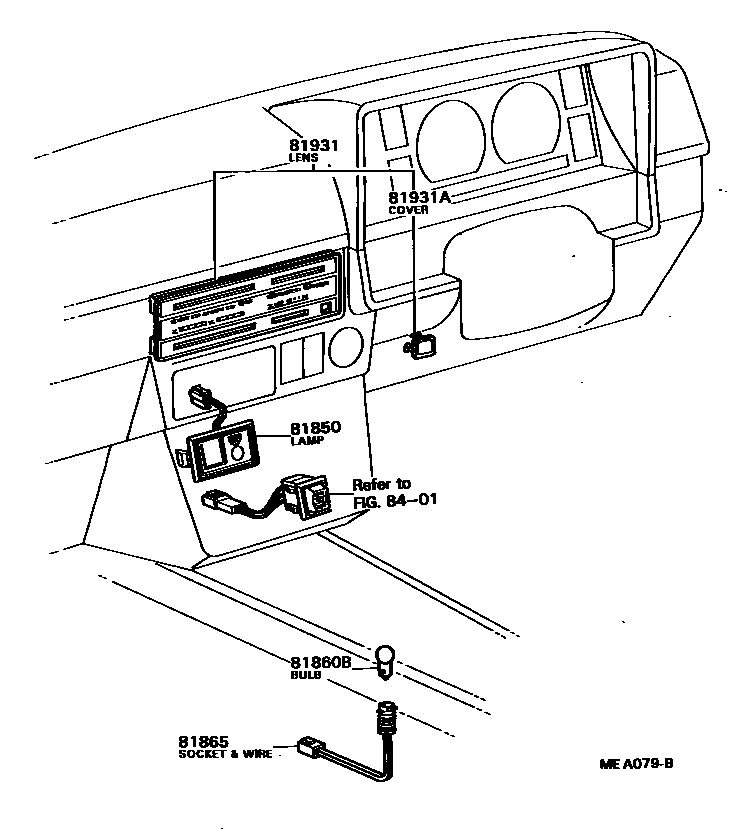

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-22060iLX60..SED..LHD..DLX..EUG198009-198407

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034iLX60,MX62,RX6#,TX62..ATM198009-198208

12V 3.4W,12V 3.4W

main99132-12034iGX6#,LX60,MX6#,RX60,TX62..ATM198208-198504

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010iLX60,MX62,RX6#,TX62..ATM198009-198208

main35906-22030iGX6#,LX60,RX60..LHD..ATM198208-198407

main35906-22040iGX6#,MX6#,RX60,TX62..RHD..ATM198208-198504

81931LENS, HEATER CONTROL INDICATOR

main55519-22020iRX60..LHD..GEN198009-198407

W/BOOST VENTILATOR

main55519-22030iLX60,RX60..RHD..GEN198009-198208

W/BOOST VENTILATOR

sub55519-22031

main55519-22031iGX60,RX60..RHD..GEN198208-198407

main55519-22040iLX60,MX62,RX6#,TX62..RHD198009-198208

W/HEATER

sub55519-22041

main55519-22041iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

W/HEATER

main55519-22050iLX60,RX60..LHD..(EUR,GEN)198009-198407

W/HEATER

main55519-22060iMX62..GL198009-198208

W/AUTOMATIC AIR CONDITIONER

main55519-22080iGX60..LHD198208-198407

W/AUTOMATIC AIR CONDITIONER

main55519-22100iGX60,MX62..RHD..(ARL,GEN)198208-198407

W/AUTOMATIC AIR CONDITIONER

81931ACOVER, COOLER SWITCH HOLE

main55538-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

8401

6 parts on this diagram · 1 diagram in section
