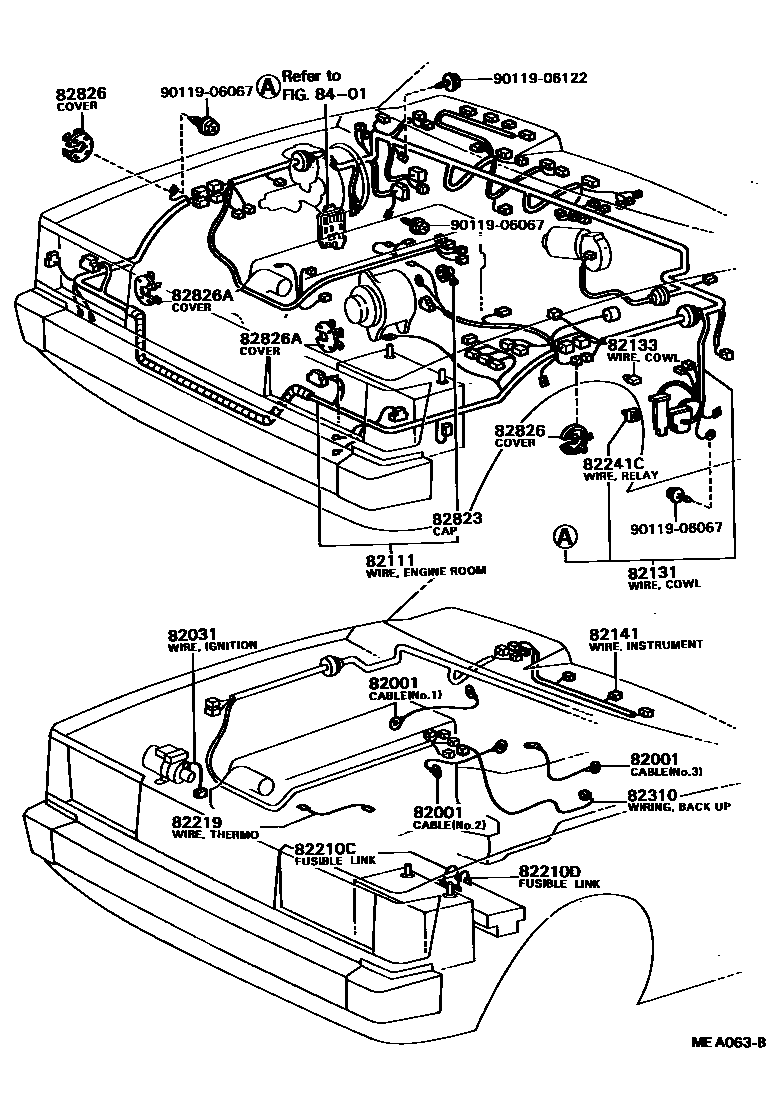

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=400(NO.1)
L=350(NO.2)
L=500(NO.1)
main90980-07176iRX60..WG..LHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA);MX62,RX60..RHD..(ARL,EUR,GEN)¥680198009-198504
L=300(NO.3)
82031WIRE SUB-ASSY, IGNITION COIL
L=100
82111WIRE, ENGINE ROOM MAIN
COLD SPEC
COLD SPEC
COLD SPEC
82131WIRE, COWL
W/*PW
W/*PW
W/*CRC
W/*CRC
W/DIGITAL SPEEDOMETER
W/DIGITAL SPEEDOMETER
sub82230-2A051
W/*PW OR SUN ROOF
W/*PW OR SUN ROOF
W/*PW OR SUN ROOF,COLD SPEC
W/*PW OR SUN ROOF,COLD SPEC
82133WIRE, COWL, NO.3
82141WIRE, INSTRUMENT PANEL
W/DIGITAL SPEEDOMETER
W/RR WIPER
W/RR WIPER
82210CFUSIBLE LINK
FL 0.3 PINK
82210DFUSIBLE LINK
1.0YELLOW,L=110
82241CWIRE, RELAY
W/O COOLER RELAY
W/O LAMP FAILURE SENSOR(TAIL)
W/O LAMP FAILURE SENSOR(STOP)
W/O WIPER RELAY
W/O CHARGE LAMP RELAY
82310WIRING ASSY, TO BACK UP LAMP SWITCH
82823CAP, TERMINAL, NO.1
82826COVER, WIRING HARNESS HOLE
82826ACOVER, WIRING HARNESS HOLE, NO.2
8401
9011906067
9011906122
18 parts on this diagram · 11 diagrams in section
