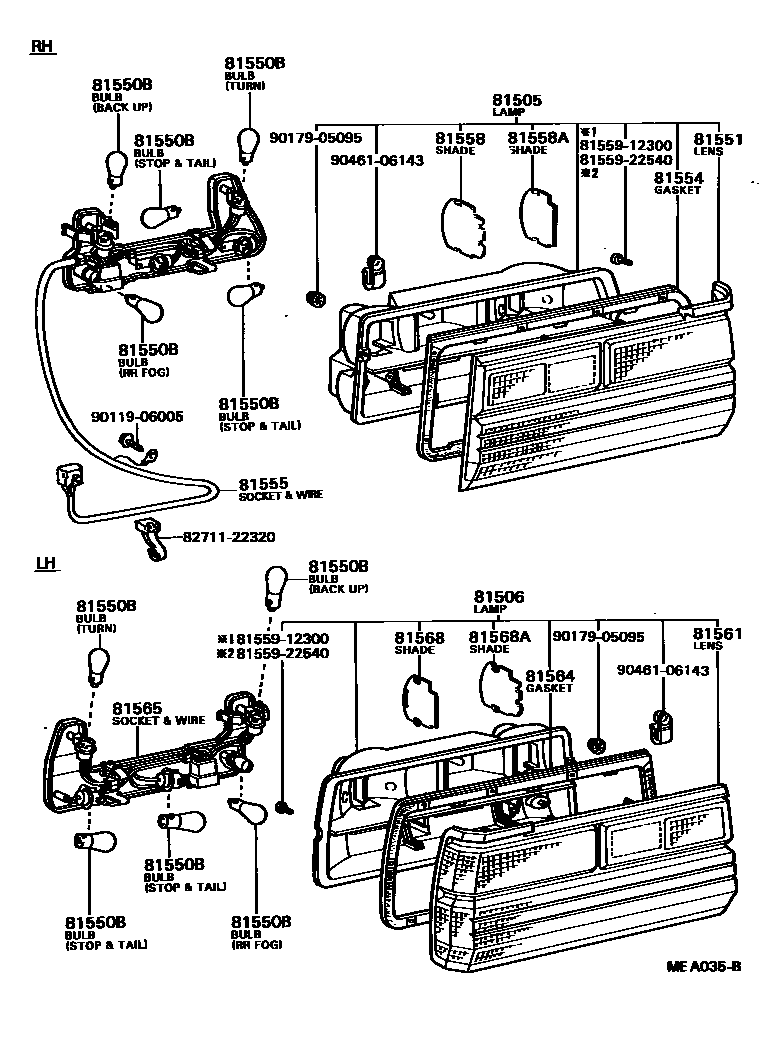

REAR COMBINATION LAMP

0001 1 0003 1 0004 1 0005 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-29305iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥31,000198009-198110

KOITO

sub81505-29306¥31,000

main81505-29306iMX63,RX60,TX62..SED..(GEN,SA);GX60,LX60,MX62..SED..(ARL,GEN)¥31,000198208-198504

main81505-29306iLX60,MX62,RX60..SED..(ARL,GEN,ME)¥31,000198110-198208

KOITO

main81505-29315iLX60,RX60,TX62..SED..(EUR,SA)¥28,300198009-198110

KOITO

sub81505-29316¥28,300

main81505-29316iLX60,RX60,TX62..SED..(EUR,SA)¥28,300198110-198208

KOITO

main81505-29335iLX60,RX60..SED..EUG¥28,800198009-198110

W/RR FOG LAMP

sub81505-29336¥28,800

main81505-29336iLX60,RX60..SED..EUG¥28,800198110-198407

W/RR FOG LAMP

main81505-29355iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥28,300198009-198208

STANLAY

main81505-29365iRX60,TX62..SA¥28,800198009-198208

STANLAY

main81505-29425iGX60,RX60..SED..ME¥33,500198208-198407

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-29225iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥31,000198009-198110

KOITO

sub81506-29226¥31,000

main81506-29226iLX60,MX62,RX60..SED..(ARL,GEN,ME)¥31,000198110-198208

KOITO

main81506-29226iMX63,RX60,TX62..SED..(GEN,SA);GX60,LX60,MX62..SED..(ARL,GEN)¥31,000198208-198504

main81506-29235iLX60,RX60,TX62..SED..(EUR,SA)¥28,300198009-198110

KOITO

sub81506-29236¥28,300

main81506-29236iRX60,TX62..SA¥28,300198110-198208

KOITO

main81506-29255iLX60,RX60..SED..EUG¥28,800198009-198110

W/RR FOG LAMP

sub81506-29256¥28,800

main81506-29256iGX61,LX60,RX60..SED..EUR¥28,800198110-198407

W/RR FOG LAMP

main81506-29275iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥28,300198009-198208

STANLAY

main81506-29285iRX60,TX62..SA¥28,800198009-198208

STANLAY

main81506-29345iGX60,RX60..SED..ME¥33,500198208-198407

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80094iLX60,RX60..WG..(GEN,ME)¥25,200198009-198208

sub81550-91601¥23,400

main81550-80095iLX60,MX62,RX6#..WG..(ARL,EUR,SA)¥22,600198009-198208

main81550-80140iLX60,MX62,RX60..WG..(ARL,GEN,ME,SA)¥21,800198208-198504

sub81550-91604¥19,200

main81550-80141iLX60,RX60..WG..EUR198208-198407

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLX60,MX62,RX6#..WG¥170198009-198504

12V 21W,12V 21W(TURN OR BACK UP)

main99132-11230iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)198009-198504

12V 23W,12V 23W(TURN OR BACK UP)

main99132-21210iGX6#,LX60,MX6#,RX6#,TX62¥190198009-198504

12V 21/5W,12V 21/5W(STOP & TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-22490iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥19,900198009-198208

KOITO

main81551-22490iMX63,RX60,TX62..SED..(GEN,SA);GX60,LX60,MX62..SED..(ARL,GEN)¥19,900198208-198504

main81551-22500iGX61,LX60,RX60..SED..EUR¥19,900198208-198407

main81551-22500iLX60,RX60,TX62..SED..(EUR,SA)¥19,900198009-198208

KOITO

main81551-22540iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥19,900198009-198208

STANLAY

main81551-22550iLX60,RX60,TX62..SED..(EUR,SA)¥19,900198009-198208

STANLAY

main81551-22580iGX60,RX60..SED..ME¥26,200198208-198407

main81551-91601iLX60,RX60..WG..(GEN,ME)¥8,700198009-198208

main81551-91602iLX60,MX62,RX6#..WG..(ARL,EUR,SA)¥8,700198009-198208

main81551-91604iLX60,MX62,RX60..WG..(ARL,GEN,ME,SA)¥9,500198208-198504

main81551-91605iLX60,RX60..WG..EUR¥9,400198208-198407

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-22531iGX60,RX60..SED..ME¥1,380198208-198407

main81554-22490iMX63,RX60,TX62..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)¥1,390198009-198504

KOITO

main81554-22540iLX60,MX62,RX60,TX62..SED¥1,480198009-198208

STANLAY

main81554-91601iLX60,MX62,RX6#..WG¥1,130198009-198504

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-22490iMX63,RX60,TX62..SED..(GEN,SA);GX60,LX60,MX62..SED..(ARL,GEN)¥8,400198208-198504

main81555-22490iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥8,400198009-198208

KOITO

main81555-22500iLX60,RX60,TX62..SED..(EUR,SA)198009-198208

KOITO

main81555-22520iGX61,LX60,RX60..SED..EUR198009-198407

W/RR FOG LAMP

main81555-22540iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)198009-198208

STANLAY

main81555-22550iLX60,RX60,TX62..SED..(EUR,SA)198009-198208

STANLAY

main81555-22580iGX60,RX60..SED..ME¥9,800198208-198407

main81555-91601iLX60,RX60..WG..(GEN,ME)198009-198208

main81555-91602iLX60,MX62,RX6#..WG..(ARL,EUR,SA)198009-198208

main81555-91604iLX60,MX62,RX60..WG..(ARL,GEN,ME,SA)¥2,210198208-198504

main81555-91605iLX60,RX60..WG..EUR¥2,210198208-198407

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-22500iGX61,LX60,RX60..SED..EUR198208-198407

main81557-22500iLX60,RX60,TX62..SED..(EUR,SA)198009-198208

KOITO

main81558-91601iLX60,MX62,RX6#..WG198009-198208

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81558-22500iLX60,RX60,TX62..SED..(EUR,SA)198009-198208

KOITO

main81558-22500iGX61,LX60,RX60..SED..EUR198208-198407

81561LENS, REAR COMBINATION LAMP, LH

main81561-22490iMX63,RX60,TX62..SED..(GEN,SA);GX60,LX60,MX62..SED..(ARL,GEN)¥19,900198208-198504

main81561-22490iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥19,900198009-198208

KOITO

main81561-22500iLX60,RX60,TX62..SED..(EUR,SA)¥19,900198009-198208

KOITO

main81561-22500iGX61,LX60,RX60..SED..EUR¥19,900198208-198407

main81561-22540iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥19,900198009-198208

STANLAY

main81561-22550iLX60,RX60,TX62..SED..(EUR,SA)¥19,900198009-198208

STANLAY

main81561-22580iGX60,RX60..SED..ME¥26,200198208-198407

main81561-91601iLX60,RX60..WG..(GEN,ME)¥8,700198009-198208

main81561-91602iLX60,MX62,RX6#..WG..(ARL,EUR,SA)¥8,700198009-198208

main81561-91605iLX60,MX62,RX60..WG..(ARL,GEN,ME,SA)¥9,500198208-198504

main81561-91606iLX60,RX60..WG..EUR¥9,400198208-198407

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-22531iGX60,RX60..SED..ME¥1,380198208-198407

main81554-22490iMX63,RX60,TX62..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)¥1,390198009-198504

KOITO

main81554-22540iLX60,MX62,RX60,TX62..SED¥1,480198009-198208

STANLAY

main81554-91601iLX60,MX62,RX6#..WG¥1,130198009-198504

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-91601iLX60,RX60..WG..(GEN,ME)198009-198208

main81555-91602iLX60,MX62,RX6#..WG..(ARL,EUR,SA)198009-198208

main81555-91604iLX60,MX62,RX60..WG..(ARL,GEN,ME,SA)¥2,210198208-198504

main81555-91605iLX60,RX60..WG..EUR¥2,210198208-198407

main81565-22490iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥4,810198009-198208

KOITO

main81565-22490iMX63,RX60,TX62..SED..(GEN,SA);GX60,LX60,MX62..SED..(ARL,GEN)¥4,810198208-198504

main81565-22500iRX60,TX62..SA198009-198208

KOITO

main81565-22520iGX61,LX60,RX60..SED..EUR¥5,100198009-198407

W/RR FOG LAMP

main81565-22540iLX60,MX62,RX60..SED..(ARL,GEN,ME,SAA)¥4,810198009-198208

STANLAY

main81565-22550iRX60,TX62..SA198009-198208

STANLAY

main81565-22580iGX60,RX60..SED..ME¥4,580198208-198407

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-22500iGX61,LX60,RX60..SED..EUR198208-198407

main81557-22500iLX60,RX60,TX62..SED..(EUR,SA)198009-198208

KOITO

main81568-91601iLX60,MX62,RX6#..WG198009-198208

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81558-22500iLX60,RX60,TX62..SED..(EUR,SA)198009-198208

KOITO

main81558-22500iGX61,LX60,RX60..SED..EUR198208-198407

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300¥200

8155922540MOULDING, REAR COMBINATION LAMP, RH

main81559-22540

8271122320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22320

9011906005

main90119-06005¥80

9017905095

main90179-05095¥240

9046106143

main90461-06143¥140

20 parts on this diagram · 4 diagrams in section
