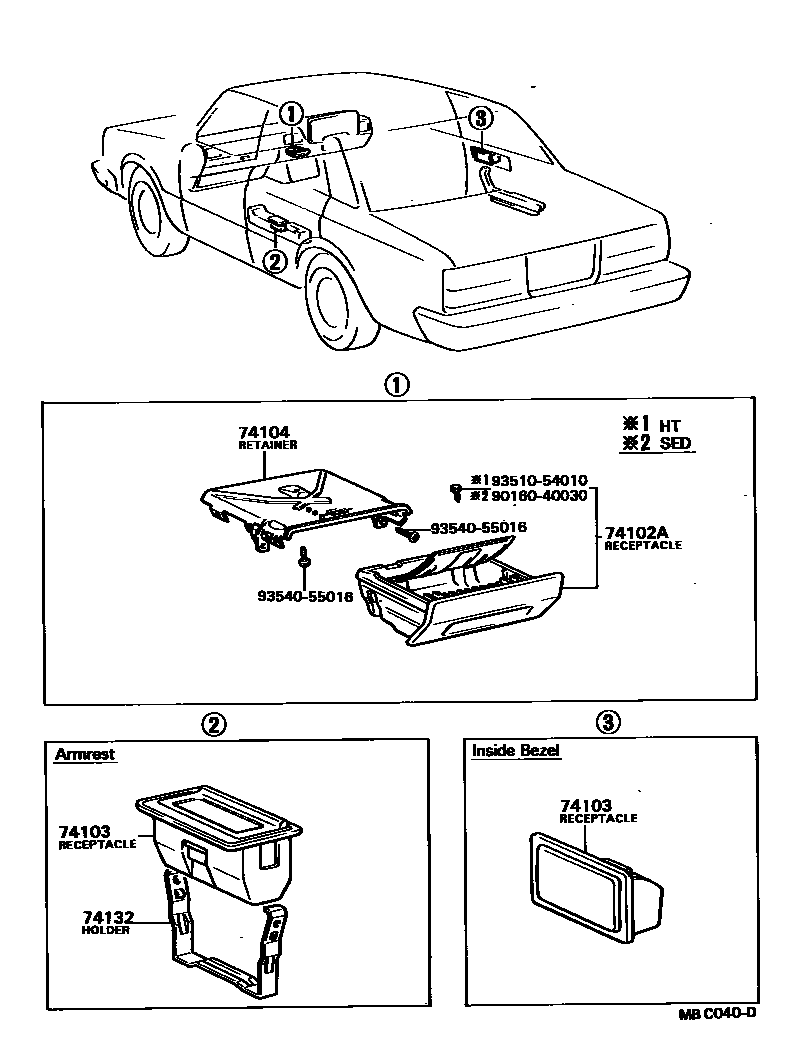

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-22040-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub74102-22040

main74102-22040-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub74102-22040

main74102-22040-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub74102-22040

main74102-22040-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

DARK BROWN,BROWN,TRIM0#,4#

sub74102-22040

main74102-22040-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub74102-22040

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-22040iMX62,RX60..GL198009-198208

ARMREST

sub74130-95J02

main74130-22050-01iRX60,TX62..SA198009-198504

INSIDE BEZEL,BLACK,BLACK,TRIM2#

sub74130-22050

main74130-22050-02iLX60,RX60..DLX198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub74130-22050

main74130-22050-04iRX60,TX62..SA198009-198504

INSIDE BEZEL,BLUE,BLUE,TRIM8#

sub74130-22050

main74130-22050-06iRX60,TX62..SA198102-198504

INSIDE BEZEL,DARK BROWN,BROWN,TRIM4#

sub74130-22050

main74130-22050-06iGX61..LHD198208-198504

D-BROWN,BROWN,TRIM4#

sub74130-22050

main74130-22050-06iRX60,TX62..SA198009-198208

INSIDE BEZEL,DARK BROWN,BROWN,TRIM0#,4#

sub74130-22050

main74130-22050-14iGX61..LHD198208-198504

BLUE,BLUE,TRIM8#

sub74130-22050

main74130-22060-02iGX60,MX6#198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main74130-22060-04iGX60,MX6#198208-198504

BLUE,BLUE,TRIM8#

main74130-22060-06iGX60,MX6#198208-198504

D-BROWN,BROWN,TRIM4#

main74130-22070iGX61,RX60..GL198208-198407

W/*PW

sub74130-16020

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-22070iGX6#,LX60,MX6#,RX6#,TX62198009-198504

74132HOLDER, REAR ASH RECEPTACLE

main74239-22020iGX61,RX60..GL198009-198407

9016040030

main90160-40030

9351054010

main93510-54010

9354055016

main93540-55016

7 parts on this diagram · 1 diagram in section
