SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
DARK BROWN,BROWN,TRIM0#,4#
sub73013-22010
DEEP MAROON,RED/MAROON,TRIM3#
sub73013-22030
D-BROWN,BROWN,TRIM4#
sub73013-22030
BLUE,BLUE,TRIM8#
sub73013-22030
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
DARK BROWN,BROWN,TRIM0#,4#
sub73014-22010
DEEP MAROON,RED/MAROON,TRIM3#
sub73014-22030
D-BROWN,BROWN,TRIM4#
sub73014-22030
BLUE,BLUE,TRIM8#
sub73014-22030
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
DARK BROWN,BROWN,TRIM0#,4#
sub73137-22010
DEEP MAROON,RED/MAROON,TRIM3#
sub73137-22020
D-BROWN,BROWN,TRIM4#
sub73137-22020
BLUE,BLUE,TRIM8#
sub73137-22020
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
DARK BROWN,BROWN,TRIM0#,4#
sub73138-22010
DEEP MAROON,RED/MAROON,TRIM3#
sub73138-22020
D-BROWN,BROWN,TRIM4#
sub73138-22020
BLUE,BLUE,TRIM8#
sub73138-22020
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
DARK BROWN,BROWN,TRIM0#,4#
sub73210-22180
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
D-BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73210BCAP (FOR FRONT SEAT OUTER BELT)
73220BELT ASSY, FRONT SEAT OUTER, LH
DARK BROWN,BROWN,TRIM0#,4#
sub73210-22180
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM0#,4#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
D-BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,BLACK,TRIM2#
sub73230-22130
DEEP MAROON,RED/MAROON,TRIM3#
sub73230-22130
DARK BROWN,BROWN,TRIM4#
sub73230-22130
DARK BROWN,BROWN,TRIM0#,4#
sub73230-22130
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
sub73230-22150
DARK BROWN,BROWN,TRIM4#
sub73230-22150
DEEP MAROON,RED/MAROON,TRIM3#
sub73230-22170
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,BLACK,TRIM2#
sub73230-22130
DEEP MAROON,RED/MAROON,TRIM3#
sub73230-22130
DARK BROWN,BROWN,TRIM4#
sub73230-22130
DARK BROWN,BROWN,TRIM0#,4#
sub73230-22130
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
sub73230-22150
DARK BROWN,BROWN,TRIM4#
sub73230-22150
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73241PROTECTOR OR CASE, BELT RETRACTOR
RH
LH
73310BCAP (FOR REAR SEAT OUTER BELT)
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
sub73178-12010
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
sub73178-12010
BLUE,BLUE,TRIM8#
sub73178-12010
DEEP MAROON,RED/MAROON,TRIM3#
sub73178-12010
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM0#,4#
sub73178-12010
73330BELT ASSY, REAR SEAT LAP TYPE, RH
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
NEW ZEALAND SPEC,DEEP MAROON,RED/MAROON,TRIM3#
sub73350-20010
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
sub73350-20010
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM4#
sub73350-20010
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
sub73350-22050
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
sub73350-22050
WEST GERMANY SPEC,DARK BROWN,BROWN,TRIM0#,4#
sub73350-22050
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
RR BELT=*ELR,DEEP MAROON,RED/MAROON,TRIM3#
sub73350-91601
RR BELT=*ELR,DARK BROWN,BROWN,TRIM4#
sub73350-91601
WEST GERMANY SPEC,BLACK,BLACK,TRIM2#
sub73350-91603
WEST GERMANY SPEC,BLUE,BLUE,TRIM8#
sub73350-91603
WEST GERMANY SPEC,DARK BROWN,BROWN,TRIM4#
sub73350-91603
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
sub73360-22080
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM4#
sub73360-22080
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM0#,4#
sub73360-22080
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
NEW ZEALAND SPEC,DEEP MAROON,RED/MAROON,TRIM3#
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM4#
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
*ELR,DEEP MAROON,RED/MAROON,TRIM3#
*ELR,D-BROWN,BROWN,TRIM4#
*ELR,BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
*ELR,DEEP MAROON,RED/MAROON,TRIM3#
*ELR,DARK BROWN,BROWN,TRIM4#
*ELR,BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM4#
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM0#,4#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
NEW ZEALAND SPEC,DEEP MAROON,RED/MAROON,TRIM3#
NEW ZEALAND SPEC,D-BROWN,BROWN,TRIM4#
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73374SPACER, REAR SEAT SHOULDER BELT
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM0#,4#
sub73380-22061
DARK BROWN,BROWN,TRIM4#
sub73380-22061
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
sub73380-22070
NEW ZEALAND SPEC,DEEP MAROON,RED/MAROON,TRIM3#
sub73380-22070
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
sub73380-22070
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM0#,4#
sub73380-22070
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM4#
sub73380-22070
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
sub73380-22070
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
*ELR,DEEP MAROON,RED/MAROON,TRIM3#
*ELR,DARK BROWN,BROWN,TRIM4#
*ELR,BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM0#,4#
sub73380-22061
DEEP MAROON,RED/MAROON,TRIM3#
sub73380-22061
DARK BROWN,BROWN,TRIM4#
sub73380-22061
NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#
sub73380-22070
NEW ZEALAND SPEC,DEEP MAROON,RED/MAROON,TRIM3#
sub73380-22070
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
sub73380-22070
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM4#
sub73380-22070
NEW ZEALAND SPEC,DARK BROWN,BROWN,TRIM0#,4#
sub73380-22070
NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#
sub73380-22070
*ELR,DEEP MAROON,RED/MAROON,TRIM3#
*ELR,DARK BROWN,BROWN,TRIM4#
*ELR,BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
9010911005
main90109-11005
9016450051
main90164-50051
9020509001
main90205-09001
9020615002
main90206-15002
9038711009
main90387-11009
9056010015
main90560-10015
9165161020
main91651-61020
9165161022
main91651-61022
9451101100
main94511-01100

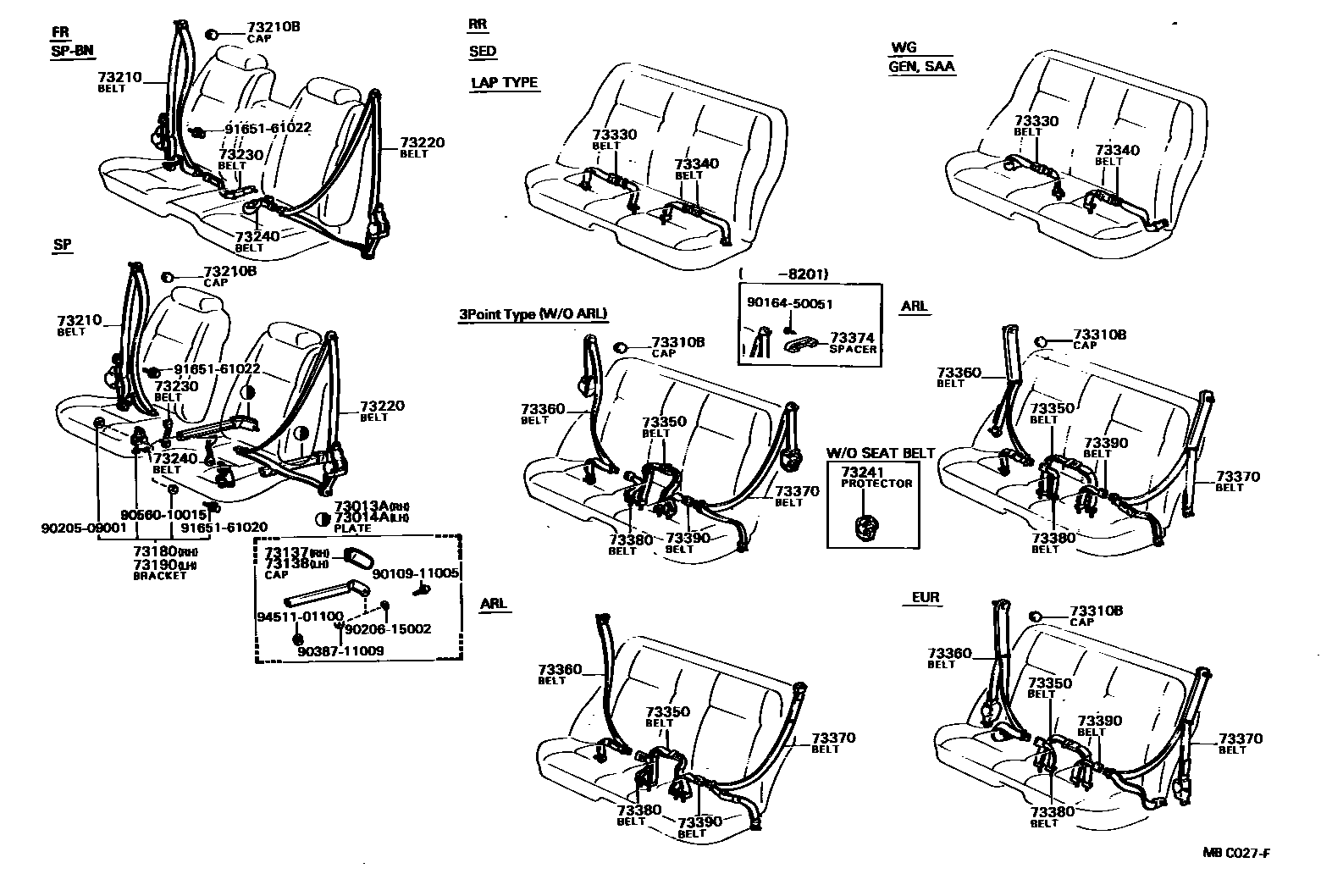

30 parts on this diagram · 1 diagram in section
