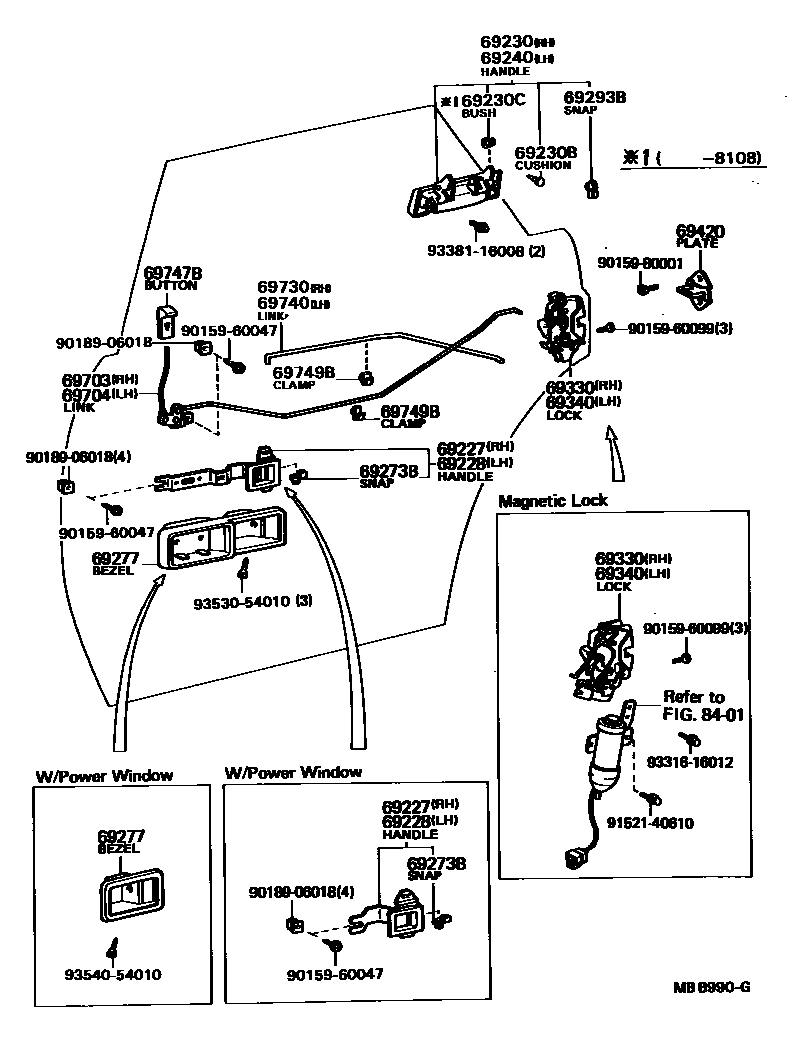

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69206-30010iGX6#,MX6#,RX60..GL,SXL¥1,660198009-198504

W/*PW

main69208-22030iRX60..RHD..GL..EUG¥2,410198009-198504

W/O *PW

69228HANDLE, REAR DOOR INSIDE, LH

main69205-30010iGX6#,MX6#,RX60..GL,SXL¥1,660198009-198504

W/*PW

main69207-22030iRX60..RHD..GL..EUG¥2,440198009-198504

W/O *PW

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-22040iLX60,MX62,RX60¥4,350198009-198101

main69210-22050iGX6#,LX60,MX6#,RX6#,TX62¥3,570198101-198504

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iGX6#,LX60,MX6#,RX6#,TX62¥310198009-198504

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main69395-20020iLX60,MX62,RX6#,TX62¥260198009-198108

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-22040iLX60,MX62,RX60¥4,170198009-198101

main69220-22050iGX6#,LX60,MX6#,RX6#,TX62¥3,570198101-198504

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69279-12020iGX6#,LX60,MX6#,RX6#,TX62¥240198009-198504

LH

main69288-12010iGX6#,LX60,MX6#,RX6#,TX62¥240198009-198504

RH

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-01iMX62,RX60..GL,SXL198009-198208

W/*PW,BLACK,BLACK,TRIM2#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-04iMX62,RX60..GL,SXL198009-198208

W/*PW,BLUE,BLUE,TRIM8#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-06iGX6#,MX6#,RX60..GL,SXL198009-198504

W/*PW,D-BROWN,BROWN,TRIM4#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-14iGX6#,MX6#,RX60..GL198208-198504

W/*PW,BLUE,BLUE,TRIM8#

sub69277-16040¥670

sub69277-89104¥670

main69277-16040-22iGX6#,MX6#,RX60..GL198208-198504

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub69277-16040¥670

sub69277-89104¥670

main69277-22040-01iRX60..RHD..GL..EUG198009-198208

RH,W/O *PW,BLACK,BLACK,TRIM2#

sub69277-22040¥2,610

main69277-22040-02iLX60,RX60,TX62..DLX,STD198208-198504

RH,W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

sub69277-22040¥2,610

main69277-22040-04iRX60..RHD..GL..EUG198009-198208

RH,W/O *PW,BLUE,BLUE,TRIM8#

sub69277-22040¥2,610

main69277-22040-06iLX60,RX60,TX62..DLX,STD198102-198504

RH,W/O *PW,D-BROWN,BROWN,TRIM4#

sub69277-22040¥2,610

main69277-22040-06iRX60..GL..GEN;RX60..LHD..GL..EUG;LX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

RH,W/O *PW,D-BROWN,BROWN,TRIM0#,4#

sub69277-22040¥2,610

main69277-22040-14iLX60,RX60,TX62..DLX,STD198208-198504

RH,W/O *PW,BLUE,BLUE,TRIM8#

sub69277-22040¥2,610

main69278-22010-01iRX60..RHD..GL..EUG198009-198208

LH,W/O *PW,BLACK,BLACK,TRIM2#

sub69278-22010¥2,610

main69278-22010-02iLX60,RX60,TX62..DLX,STD198208-198504

LH,W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

sub69278-22010¥2,610

main69278-22010-04iRX60..GL..GEN;RX60..LHD..GL..EUG;LX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

LH,W/O *PW,BLUE,BLUE,TRIM8#

sub69278-22010¥2,610

main69278-22010-06iRX60..GL..GEN;RX60..LHD..GL..EUG;LX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

LH,W/O *PW,D-BROWN,BROWN,TRIM0#,4#

sub69278-22010¥2,610

main69278-22010-06iLX60,RX60,TX62..DLX,STD198102-198504

LH,W/O *PW,D-BROWN,BROWN,TRIM4#

sub69278-22010¥2,610

main69278-22010-14iLX60,RX60,TX62..DLX,STD198208-198504

LH,W/O *PW,BLUE,BLUE,TRIM8#

sub69278-22010¥2,610

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-22010iGX6#,LX60,MX6#,RX6#,TX62¥280198108-198504

RH

main69293-22020iGX6#,LX60,MX6#,RX6#,TX62¥280198108-198504

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-22070iGX6#,MX6#,RX60..GL198208-198504

W/*PW

main69330-22070iMX62,RX60..(GL,SXL)..(ARL,SA)198009-198208

W/MAGNET LOCK

main69330-22080iLX60,RX60,TX62..DLX,STD¥7,100198009-198504

main69330-22100iRX60..LHD..GL..(GEN,ME)¥7,200198102-198208

W/MAGNET LOCK

69340LOCK ASSY, REAR DOOR, LH

main69340-22080iGX6#,MX6#,RX60..GL198208-198504

W/*PW

main69340-22080iRX60..LHD..GL..(GEN,ME)198009-198208

W/MAGNET LOCK

main69340-22090iGX61..LHD¥7,100198009-198504

main69340-22110iRX60..LHD..GL..(GEN,ME)¥7,200198102-198208

W/MAGNET LOCK

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-22030iGX6#,LX60,MX6#,RX6#,TX62¥990198009-198504

sub69410-90B01¥660

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-30020-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub69741-30020¥380

sub69741-30030¥340

main69741-30020-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub69741-30020¥380

sub69741-30030¥340

main69741-30020-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub69741-30020¥380

sub69741-30030¥340

main69741-30020-12iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub69741-30020¥380

sub69741-30030¥340

main69741-30020-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub69741-30020¥380

sub69741-30030¥340

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iLX60,MX62,RX6#,TX62¥140198009-198208

main69749-30020iGX6#,LX60,MX6#,RX60,TX62¥280198208-198504

8401

9015960047

main90159-60047¥190

9015960099

main90159-60099¥120

9015980001

main90159-80001¥120

9018906018

main90189-06018¥80

9152140610

main91521-40610¥110

9331616012

main93316-16012¥120

9338116008

main93381-16008¥120

9353054010

main93530-54010¥70

9354054010

main93540-54010¥120

28 parts on this diagram · 1 diagram in section
