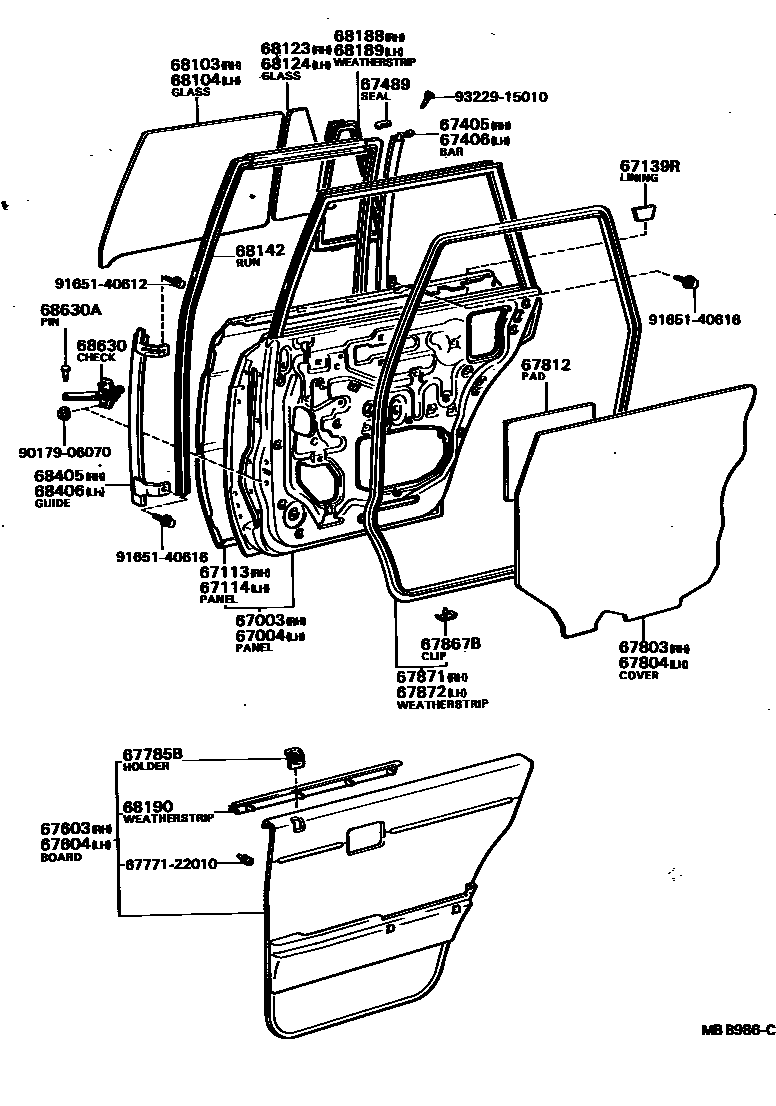

REAR DOOR PANEL & GLASS
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67489SEAL, REAR DOOR DIVISION BAR
RH
LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & GREIGE,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & GREIGE,BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
D-BROWN,DARK BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN & GREIGE,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
W/*PW,BLACK & GRAY,BLACK,TRIM2#
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#
D-BROWN & GREIGE,BROWN,TRIM4#
W/*PW,DEEP MAROON,RED/MAROON,TRIM3#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,D-BROWN,BROWN,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,D-BROWN,DARK BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
WINE,RED/MAROON,TRIM5#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
WINE,RED/MAROON,TRIM5#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
DARK WINE,WINE,TRIM5#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & GREIGE,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & GREIGE,BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
D-BROWN,DARK BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN & GREIGE,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
W/*PW,BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
W/*PW,BLUE,BLUE,TRIM8#
D-BROWN & GREIGE,BROWN,TRIM4#
W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#
W/*PW,DEEP MAROON,RED/MAROON,TRIM3#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,D-BROWN,BROWN,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,D-BROWN,DARK BROWN,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
WINE,RED/MAROON,TRIM5#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
WINE,RED/MAROON,TRIM5#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
DARK WINE,WINE,TRIM5#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
DEEP MAROON,RED/MAROON,TRIM3#
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67812PAD, REAR DOOR SILENCER
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
*TEM,T=3.5,BRONZE
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
*TEM,T=3.5,BRONZE
*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
*TEM,T=3.5,BRONZE
*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
*TEM,T=3.5,BRONZE
*TT,T=3.5
68142RUN, REAR DOOR GLASS
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
6777122010WEATHERSTRIP, BACK DOOR TRIM, RH
9017906070
9165140612
9165140616
9322915010
34 parts on this diagram · 1 diagram in section
