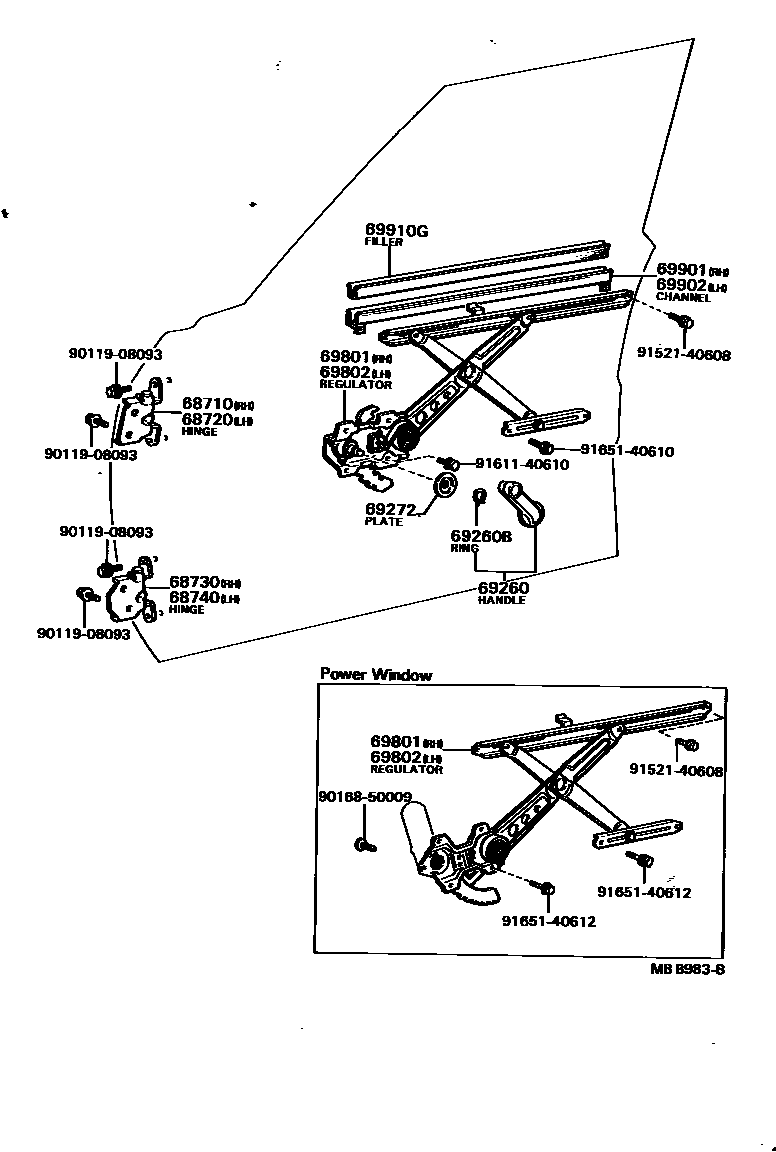

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22040iGX6#,LX60,MX6#,RX6#,TX62198009-198504

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20070iGX6#,LX60,MX6#,RX6#,TX62198009-198504

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20070iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12030-01iLX60,RX60..(DLX,GL)..EUR198009-198208

BLACK,BLACK,TRIM2#

main69260-12030-02iRX60..DLX..SDZ198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main69260-12030-04iLX60,RX60..(DLX,GL)..EUR198009-198208

BLUE,BLUE,TRIM8#

main69260-12030-06iRX60..DLX..SDZ198208-198407

D-BROWN,BROWN,TRIM4#

main69260-12030-14iRX60..DLX..SDZ198208-198407

BLUE,BLUE,TRIM8#

main69260-22020-01iLX60,RX6#,TX62..(DLX,GL,STD,XL)..(GEN,SA)198009-198208

BLACK,BLACK,TRIM2#

sub69260-22020

sub69260-14030

main69260-22020-04iLX60,RX6#,TX62..(DLX,GL,STD,XL)..(GEN,SA)198009-198208

BLUE,BLUE,TRIM8#

sub69260-22020

sub69260-14030

main69260-22020-14iLX60,RX60,TX62..(DLX,STD)..(GEN,SA)198208-198504

BLUE,BLUE,TRIM8#

sub69260-22020

sub69260-14030

main69260-22020-16iLX60,RX6#,TX62..(DLX,GL,STD,XL)..(GEN,SA)198009-198208

D-BROWN,BROWN,TRIM0#,4#

sub69260-22020

sub69260-14030

main69260-22020-16iLX60,RX60,TX62..(DLX,STD)..(GEN,SA)198208-198504

D-BROWN,BROWN,TRIM4#

sub69260-22020

sub69260-14030

main69260-22020-22iLX60,RX60,TX62..(DLX,STD)..(GEN,SA)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub69260-22020

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iGX61,LX60,RX60..LHD..EUG198208-198407

sub90520-01274

main90520-01274iRX60..GL..(GEN,ME);RX60..LHD..GL..EUG;LX60,RX60,TX62..DLX,STD198009-198208

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010iRX60..GL..(GEN,ME);RX60..LHD..GL..EUG;LX60,RX60,TX62..DLX,STD198009-198504

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22070iLX60,RX60..LHD..DLX..EUR198009-198011

W/*PW

main69801-22071iGX6#,MX6#,RX60..GL198011-198504

W/*PW

main69810-22100iRX60..RHD..GL..EUG198009-198504

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22070iLX60,RX60..LHD..DLX..EUR198009-198011

W/*PW

main69802-22071iGX6#,MX6#,RX60..GL198011-198504

W/*PW

main69820-22090iRX60..GL..(GEN,ME);RX60..LHD..GL..EUG;LX60,RX6#,TX62..DLX,STD,XL198009-198504

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-22060iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-22020iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69910GFILLER, FRONT DOOR GLASS CHANNEL

main69971-22040iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub69971-95110

9011908093

main90119-08093

9016850009

main90168-50009

9152140608

main91521-40608

9161140610

main91611-40610

9165140610

main91651-40610

9165140612

main91651-40612

18 parts on this diagram · 1 diagram in section
