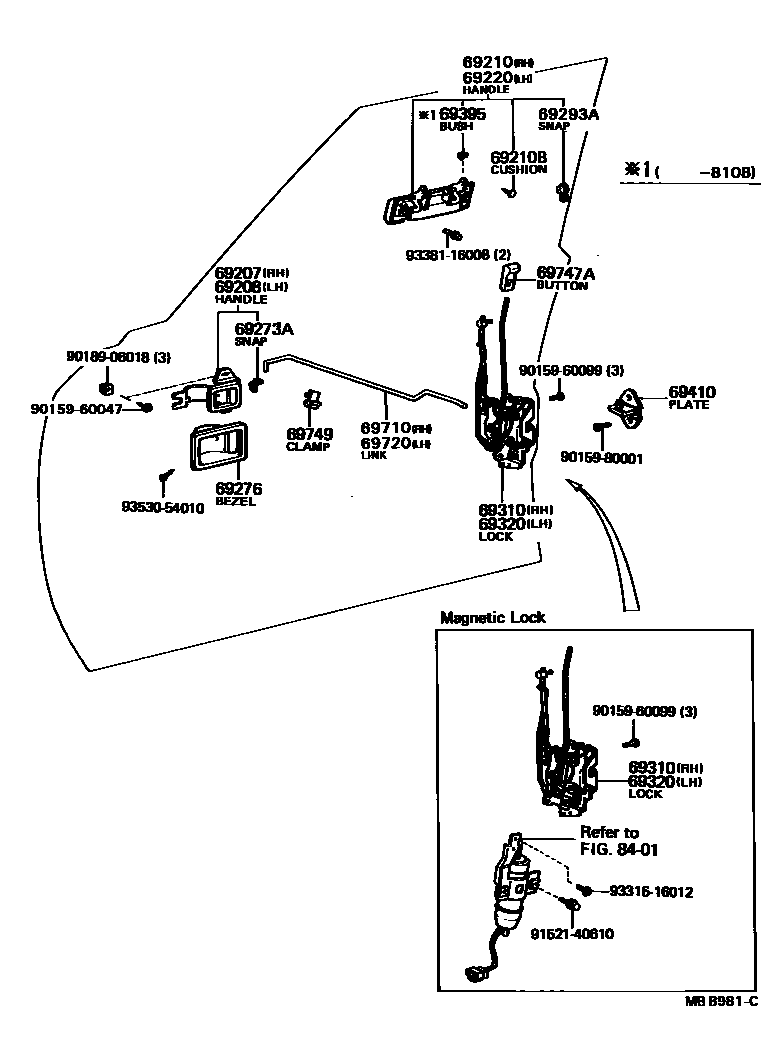

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22040iLX60,MX62,RX60198009-198101

main69210-22050iGX6#,LX60,MX6#,RX6#,TX62198101-198504

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22040iLX60,MX62,RX60198009-198101

main69220-22050iGX6#,LX60,MX6#,RX6#,TX62198101-198504

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69279-12020iGX6#,LX60,MX6#,RX6#,TX62198009-198504

RH

main69288-12010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-16040-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub69277-16040

sub69277-89104

main69277-16040-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub69277-16040

sub69277-89104

main69277-16040-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub69277-16040

sub69277-89104

main69277-16040-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub69277-16040

sub69277-89104

main69277-16040-22iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-16040

sub69277-89104

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-22010iGX6#,LX60,MX6#,RX6#,TX62198108-198504

RH

main69293-22020iGX6#,LX60,MX6#,RX6#,TX62198108-198504

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-22110iGX6#,MX6#,RX60..RHD..GL198208-198504

W/*PW

main69310-22110iMX62,RX60..(GL,SXL)..(ARL,SA)198009-198208

W/MAGNET LOCK

main69310-22120iLX60,RX60..LHD..DLX198009-198407

main69310-22140iRX60..RHD..(DLX,GL,XL);LX60,MX62,RX62,TX62..RHD..(DLX,STD,XL)198009-198504

main69310-22150iGX6#,RX60..LHD..GL198208-198407

W/*PW

main69310-22150iRX60..LHD..GL..(GEN,ME)198009-198208

W/MAGNET LOCK

69320LOCK ASSY, FRONT DOOR, LH

main69320-22100iMX62,RX60..(GL,SXL)..(ARL,SA)198009-198208

W/MAGNET LOCK

main69320-22100iGX6#,MX6#,RX60..RHD..GL198208-198504

W/*PW

main69320-22110iGX61..LHD198009-198407

main69320-22130iLX60,RX60,TX62..RHD..(DLX,STD)198009-198504

main69320-22140iGX6#,RX60..LHD..GL198208-198407

W/*PW

main69320-22140iRX60..LHD..GL..(GEN,ME)198009-198208

W/MAGNET LOCK

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69395-20020iLX60,MX62,RX6#,TX62198009-198108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub69410-90B01

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-30020-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub69741-30020

sub69741-30030

main69741-30020-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub69741-30020

sub69741-30030

main69741-30020-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub69741-30020

sub69741-30030

main69741-30020-12iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub69741-30020

sub69741-30030

main69741-30020-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub69741-30020

sub69741-30030

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iLX60,MX62,RX6#,TX62198009-198208

main69749-30020iGX6#,LX60,MX6#,RX60,TX62198208-198504

8401

9015960047

main90159-60047

9015960099

main90159-60099

9015980001

main90159-80001

9018906018

main90189-06018

9152140610

main91521-40610

9331616012

main93316-16012

9338116008

main93381-16008

9353054010

main93530-54010

25 parts on this diagram · 1 diagram in section
