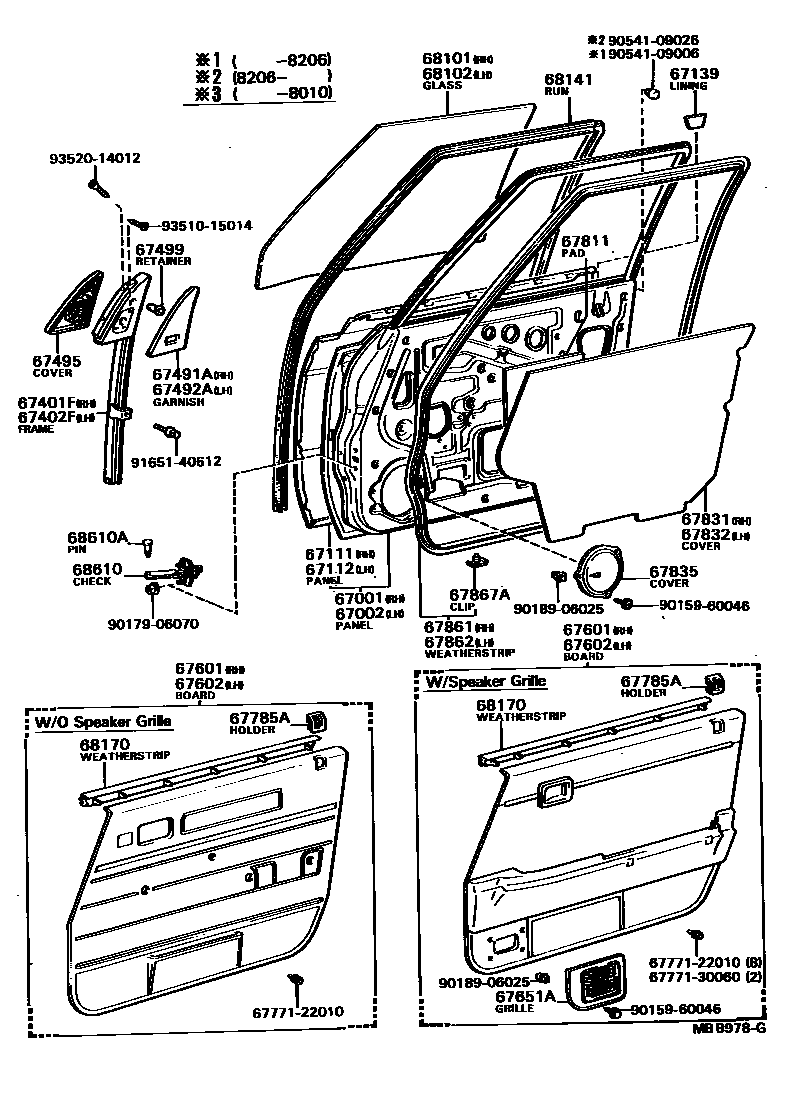

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22150iLX60,RX60..EUR,GEN198009-198203

sub67001-22151

sub82711-30400

sub82817-22360

main67001-22151iLX60,RX60..GEN198203-198206

sub67001-22152

sub90541-09026

main67001-22152iGX60,LX60,RX60..GEN198206-198407

sub67001-22192

main67001-22170iMX62,RX60..ARL,ME,SAA198009-198203

sub67001-22171

sub82711-30400

sub82817-22360

main67001-22171iMX62,RX60..ARL,ME198203-198206

sub67001-22172

sub90541-09026

main67001-22172iGX60,MX62,RX60..ARL,ME198206-198407

sub67001-22182

main67001-22190iLX60,RX6#,TX62..EUR,SA198105-198203

sub67001-22191

sub82711-30400

sub82817-22360

main67001-22191iLX60,RX6#,TX62..EUR,SA198203-198206

sub67001-22192

sub90541-09026

main67001-22192iRX60..LHD..5F..GEN;GX60,RX60..RHD..GEN198208-198407

W/*GIS

main67001-22192iGX6#,LX60,MX63,RX6#,TX62..EUR,SA198206-198504

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22140iLX60,RX6#,TX62..EUR,SA198105-198203

sub67002-22141

sub82817-22360

main67002-22141iLX60,RX6#,TX62..EUR,SA198203-198206

sub67002-22142

sub90541-09026

main67002-22142iGX6#,LX60,MX63,RX6#,TX62..EUR,SA198206-198504

main67002-22142iRX60..LHD..5F..GEN;GX60,RX60..RHD..GEN198208-198407

W/*GIS

main67002-22170iLX60,RX60..EUR,GEN198009-198203

sub67002-22171

sub82817-22360

main67002-22171iLX60,RX60..GEN198203-198206

sub67002-22172

sub90541-09026

main67002-22172iGX60,LX60,RX60..GEN198206-198407

sub67002-22142

main67002-22180iMX62,RX60..ARL,ME,SAA198009-198203

sub67002-22181

sub82817-22360

main67002-22181iMX62,RX60..ARL,ME198203-198206

sub67002-22182

sub90541-09026

main67002-22182iGX60,MX62,RX60..ARL,ME198206-198407

sub67002-22192

67111PANEL, FRONT DOOR, OUTER RH

main67111-22100iLX60,MX62,RX6#,TX62198009-198206

sub67111-22101

main67111-22101iGX60,LX60,MX62,RX60..ARL,GEN,ME198206-198407

sub67111-22111

main67111-22111iGX60,RX60..RHD..GEN198206-198407

W/*GIS

main67111-22111iGX61,LX60,MX63,RX6#,TX62..EUR,SA198206-198504

67112PANEL, FRONT DOOR, OUTER LH

main67112-22110iLX60,MX62,RX6#,TX62198009-198206

sub67112-22111

main67112-22111iGX60,LX60,MX62,RX60..ARL,GEN,ME198206-198407

sub67112-22121

main67112-22121iGX60,RX60..RHD..GEN198206-198407

W/*GIS

main67112-22121iGX61,LX60,MX63,RX6#,TX62..EUR,SA198206-198504

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-12010iLX60,MX62,RX6#,TX62198009-198208

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22070iLX60,MX62,RX6#,TX62198009-198108

main67401-22071iGX6#,LX60,MX62,RX6#,TX62198108-198304

sub67401-22072

main67401-22072iGX6#,LX60,MX6#,RX60,TX62198304-198504

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22070iLX60,MX62,RX6#,TX62198009-198108

main67402-22071iGX6#,LX60,MX62,RX6#,TX62198108-198304

sub67402-22072

main67402-22072iGX6#,LX60,MX6#,RX60,TX62198304-198504

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22010iLX60,MX62,RX6#..DLX,GL,SXL,XL198009-198108

W/DOOR MIRROR AT RH SIDE

main67491-22011iGX61,LX60,RX60,TX62198108-198304

W/DOOR MIRROR AT RH SIDE

sub67491-22012

main67491-22012iGX61,LX60,RX60,TX62198304-198504

W/DOOR MIRROR AT RH SIDE

main67491-22020iLX60..WG;LX60..SED..GEN;RX60..LHD..EUR;RX60..GEN,ME,SAA;LX60..SED..LHD..EUG198009-198108

W/O DOOR MIRROR AT RH SIDE

main67491-22021iRX6#,TX62..(DLX,STD,XL)..SA198108-198407

W/O DOOR MIRROR AT RH SIDE

sub67491-22022

main67491-22021iGX60,MX62198208-198304

W/*RCM MOTER TYPE AT RH SIDE

sub67491-22022

main67491-22022iGX60,MX6#198304-198504

W/*RCM MOTER TYPE AT RH SIDE

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22010iMX62;LX60,RX60..LHD..(DLX,GL)198009-198108

W/DOOR MIRROR AT LH SIDE

main67492-22011iLX60,MX62,RX60198108-198304

W/DOOR MIRROR AT LH SIDE

sub67492-22012

main67492-22012iGX61,LX60,RX60,TX62198304-198504

W/DOOR MIRROR AT LH SIDE

main67492-22020iLX60,RX6#,TX62..RHD198009-198108

W/O DOOR MIRROR AT LH SIDE

main67492-22021iRX60..RHD..GEN198108-198304

W/O DOOR MIRROR AT LH SIDE

sub67492-22022

main67492-22021iRX60..RHD..GEN198208-198304

W/*RCM MOTER TYPE AT LH SIDE

sub67492-22022

main67492-22022iRX60..RHD..GEN198304-198407

W/O DOOR MIRROR AT LH SIDE

main67492-22022iGX60,MX6#198304-198504

W/*RCM MOTER TYPE AT LH SIDE

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-22010iLX60,MX62,RX6#,TX62198009-198108

RH

main67495-22011iLX60,RX60,TX62198108-198504

RH

main67496-22010iLX60,MX62,RX6#,TX62198009-198108

LH

main67496-22011iLX60,RX60,TX62198108-198504

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iGX6#,LX60,MX62,RX6#,TX62198009-198504

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-22780-01iLX60,TX62..STD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67610-22780-04iLX60,TX62..STD198009-198208

BLUE,BLUE,TRIM8#

main67610-22780-06iLX60,TX62..STD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22790-01iLX60,RX6#..DLX,XL198009-198208

BLACK & GRAY,BLACK,TRIM2#

sub67650-22110

main67610-22790-04iLX60,RX6#..DLX,XL198009-198208

BLUE,BLUE,TRIM8#

sub67650-22110

main67610-22790-06iLX60,RX6#..DLX,XL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

sub67650-22110

main67610-22790-08iLX60,MX62,RX6#..DLX,XL198009-198208

IVORY,IVORY,TRIM0#

sub67650-22110

main67610-22791-02iLX60,RX60..DLX198208-198307

DEEP MAROON,RED/MAROON,TRIM3#

sub67650-22110

main67610-22791-04iLX60,RX60..DLX198208-198307

BLUE,BLUE,TRIM8#

sub67650-22110

main67610-22791-06iLX60,RX60..DLX..EUR198208-198307

D-BROWN,BROWN,TRIM4#

sub67650-22110

main67610-22800-01iRX60..GL..GEN;RX60..LHD..GL..EUG198009-198108

BLACK & GRAY,BLACK,TRIM2#

main67610-22800-04iRX60..GL..GEN;RX60..LHD..GL..EUG198009-198108

BLUE,BLUE,TRIM8#

main67610-22800-06iRX60..GL..GEN;RX60..LHD..GL..EUG198009-198108

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22801-01iRX60..GL..GEN;RX60..LHD..GL..EUG198108-198208

BLACK & GRAY,BLACK,TRIM2#

main67610-22801-04iRX60..GL..GEN;RX60..LHD..GL..EUG198108-198208

BLUE,BLUE,TRIM8#

main67610-22801-06iRX60..GL..GEN;RX60..LHD..GL..EUG198108-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22802-02iGX61..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67610-22802-04iGX61..LHD198208-198308

BLUE,BLUE,TRIM8#

main67610-22802-06iGX61..LHD198208-198308

D-BROWN,BROWN,TRIM4#

main67610-22802-14iGX61..LHD198308-198407

BLUE,BLUE,TRIM8#

main67610-22802-16iGX61..LHD198308-198407

D-BROWN,DARK BROWN,TRIM4#

main67610-22860-01iMX62..DLX198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67610-22860-04iMX62..DLX198009-198208

BLUE,BLUE,TRIM8#

main67610-22860-06iMX62..DLX198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22870-01iMX62,RX60..GL,SXL198009-198108

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67610-22870-04iMX62,RX60..GL,SXL198009-198108

W/*PW,BLUE,BLUE,TRIM8#

main67610-22870-06iMX62,RX60..GL,SXL198009-198108

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22871-01iMX62,RX60..GL,SXL198108-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67610-22871-04iMX62,RX60..GL,SXL198108-198208

W/*PW,BLUE,BLUE,TRIM8#

main67610-22871-06iMX62,RX60..GL,SXL198108-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67610-22872-02iRX60..GL..(GEN,ME)198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

main67610-22872-04iRX60..GL..(GEN,ME)198208-198308

BLUE,BLUE,TRIM8#

main67610-22872-06iRX60..GL..(GEN,ME)198208-198308

D-BROWN,BROWN,TRIM4#

main67610-22872-12iRX60..GL..(GEN,ME)198208-198308

DARK WINE,WINE,TRIM5#

main67610-22873-02iRX60..GL198308-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67610-22873-04iRX60..GL198308-198407

BLUE,BLUE,TRIM8#

main67610-22873-06iRX60..GL198308-198407

D-BROWN,DARK BROWN,TRIM4#

main67610-22873-12iRX60..GL198308-198407

DARK WINE,WINE,TRIM5#

main67610-2A140-01iLX60,RX60..LHD..DLX..EUR198009-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67610-2A140-04iLX60,RX60..LHD..DLX..EUR198009-198208

W/*PW,BLUE,BLUE,TRIM8#

main67610-2A140-06iLX60,RX60..LHD..DLX..EUR198009-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67650-22060-02iGX61,RX60..GL..EUR198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main67650-22060-04iGX61,RX60..GL..EUR198208-198308

W/*PW,BLUE,BLUE,TRIM8#

main67650-22060-06iGX61,RX60..GL..EUR198208-198308

W/*PW,D-BROWN,BROWN,TRIM4#

main67650-22060-14iGX61198308-198407

W/*PW,BLUE,BLUE,TRIM8#

main67650-22060-16iGX61198308-198407

W/*PW,D-BROWN,DARK BROWN,TRIM4#

main67650-22070-02iGX60,MX62..RHD198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

main67650-22070-04iGX60,MX62198208-198308

BLUE,BLUE,TRIM8#

main67650-22070-06iGX60,MX62198208-198308

D-BROWN,BROWN,TRIM4#

main67650-22070-12iGX60..LHD198208-198308

WINE,RED/MAROON,TRIM5#

main67650-22071-02iGX60,MX6#..RHD198308-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67650-22071-04iGX60,MX6#198308-198504

BLUE,BLUE,TRIM8#

main67650-22071-06iGX60,MX6#198308-198504

D-BROWN,BROWN,TRIM4#

main67650-22071-12iGX60..LHD198308-198407

WINE,RED/MAROON,TRIM5#

main67650-22110-02iLX60,RX60..DLX..(GEN,ME,SA)198304-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67650-22110-04iLX60,RX60..DLX..(GEN,ME,SA)198304-198504

BLUE,BLUE,TRIM8#

main67650-22110-06iLX60,RX60..DLX..EUR198304-198504

D-BROWN,BROWN,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-22640-01iLX60,RX6#..DLX,XL198009-198208

BLACK & GRAY,BLACK,TRIM2#

sub67620-2A140

main67620-22640-04iLX60,RX6#..DLX,XL198009-198208

BLUE,BLUE,TRIM8#

sub67620-2A140

main67620-22640-06iLX60,RX6#..DLX,XL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

sub67620-2A140

main67620-22640-08iLX60,MX62,RX6#..DLX,XL198009-198208

IVORY,IVORY,TRIM0#

sub67620-2A140

main67620-22641-02iLX60,RX60..DLX198208-198307

DEEP MAROON,RED/MAROON,TRIM3#

sub67620-2A140

main67620-22641-04iLX60,RX60..DLX198208-198307

BLUE,BLUE,TRIM8#

sub67620-2A140

main67620-22641-06iLX60,RX60..DLX198208-198307

D-BROWN,BROWN,TRIM4#

sub67620-2A140

main67620-22660-01iLX60,TX62..STD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67620-22660-04iLX60,TX62..STD198009-198208

BLUE,BLUE,TRIM8#

main67620-22660-06iLX60,TX62..STD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22710-01iRX60..GL..GEN;RX60..LHD..GL..EUG198009-198108

BLACK & GRAY,BLACK,TRIM2#

main67620-22710-04iRX60..GL..GEN;RX60..LHD..GL..EUG198009-198108

BLUE,BLUE,TRIM8#

main67620-22710-06iRX60..GL..GEN;RX60..LHD..GL..EUG198009-198108

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22711-01iRX60..GL..GEN;RX60..LHD..GL..EUG198108-198208

BLACK & GRAY,BLACK,TRIM2#

main67620-22711-04iRX60..GL..GEN;RX60..LHD..GL..EUG198108-198208

BLUE,BLUE,TRIM8#

main67620-22711-06iRX60..GL..GEN;RX60..LHD..GL..EUG198108-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22712-02iGX61..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67620-22712-04iGX61..LHD198208-198308

BLUE,BLUE,TRIM8#

main67620-22712-06iGX61..LHD198208-198308

D-BROWN,BROWN,TRIM4#

main67620-22712-14iGX61..LHD198308-198407

BLUE,BLUE,TRIM8#

main67620-22712-16iGX61..LHD198308-198407

D-BROWN,DARK BROWN,TRIM4#

main67620-22810-01iMX62..DLX198009-198208

BLACK & GRAY,BLACK,TRIM2#

main67620-22810-04iMX62..DLX198009-198208

BLUE,BLUE,TRIM8#

main67620-22810-06iMX62..DLX198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22830-01iLX60,RX60..LHD..DLX..EUR198009-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67620-22830-04iLX60,RX60..LHD..DLX..EUR198009-198208

W/*PW,BLUE,BLUE,TRIM8#

main67620-22830-06iLX60,RX60..LHD..DLX..EUR198009-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67620-22840-01iMX62,RX60..GL,SXL198009-198108

W/*PW,BLACK & GRAY,BLACK,TRIM2#

sub67620-22620

main67620-22840-04iMX62,RX60..GL,SXL198009-198108

W/*PW,BLUE,BLUE,TRIM8#

sub67620-22620

main67620-22840-06iMX62,RX60..GL,SXL198009-198108

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

sub67620-22620

main67620-22841-01iMX62,RX60..GL,SXL198108-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

sub67620-22621

main67620-22841-04iMX62,RX60..GL,SXL198108-198208

W/*PW,BLUE,BLUE,TRIM8#

sub67620-22621

main67620-22841-06iMX62,RX60..GL,SXL198108-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

sub67620-22621

main67620-22842-02iRX60..GL..(GEN,ME)198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

sub67620-22622

main67620-22842-04iRX60..GL..(GEN,ME)198208-198308

BLUE,BLUE,TRIM8#

sub67620-22622

main67620-22842-06iRX60..GL..(GEN,ME)198208-198308

D-BROWN,BROWN,TRIM4#

sub67620-22622

main67620-22842-12iRX60..GL..(GEN,ME)198208-198308

DARK WINE,WINE,TRIM5#

sub67620-22622

main67620-22843-02iRX60..GL198308-198407

DEEP MAROON,DEEP MAROON,TRIM3#

sub67620-22623

main67620-22843-04iRX60..GL198308-198407

BLUE,BLUE,TRIM8#

sub67620-22623

main67620-22843-06iRX60..GL198308-198407

D-BROWN,DARK BROWN,TRIM4#

sub67620-22623

main67620-22843-12iRX60..GL198308-198407

DARK WINE,WINE,TRIM5#

sub67620-22623

main67620-2A090-02iGX61,RX60..GL..EUR198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A090-04iGX61,RX60..GL..EUR198208-198308

W/*PW,BLUE,BLUE,TRIM8#

main67620-2A090-06iGX61,RX60..GL..EUR198208-198308

W/*PW,D-BROWN,BROWN,TRIM4#

main67620-2A090-14iGX61198308-198407

W/*PW,BLUE,BLUE,TRIM8#

main67620-2A090-16iGX61198308-198407

W/*PW,D-BROWN,DARK BROWN,TRIM4#

main67620-2A100-02iGX60,MX62..RHD198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A100-04iGX60,MX62198208-198308

BLUE,BLUE,TRIM8#

main67620-2A100-06iGX60,MX62198208-198308

D-BROWN,BROWN,TRIM4#

main67620-2A100-12iGX60..LHD198208-198308

WINE,RED/MAROON,TRIM5#

main67620-2A101-02iGX60,MX6#..RHD198308-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A101-04iGX60,MX6#198308-198504

BLUE,BLUE,TRIM8#

main67620-2A101-06iGX60,MX6#198308-198504

D-BROWN,BROWN,TRIM4#

main67620-2A101-12iGX60..LHD198308-198407

WINE,RED/MAROON,TRIM5#

main67620-2A140-02iLX60,RX60..DLX..EUR198304-198504

DEEP MAROON,RED/MAROON,TRIM3#

main67620-2A140-04iLX60,RX60..DLX..EUR198304-198504

BLUE,BLUE,TRIM8#

main67620-2A140-06iLX60,RX60..DLX..(GEN,ME,SA)198304-198504

D-BROWN,BROWN,TRIM4#

67651AGRILLE, SPEAKER DOOR

main67651-22010-01iLX60,MX62,RX6#..DLX,GL,SXL,XL198009-198208

RH,BLACK & GRAY,BLACK,TRIM2#

sub67651-22010

main67651-22010-02iGX6#,LX60,MX6#,RX60198208-198504

RH,DEEP MAROON,RED/MAROON,TRIM3#

sub67651-22010

main67651-22010-04iLX60,MX62,RX6#..DLX,GL,SXL,XL198009-198208

RH,BLUE,BLUE,TRIM8#

sub67651-22010

main67651-22010-06iGX6#,LX60,MX6#,RX6#..DLX,GL,SXL,XL198009-198504

RH,D-BROWN & GREIGE,BROWN,TRIM4#

sub67651-22010

main67651-22010-14iGX6#,LX60,MX6#,RX60198208-198504

RH,BLUE,BLUE,TRIM8#

sub67651-22010

main67652-22010-01iLX60,MX62,RX6#..DLX,GL,SXL,XL198009-198208

LH,BLACK & GRAY,BLACK,TRIM2#

sub67652-22010

main67652-22010-02iGX6#,LX60,MX6#,RX60198208-198504

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub67652-22010

main67652-22010-04iLX60,MX62,RX6#..DLX,GL,SXL,XL198009-198208

LH,BLUE,BLUE,TRIM8#

sub67652-22010

main67652-22010-06iGX6#,LX60,MX6#,RX6#..DLX,GL,SXL,XL198009-198504

LH,D-BROWN & GREIGE,BROWN,TRIM4#

sub67652-22010

main67652-22010-14iGX6#,LX60,MX6#,RX60198208-198504

LH,BLUE,BLUE,TRIM8#

sub67652-22010

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main67785-22020-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub67785-22020

main67785-22020-02iGX6#,LX60,MX62,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub67785-22020

main67785-22020-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub67785-22020

main67785-22020-06iRX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub67785-22020

main67785-22020-14iGX6#,LX60,MX62,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub67785-22020

67811PAD, FRONT DOOR SILENCER

main67812-22040iGX6#,LX60,MX63,RX6#,TX62..EUR,GEN,SA198009-198504

sub67812-12010

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

67835COVER, FRONT DOOR SPEAKER HOLE

main67803-22060iLX60,RX60..LHD..(EUR,GEN)198009-198504

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22070iLX60,MX62,RX60198009-198104

sub67861-22071

main67861-22071iGX6#,LX60,MX6#,RX6#,TX62198104-198401

sub67861-22072

main67861-22072iGX6#,LX60,MX6#,RX60,TX62198401-198504

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22070iLX60,MX62,RX60198009-198104

sub67862-22071

main67862-22071iGX6#,LX60,MX6#,RX6#,TX62198104-198401

sub67862-22072

main67862-22072iGX6#,LX60,MX6#,RX60,TX62198401-198504

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iGX6#,LX60,MX6#,RX6#,TX62198009-198504

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

*TT,T=4.0

main68111-22110iLX60..STD198009-198208

*TEM,T=4.0

sub68111-22090

main68111-22140iGX60,RX60..GL..(GEN,ME)198208-198407

*TEM,T=4.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

*TT,T=4.0

main68112-22110iLX60..STD198009-198208

*TEM,T=4.0

sub68112-22090

main68112-22140iGX60,RX60..GL..(GEN,ME)198208-198407

*TEM,T=4.0,BRONZE

68141RUN, FRONT DOOR GLASS

main68141-22050iGX6#,LX60,MX6#,RX6#,TX62198009-198504

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-22070iLX60,MX62,RX60198009-198010

RH

main68170-22071iGX6#,LX60,MX6#,RX6#,TX62198010-198504

RH

main68220-22040iLX60,MX62,RX60198009-198010

LH

main68220-22041iGX6#,LX60,MX6#,RX6#,TX62198010-198504

LH

68610CHECK ASSY, FRONT DOOR

main68610-22020iGX6#,LX60,MX6#,RX6#,TX62198009-198504

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iGX6#,LX60,MX6#,RX60,TX62198406-198504

sub68617-90A00

main68617-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198406

sub68617-12010

6777122010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22010

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9015960046

main90159-60046

9017906070

main90179-06070

9018906025

main90189-06025

9054109006

main90541-09006

9054109026

main90541-09026

9165140612

main91651-40612

9352014012

main93520-14012

37 parts on this diagram · 1 diagram in section
