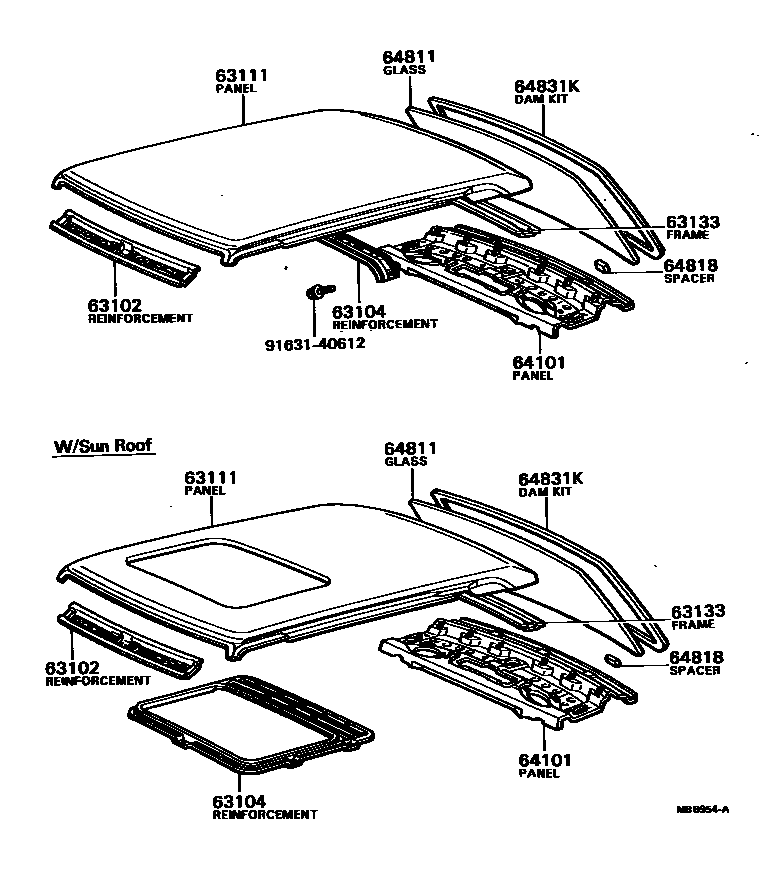

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-22060iLX60,MX62,RX6#,TX62..DLX,STD,XL198009-198504

sub63102-22070

main63102-22060iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198009-198504

W/SUN ROOF

sub63102-22070

main63102-22070iGX6#,MX6#,RX60..GL,SXL198009-198504

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-22060iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

sub63103-22070

main63103-91602iLX60,MX62,RX6#..WG198009-198504

main63142-22010iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198009-198504

W/SUN ROOF

63111PANEL, ROOF

main63111-22080iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main63111-22090iRX60..SED..DLX..SDZ198009-198504

W/SUN ROOF

main63111-91609iLX60,MX62,RX60..WG198009-198107

sub63111-91610

main63111-91610iLX60,MX62,RX6#..WG198107-198504

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-22050iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

64101PANEL SUB-ASSY, UPPER BACK

main64101-22120iMX62..GL198009-198011

sub64101-22121

main64101-22121iMX62..SED198011-198407

main64101-22130iLX60,RX60..SED198009-198011

sub64101-22131

main64101-22131iMX63,RX60,TX62..SED;GX6#,LX60..SED..(EUR,GEN,ME)198011-198504

64811GLASS, BACK WINDOW

main64811-22220iRX60..SED..DLX..ME198009-198504

*TT,T=4.0

sub64811-22230

main64811-22230iMX63,RX60..SED..RHD;RX60..SED..LHD..EUG;RX60..SED..LHD..(GEN,ME,SAA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

*EHTT,T=4.0

main64811-22240iLX60,RX60..SED..LHD..EUR198009-198407

*EHTT,T=4.0,COLD SPEC

main64811-22250iLX60..SED..STD..GEN198009-198208

*TEM,T=4.0

sub64811-22260

main64811-22260iLX60..SED..STD198009-198208

*EHT,T=4.0

sub64811-22230

main64811-22320iGX60,RX60..GL..(GEN,ME)198208-198407

*TEM,T=4.0,BRONZE

64818SPACER, BACK WINDOW GLASS

main56116-30020iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

sub56116-24010

64831KDAM KIT, BACK WINDOW GLASS

main04562-30030iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

sub04562-30040

9163140612

main91631-40612

9 parts on this diagram · 3 diagrams in section
