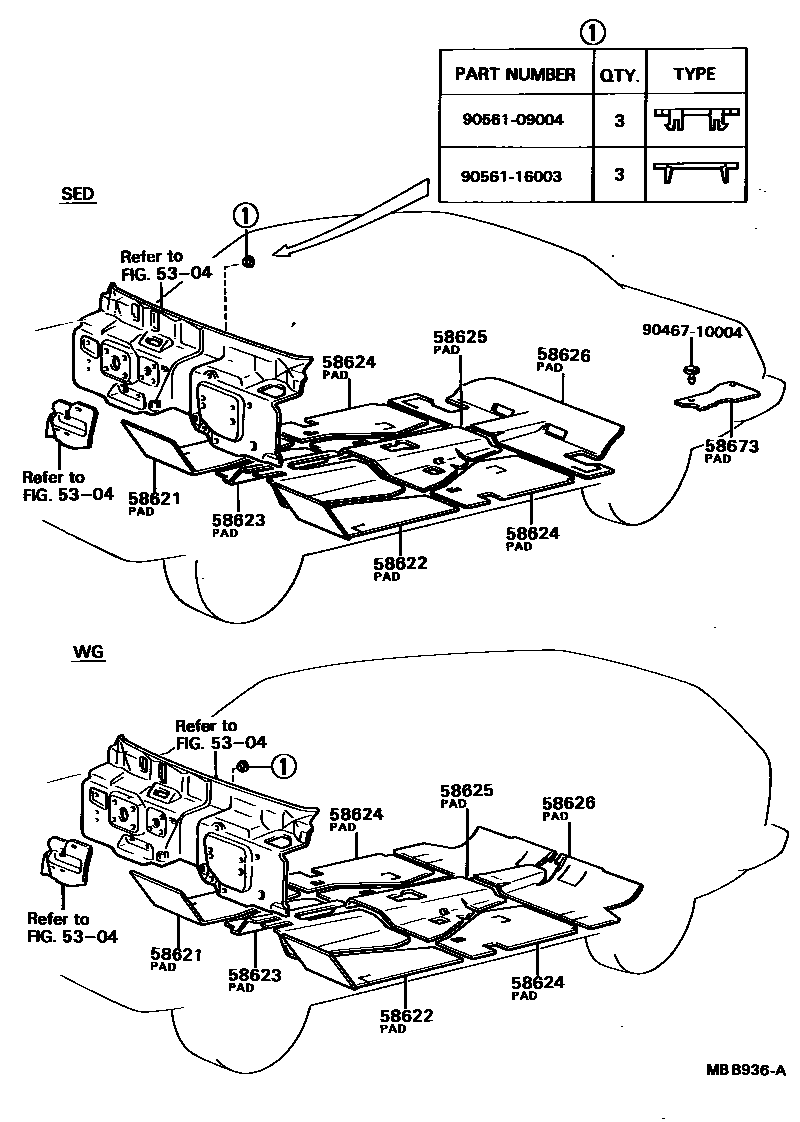

DASH SILENCER BOARD & FLOOR SILENCER PAD

5304

58621PAD, FLOOR SILENCER, FRONT RH

main58621-22070iLX60..STD..GEN198009-198208

58622PAD, FLOOR SILENCER, FRONT LH

main58622-22030iLX60..STD..GEN198009-198208

58623PAD, FLOOR SILENCER, FRONT CENTER

main58623-22100iGX6#,MX6#,RX6#,TX62198009-198504

main58623-22120iLX60198009-198407

58624PAD, FLOOR SILENCER, REAR SIDE

main58634-22010iLX60..STD..GEN198009-198208

58625PAD, FLOOR SILENCER, REAR CENTER

main58636-22040iLX60..STD..GEN198009-198208

58626PAD, FLOOR SILENCER, REAR

main58624-22060iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main58624-91605iLX60,MX62,RX6#..WG198009-198504

58673PAD, REAR FLOOR SILENCER, NO.1

main58676-22010iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

9046710004

main90467-10004

9056109004

main90561-09004

9056116003

main90561-16003

11 parts on this diagram · 1 diagram in section
