FLOOR MAT

58511MAT, FLOOR, FRONT

main58510-22750iLX60..RHD..STD198009-198208

main58510-22770iLX60..LHD..STD..GEN198009-198208

58551MAT, FLOOR, REAR

main58540-22340iLX60..STD..GEN198009-198208

58563MAT, REAR FLOOR

main58570-91601-03iLX60..WG..STD..EUG198009-198208

GRAY,GRAY,TRIM2#

main58570-91601-04iLX60..WG..STD..EUG198009-198208

BLUE,BLUE,TRIM8#

main58570-91601-05iLX60..WG..STD..EUG198009-198208

GREIGE,BEIGE,TRIM4#

58563HCLIP(FOR REAR FLOOR MAT)

main90467-07005-03iLX60..WG..STD..EUG198009-198208

GRAY,GRAY,TRIM2#

sub90467-07005

main90467-07005-05iLX60..WG..STD..EUG198009-198208

GREIGE,BEIGE,TRIM4#

sub90467-07005

main90467-07005-14iLX60..WG..STD..EUG198009-198208

BLUE,BLUE,TRIM8#

sub90467-07005

58572SET PLATE, REAR FLOOR MAT, REAR

main58387-91601-01iLX60..WG..STD198009-198208

BLACK,BLACK,TRIM2#

sub58387-91601

main58387-91601-04iLX60..WG..STD..EUG198009-198208

BLUE,BLUE,TRIM8#

sub58387-91601

main58387-91601-06iLX60..WG..STD..EUG198009-198208

D-BROWN,BROWN,TRIM4#

sub58387-91601

58572CCLIP, REAR FLOOR MAT SET

main90467-08114-11iLX60..WG..STD198009-198208

BLACK,BLACK,TRIM2#

sub90467-08114

main90467-08114-24iLX60..WG..STD..EUG198009-198208

BLUE,BLUE,TRIM8#

sub90467-08114

main90467-08114-36iLX60..WG..STD..EUG198009-198208

D-BROWN,BROWN,TRIM4#

sub90467-08114

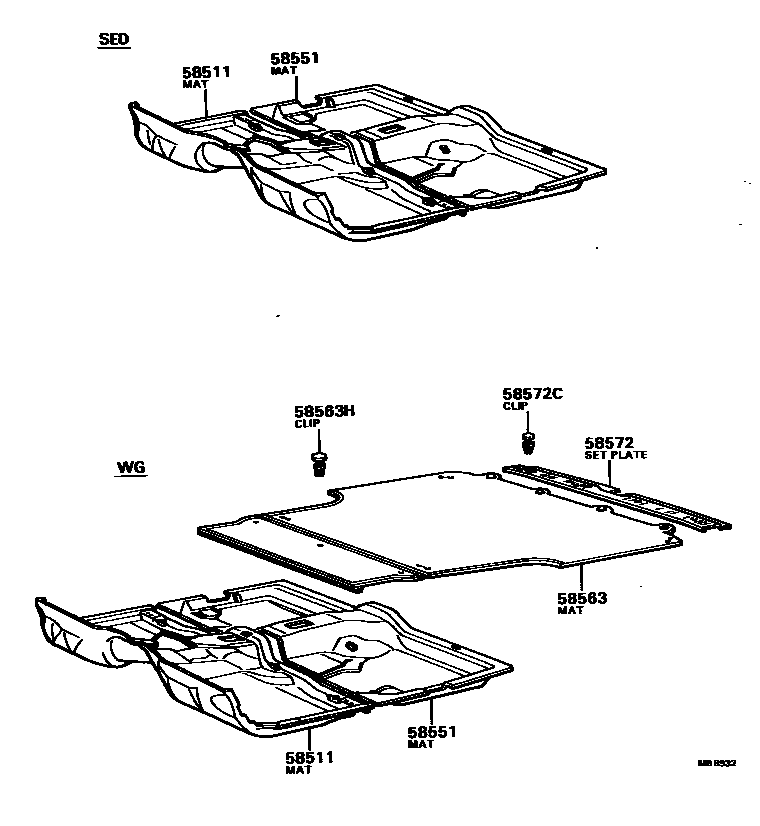

6 parts on this diagram · 1 diagram in section
