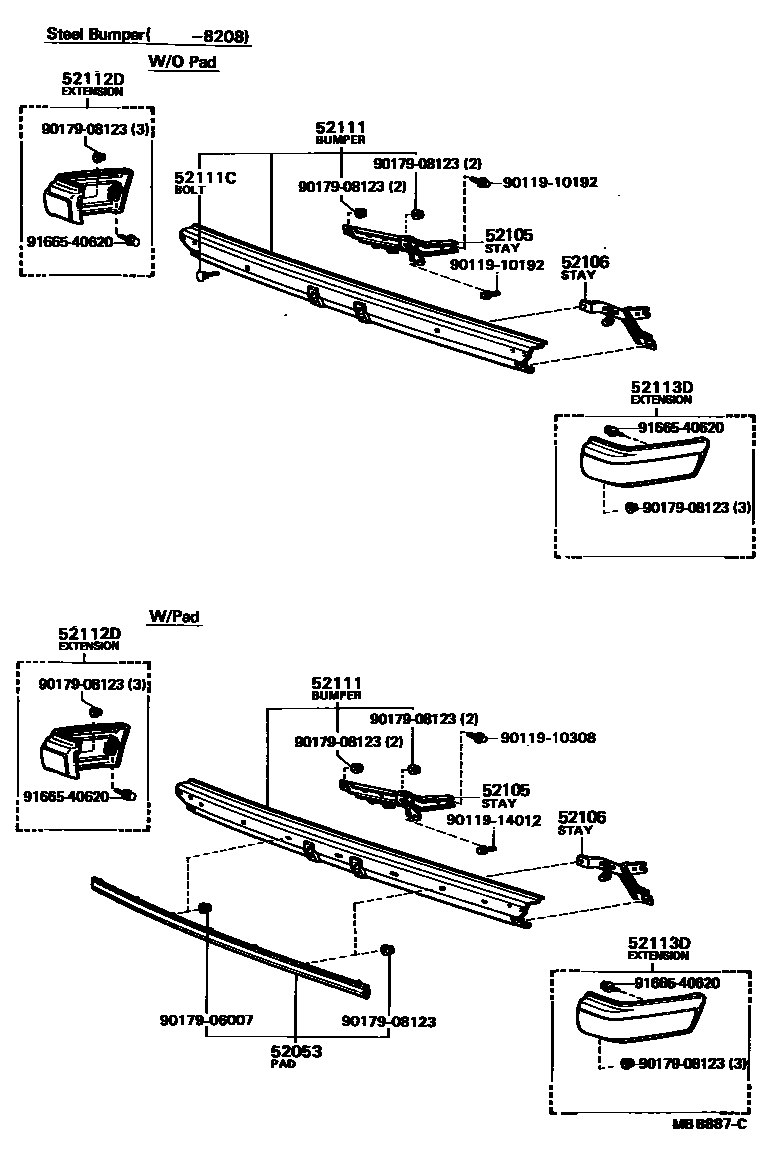

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1

52053PAD SUB-ASSY, FRONT BUMPER

main52051-29095iRX6#..(DLX,XL)..(EUR,GEN,SA)198009-198208

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-22070iRX6#..(DLX,XL)..(EUR,GEN,SA)198009-198208

sub52011-22071

sub94614-11000

main52011-22120iTX62198209-198504

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-22060iRX6#..(DLX,XL)..(EUR,GEN,SA)198009-198208

sub52012-22061

sub94614-11000

main52012-22110iTX62198209-198504

52111BUMPER ASSY, FRONT

main52111-29415iRX6#..(DLX,XL)..(EUR,GEN,SA)198009-198208

PAD

sub52111-29555

main52111-29455iLX60,TX62..STD198009-198208

sub52111-29565

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08043×2iLX60,TX62..STD198009-198504

52112DEXTENSION, FRONT BUMPER, RH

main52102-29055iRX6#..(DLX,XL)..(EUR,GEN,SA)198009-198208

main52102-29115iTX62198209-198504

52113DEXTENSION, FRONT BUMPER, LH

main52103-29155iRX6#..(DLX,XL)..(EUR,GEN,SA)198009-198208

main52103-29175iTX62198209-198504

9011910192

main90119-10192

9011910308

main90119-10308

9011914012

main90119-14012

9017906007

main90179-06007

9017908123

main90179-08123

9166540620

main91665-40620

13 parts on this diagram · 3 diagrams in section
