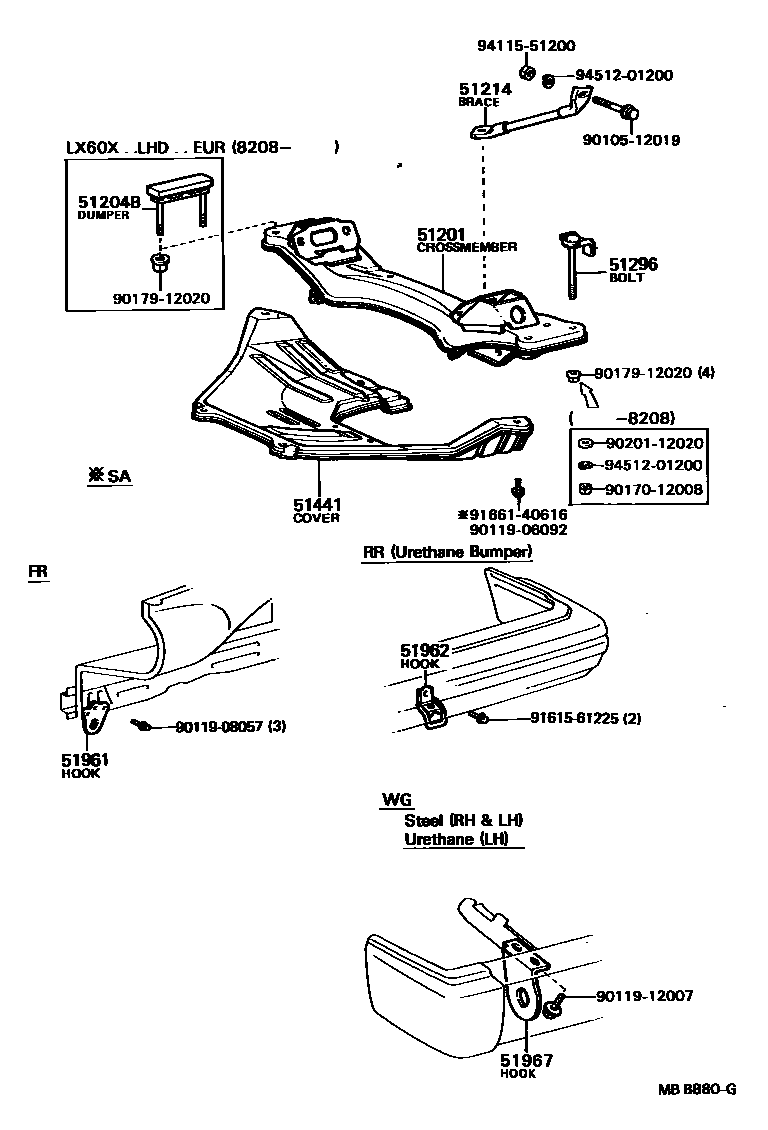

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
sub51201-22141
sub51201-22161
W/PS
sub51201-22181
NEW ZEALAND SPEC
NEW ZEALAND SPEC
W/PS
sub51201-22260
sub51201-22161
51204BDAMPER SUB-ASSY, FRONT SUSPENSION MEMBER
51214BRACE, FRONT SIDE MEMBER TO SUSPENSION CROSSMEMBER
RH
LH
51296BOLT, FRONT SUSPENSION MEMBER MOUNTING
51441COVER, ENGINE UNDER, NO.1
sub51441-22121
sub51441-22122
sub51441-22122
sub51441-22131
sub51441-22122
51961HOOK, NO.1
sub51963-22060
51962HOOK, NO.2
W/URETHANE BUMPER
RH,W/URETHANE BUMPER
51967HOOK, TRANSPORT, REAR
W/STEEL BUMPER
LH,W/URETHANE BUMPER
8017912020
main80179-12020
9010512019
main90105-12019
9011906092
main90119-06092
9011908057
main90119-08057
9011912007
main90119-12007
9017012008
main90170-12008
9017912020
main90179-12020
9020112020
main90201-12020
9161561225
main91615-61225
9166140616
main91661-40616
9411551200
main94115-51200
9451201200
main94512-01200
20 parts on this diagram · 2 diagrams in section
