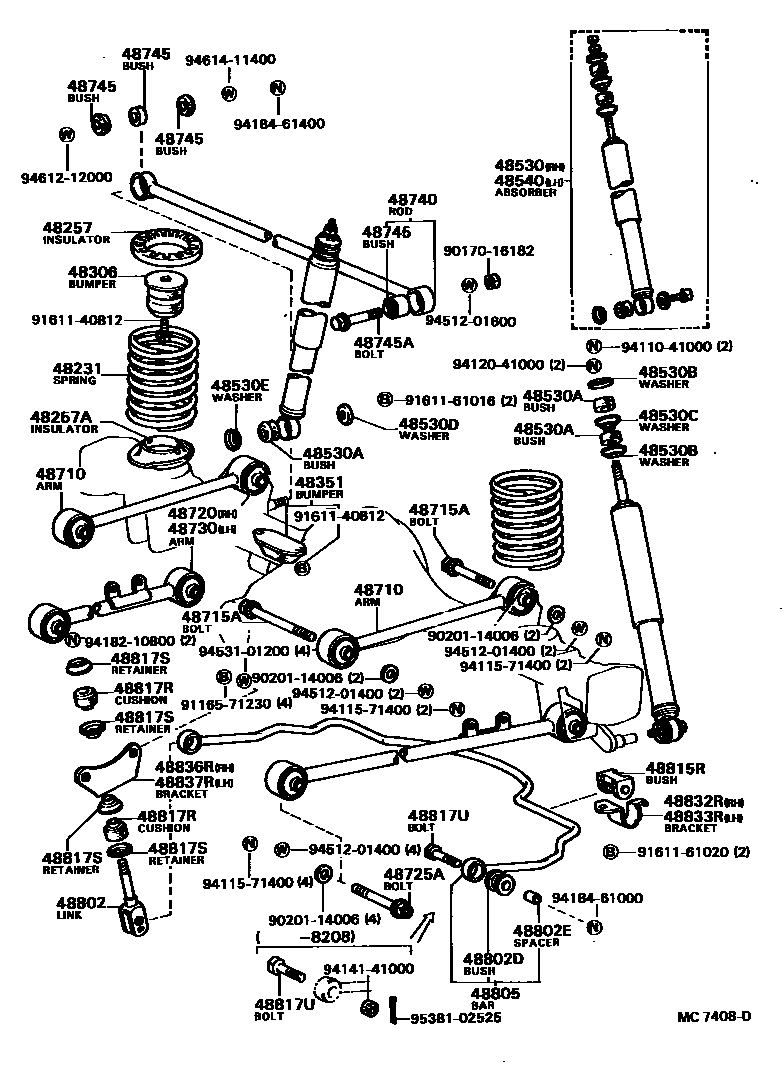

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-22290iRX60..SED..EUR¥13,800198009-198205

main48231-22291iRX60..SED..EUR198205-198208

main48231-22300iMX62..GL¥14,600198009-198208

main48231-22330iRX60,TX62..SED..(GEN,ME,SA,SAA)¥14,500198009-198208

main48231-22450iRX60..SED..EUR¥14,400198208-198407

LH

main48231-22460iRX60..SED..EUR¥14,400198208-198407

RH

main48231-22470iGX60..RHD..GEN;RX60,TX62..SED..RHD¥13,600198208-198504

RH

main48231-22470iGX60..LHD¥13,600198208-198407

LH

main48231-22480iGX60..RHD..GEN;RX60,TX62..SED..RHD¥13,600198208-198504

LH

main48231-22480iGX60..LHD¥13,600198208-198407

RH

main48231-22490iMX62..SED198208-198407

RH

sub48231-22300¥14,600

main48231-22500iMX62..SED198208-198407

LH

sub48231-22330¥14,500

main48231-22570iGX61..RHD¥15,100198208-198407

RH

sub48231-22580¥15,200

main48231-22570iGX61..RHD¥15,100198208-198407

LH

sub48231-22580¥15,200

main48231-22580iGX61..LHD¥15,200198208-198407

RH

main48231-22580iGX61..LHD¥15,200198208-198407

LH

main48231-22610iRX60..SED..ME¥15,200198208-198407

LH

main48231-22610iLX60..SED..LHD¥15,200198208-198407

RH

main48231-22620iRX60..SED..ME¥15,200198208-198407

RH

main48231-22620iRX60..SED..ME¥15,200198208-198407

LH

main48231-22650iRX60..SED..RHD..4F¥13,600198308-198407

RH,INDONESIA SPEC

main48231-22660iRX60..SED..RHD..4F198308-198407

LH,INDONESIA SPEC

main48231-23020iRX60..WG..EUG¥10,800198009-198208

sub48231-23040¥10,800

main48231-23030iMX62..DLX¥10,800198009-198208

sub48231-23110¥10,800

main48231-23040iLX60..WG¥10,800198009-198208

sub48231-23110¥10,800

main48231-23050iMX62..WG¥10,700198208-198407

RH

sub48231-23060¥10,700

main48231-23060iMX62..WG¥10,700198208-198407

LH

main48231-23090iLX60,RX60..WG..EUR198208-198407

LH

main48231-23100iLX60,RX60..WG..EUR198208-198407

RH

main48231-23110iLX60,RX60..WG..LHD..(GEN,ME)¥10,800198208-198407

LH

main48231-23110iRX60..WG..RHD¥10,800198208-198504

RH

main48231-23120iRX60..WG..RHD¥10,800198208-198504

LH

sub48231-23070¥9,900

main48231-23120iLX60,RX60..WG..LHD..(GEN,ME)¥10,800198208-198407

RH

sub48231-23070¥9,900

48257INSULATOR, REAR COIL SPRING

main48257-22020iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥620198009-198504

main48257-22030iGX61,MX63¥1,300198208-198504

main48257-23010iLX60,MX62,RX6#..WG¥1,340198009-198504

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-22010iLX60,MX62,RX60,TX62..SED¥590198009-198504

sub48258-14030¥600

main48258-22040iGX61¥640198208-198305

RH

sub48258-22041¥670

main48258-22041iGX61,MX63¥670198305-198504

RH

main48258-22050iGX61,MX63¥670198208-198504

LH

main48258-30010iLX60,MX62,RX6#..WG¥670198009-198504

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030iLX60,MX62,RX6#..WG¥1,090198009-198504

main48341-22080iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥1,080198009-198504

main48341-22100iGX61,MX63¥1,460198208-198504

48351BUMPER, DIFFERENTIAL CARRIER

main48351-29015iMX62..SED;GX60,LX60,RX6#,TX62¥640198009-198504

sub48351-20020¥520

main48351-29065iMX62..WG¥1,090198009-198407

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29375iMX63¥8,500198312-198504

sub48531-29377¥8,500

main48531-29695iRX60,TX62..SED..(GEN,ME,SA,SAA)¥7,000198009-198504

sub48531-29696¥7,000

main48531-29735iRX60..SED..EUR¥8,400198009-198205

sub48531-29737¥8,400

main48531-29736iRX60..SED..EUR¥8,200198205-198407

sub48531-80037¥8,200

main48531-29775iLX60,RX60..WG..EUG¥8,100198009-198208

sub48531-29776¥8,100

main48531-29785iMX62..WG¥7,000198009-198407

sub48531-80370¥7,100

main48531-29795iLX60,RX6#..WG..(GEN,ME,SA)¥7,000198009-198208

sub48531-80375¥6,800

main48531-29805iMX62..GL¥6,800198009-198208

sub48531-80008¥7,000

main48531-29815iLX60..SED..GEN¥6,300198009-198208

sub48531-80380¥6,800

main48531-29835iLX60..SED..EUG¥7,500198009-198208

sub48531-29735¥8,400

main48531-80004iGX61¥8,200198208-198407

sub48531-29705¥8,200

main48531-80005iLX60,RX60..WG..EUR¥8,000198208-198407

sub48531-80158¥8,000

main48531-80006iLX60,RX60..WG..(GEN,ME,SA)¥7,000198208-198504

sub48531-80365¥6,800

main48531-80008iRX60..SED..SA¥7,000198208-198504

sub48531-80159¥7,000

main48531-80009iLX60,MX62..SED..(ARL,GEN)¥6,800198208-198407

sub48531-29695¥7,000

main48531-80037iRX60..SED..RHD..4F¥8,200198308-198407

INDONESIA SPEC

sub48531-80183¥8,200

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iGX6#,LX60,MX6#,RX6#,TX62¥670198109-198504

ABSORBER X AXLE HOUSING

main90385-16060iLX60,MX62,RX6#,TX62¥650198009-198109

ABSORBER X AXLE HOUSING

sub90385-16004¥620

main90540-10004iGX6#,LX60,MX6#,RX6#,TX62¥230198009-198504

ABSORBER X BODY(LWR)

main90540-10005iLX60,MX62,RX6#..WG¥230198009-198504

ABSORBER X BODY(UPR)

main90948-01003iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥220198009-198504

ABSORBER X BODY(UPR)

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥170198009-198504

T=2.3,LWR

main90948-02045iLX60,MX62,RX6#..WG¥320198009-198504

T=3.2,UPR

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥170198009-198504

main90948-02050iLX60,MX62,RX6#..WG¥130198009-198407

main90948-02075iRX60..WG¥200198408-198504

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iGX6#,LX60,MX6#,RX6#,TX62¥110198009-198504

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGX6#,LX60,MX6#,RX6#,TX62¥200198009-198504

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29375iMX63¥8,500198312-198504

sub48531-29377¥8,500

main48531-29695iGX60,TX62..SA¥7,000198009-198504

sub48531-29696¥7,000

main48531-29735iRX60..SED..EUR¥8,400198009-198205

sub48531-29737¥8,400

main48531-29736iLX60,RX60..SED..EUR¥8,200198205-198407

sub48531-80037¥8,200

main48531-29775iLX60,RX60..WG..EUG¥8,100198009-198208

sub48531-29776¥8,100

main48531-29785iMX62..WG¥7,000198009-198407

sub48531-80370¥7,100

main48531-29795iLX60,RX6#..WG..(GEN,ME,SA)¥7,000198009-198208

sub48531-80375¥6,800

main48531-29805iMX62..GL¥6,800198009-198208

sub48531-80008¥7,000

main48531-29815iLX60..SED..GEN¥6,300198009-198208

sub48531-80380¥6,800

main48531-29835iLX60..SED..EUG¥7,500198009-198208

sub48531-29735¥8,400

main48531-80004iGX61¥8,200198208-198407

sub48531-29705¥8,200

main48531-80005iLX60,RX60..WG..EUR¥8,000198208-198407

sub48531-80158¥8,000

main48531-80006iLX60,RX60..WG..(GEN,ME,SA)¥7,000198208-198504

sub48531-80365¥6,800

main48531-80008iGX60,RX60..SED..(GEN,ME)¥7,000198208-198504

sub48531-80159¥7,000

main48531-80009iLX60,MX62..SED..(ARL,GEN)¥6,800198208-198407

sub48531-29695¥7,000

main48531-80036iRX60..SED..RHD..4F¥8,800198308-198407

INDONESIA SPEC

sub48531-80203¥8,800

48710ARM ASSY, UPPER CONTROL

main48710-22080iGX60,MX62..SED..(ARL,GEN,ME)¥7,200198009-198504

main48710-22130iTX62¥5,900198107-198504

main48710-22160iLX60,RX60..SED¥7,200198009-198504

main48710-23010iRX60..WG..EUR¥7,200198009-198407

main48710-23020iMX62..DLX¥6,600198009-198208

main48710-23030iRX6#..WG..(GEN,ME,SA)¥6,200198009-198504

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14006iGX60,LX60,MX62,RX6#,TX62¥540198009-198504

AXLE HOUSING X CONTROL ARM

main90105-14008iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥920198009-198504

BODY X CONTROL ARM

main90105-14009iLX60,MX62,RX6#..WG¥780198009-198504

BODY X CONTROL ARM

48720ARM ASSY, LOWER CONTROL, RH

main48720-22060iLX60..SED¥10,700198009-198504

main48720-22090iGX60,MX62..SED..(ARL,GEN,ME)¥10,700198009-198504

main48720-22110iRX60..SED..EUR¥10,700198009-198205

main48720-22111iRX60..SED..EUR¥10,900198205-198504

main48720-23010iMX62..WG¥10,600198208-198407

main48720-23020iLX60..WG¥10,100198009-198504

main48720-23030iMX62..DLX¥10,200198009-198208

main48720-23040iRX60..WG..EUG¥10,200198009-198407

48725BUSH, LOWER CONTROL ARM

main48725-22030iGX61,MX63¥1,670198208-198504

OUTER

main48725-22040iGX61,MX63¥2,320198208-198504

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14006iLX60,MX62,RX6#..WG¥540198009-198504

main90105-14007iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥600198009-198504

48730ARM ASSY, LOWER CONTROL, LH

main48720-22060iTX62¥10,700198009-198504

main48720-22090iGX60,MX62..SED..(ARL,GEN,ME)¥10,700198009-198504

main48720-22110iRX60..SED..EUR¥10,700198009-198205

main48720-22111iRX60..SED..(GEN,ME,SA)¥10,900198205-198504

main48720-23010iMX62..WG¥10,600198208-198407

main48720-23020iRX6#..WG..(GEN,ME,SA)¥10,100198009-198504

main48720-23030iMX62..DLX¥10,200198009-198208

main48720-23040iLX60..WG..EUG¥10,200198009-198407

48740ROD ASSY, REAR LATERAL CONTROL

main48740-22030iTX62;GX60,MX62..SED..(ARL,GEN,ME)¥5,900198009-198504

main48740-22050iLX60,RX60..SED¥7,800198009-198504

main48740-23010iLX60,MX62,RX6#..WG¥6,200198009-198504

48745BUSH, LATERAL CONTROL ROD

main48706-14010iLX60,MX62,RX6#..WG¥930198009-198504

BODY SIDE

main48706-22010iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥1,300198009-198504

BODY SIDE

main90385-20001iGX60,LX60,MX62,RX6#,TX62¥240198009-198504

L=15,HOUSING SIDE

main90386-20001iGX60,LX60,MX62,RX6#,TX62¥300198009-198504

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iLX60,MX62,RX6#..WG¥260198009-198504

main90105-16006iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥640198009-198504

48802LINK SUB-ASSY, STABILIZER

main48802-14020iMX62,RX60..ARL,EUR¥610198009-198504

48802DBUSH, STABILIZER LINK

main90385-11021iLX60..EUG¥240198009-198504

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iGX60,TX62;RX60..SED..(GEN,SA)¥140198009-198504

48805BAR SUB-ASSY, REAR STABILIZER

main48805-22010iMX62..GL¥9,500198009-198504

OD=12

main48805-22030iRX60..SED..EUR198205-198407

OD=16

main48805-22040iMX62,RX60..SED..(ARL,GEN)198208-198407

OD=13

main48805-22050iLX60..SED..EUG198208-198407

OD=14

main48805-23010iRX60..WG..EUR¥9,200198009-198407

OD=14

main48805-23020iMX62..DLX198011-198407

OD=12

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030iMX63¥660198312-198504

main48815-14050iMX62,RX60..SED..(ARL,GEN)¥590198208-198407

ID=13

main48815-14060iMX62,RX60..WG..(ARL,EUR)¥600198009-198407

ID=14

main48815-22010iRX60,TX62..SED..SA¥640198009-198504

ID=12

main48815-30070iRX60..SED..EUR¥390198205-198407

ID=16

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iGX61,MX63¥240198208-198504

main48817-30010iMX62,RX60..ARL,EUR¥170198009-198504

main48817-30020iLX60..EUG¥260198205-198407

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015iLX60..EUG¥90198009-198504

T=1.2

main90948-02024iGX61,MX63¥180198208-198504

T=3.5

main90948-02025iGX61,MX63¥200198208-198504

T=5.0

main90948-02032iMX62,RX60..ARL,EUR¥200198009-198504

T=1.6

48817UBOLT(FOR REAR STABILIZER)

main90101-08019iGX61,MX63¥320198208-198504

main90102-10015iMX62,RX60..ARL,EUR¥260198009-198208

main91121-41045iMX62,RX60..ARL,EUR¥190198208-198504

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-22020iMX62,RX60..ARL,EUR¥300198009-198504

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-22020iMX62,RX60..ARL,EUR¥300198009-198504

48836RBRACKET, REAR STABILIZER END, RH

main48825-22010iMX62,RX60..ARL,EUR¥730198009-198504

48837RBRACKET, REAR STABILIZER END, LH

main48825-22010iMX62,RX60..ARL,EUR¥730198009-198504

9017016182

main90170-16182¥260

9020114006

main90201-14006¥110

9116571230

main91165-71230¥200

9161140812

main91611-40812¥110

9161161016

main91611-61016¥270

9161161020

main91611-61020¥240

9411041000

main94110-41000¥160

9411571400

main94115-71400¥160

9412041000

main94120-41000¥80

9414141000

main94141-41000¥180

9418210800

main94182-10800¥230

9418461000

main94184-61000¥160

9418461400

main94184-61400¥240

9451201400

main94512-01400¥100

9451201600

main94512-01600¥200

9453101200

main94531-01200¥80

9461212000

main94612-12000¥240

9461411400

main94614-11400¥200

9538102525

main95381-02525¥120

52 parts on this diagram · 3 diagrams in section
