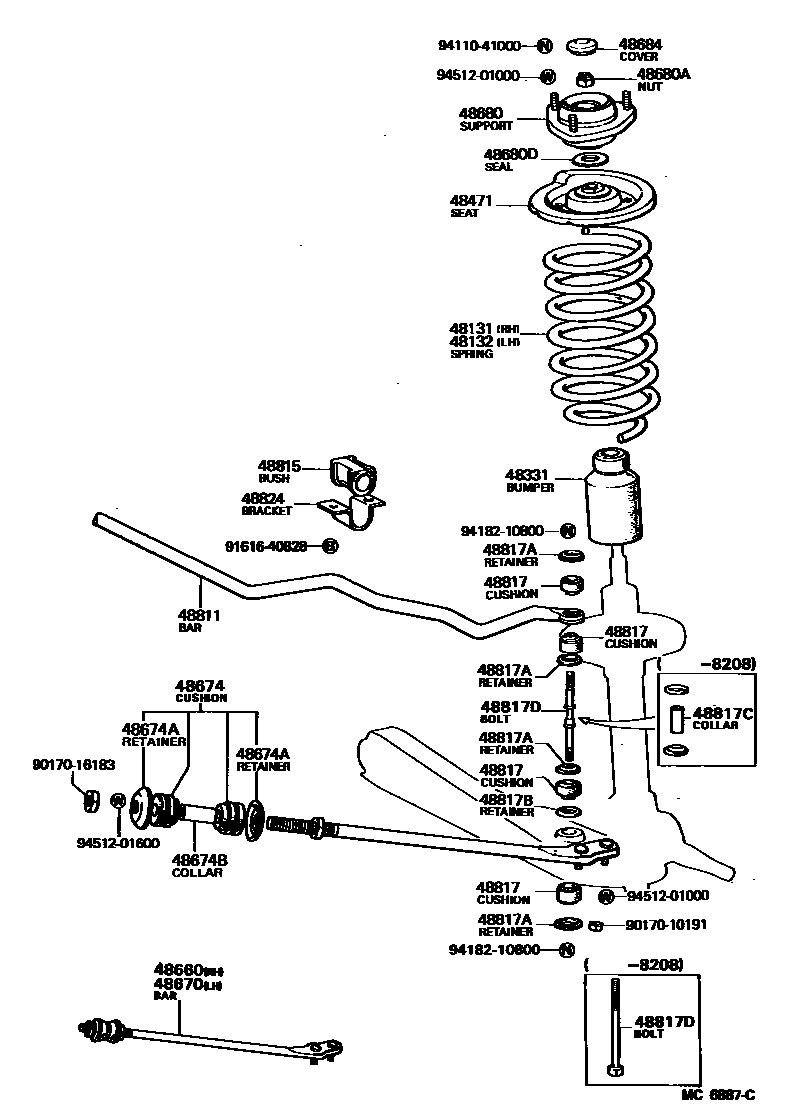

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-22530iRX60..SED..EUR¥12,400198205-198208

main48131-22600iRX60,TX62..SED..(GEN,ME,SA,SAA)¥9,700198009-198208

main48131-22630iLX60,MX62..WG¥10,800198009-198208

sub48131-22870¥10,700

main48131-22640iLX60,MX62..SED¥10,300198009-198208

main48131-22670iRX60..SED..EUR198009-198205

main48131-22800iRX60..SED..EUR¥11,800198208-198407

sub48131-22530¥12,400

main48131-22810iRX60,TX62..SA¥10,000198208-198504

sub48131-22820¥11,700

main48131-22820iGX6#..LHD¥11,700198208-198407

main48131-22840iRX60..WG..EUR¥10,400198208-198407

sub48131-22670

main48131-22850iRX60..SED..RHD..GEN¥10,400198208-198407

sub48131-22880¥10,400

main48131-22860iRX60..SED..LHD..(GEN,ME)¥10,400198208-198407

sub48131-2A050¥10,400

main48131-22880iLX60..WG¥10,400198208-198407

main48131-2A030iLX60..RHD¥10,600198208-198407

main48131-2A040iLX60..SED..LHD¥9,900198208-198407

main48131-2A070iMX62..WG¥11,800198208-198407

main48131-2A130iMX6#..SED¥11,100198208-198504

48132SPRING, FRONT COIL, LH

main48131-22530iRX60..SED..EUR¥12,400198205-198208

main48131-22600iRX60,TX62..SED..(GEN,ME,SA,SAA)¥9,700198009-198208

main48131-22630iLX60,MX62..WG¥10,800198009-198208

sub48131-22870¥10,700

main48131-22640iLX60,MX62..SED¥10,300198009-198208

main48131-22670iRX60..SED..EUR198009-198205

main48131-22790iRX60..SED..EUR¥11,800198208-198407

sub48131-22820¥11,700

main48131-22810iGX6#..LHD¥10,000198208-198407

sub48131-22820¥11,700

main48131-22820iRX60..WG..RHD..GEN¥11,700198208-198504

main48131-22830iRX60..WG..EUR¥10,400198208-198407

sub48131-22670

main48131-22850iRX60..SED..LHD..(GEN,ME)¥10,400198208-198407

sub48131-22880¥10,400

main48131-22860iRX60..SED..RHD..GEN¥10,400198208-198407

sub48131-2A050¥10,400

main48131-22870iLX60..WG¥10,700198208-198407

main48131-2A030iLX60..SED..LHD¥10,600198208-198407

main48131-2A040iLX60..RHD¥9,900198208-198407

main48131-2A080iMX62..WG¥11,800198208-198407

sub48131-22690¥10,700

main48131-2A140iMX6#..SED¥11,100198208-198504

sub48131-22640¥10,300

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iGX6#,LX60,MX6#,RX6#,TX62¥1,000198009-198504

48471SEAT, FRONT SPRING, UPPER

main48044-22010iGX6#,LX60,MX6#,RX6#,TX62¥1,820198009-198504

48660BAR ASSY, STRUT, RH

main48660-29085iLX60,MX62,RX6#,TX62¥6,500198009-198208

main48660-29125iGX6#,LX60,MX6#,RX60,TX62¥7,200198208-198504

48670BAR ASSY, STRUT, LH

main48670-29085iLX60,MX62,RX6#,TX62¥6,500198009-198208

main48670-29125iGX6#,LX60,MX6#,RX60,TX62¥7,200198208-198504

48674CUSHION, STRUT BAR

main48674-29045iGX6#,LX60,MX6#,RX6#,TX62¥1,780198009-198504

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02036iGX6#,LX60,MX6#,RX6#,TX62¥540198009-198504

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-16108iGX6#,LX60,MX6#,RX6#,TX62¥540198009-198504

48680SUPPORT ASSY, FRONT SUSPENSION

main48603-22010iGX6#,LX60,MX6#,RX60,TX62¥4,900198208-198504

RH

main48609-22010iLX60,MX62,RX6#,TX62¥4,930198009-198208

main48609-22030iGX6#,LX60,MX6#,RX60,TX62¥4,900198208-198504

LH

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iGX6#,LX60,MX6#,RX6#,TX62¥310198009-198504

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iGX6#,LX60,MX6#,RX6#,TX62¥260198009-198504

48684COVER, BEARING DUST

main48684-14020iGX6#,LX60,MX6#,RX6#,TX62¥230198009-198504

48811BAR, STABILIZER, FRONT

main48811-22130iRX6#,TX62..SA¥11,500198107-198208

OD=21

sub48811-22190

main48811-22140iRX60..SDN,SDZ¥12,700198009-198208

OD=23

sub48811-22210¥12,700

main48811-22150iRX60..SED..(GEN,ME,SAA)¥12,000198009-198208

OD=22

sub48811-22200

main48811-22170iMX62;RX60..SED..EUG¥13,400198009-198208

OD=24

sub48811-22220¥13,400

main48811-22190iRX60..WG..SA198209-198504

OD=21

main48811-22200iRX60..WG..EUR198208-198407

OD=22

main48811-22210iRX60,TX62..SED..SA¥12,700198208-198504

OD=23

main48811-22220iMX6#¥13,400198208-198504

OD=24

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14020iRX60..WG..EUR¥600198009-198407

ID=22

sub48815-38010¥590

main48815-20060iRX60..WG..SA¥600198107-198504

ID=21

main48815-28010iGX61,MX6#¥600198403-198504

ID=24

main48815-30050iRX60..SED..EUR¥380198009-198504

ID=23

48817CUSHION, FRONT STABILIZER

main48817-22010iLX60,MX62,RX6#,TX62¥600198009-198205

sub48817-22020¥510

main48817-22020iGX6#,LX60,MX6#,RX6#,TX62¥510198205-198504

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iGX6#,LX60,MX6#,RX6#,TX62¥200198009-198504

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iGX6#,LX60,MX6#,RX6#,TX62¥90198009-198504

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09002iLX60,MX62,RX6#,TX62¥260198009-198208

48817DBOLT(FOR FRONT STABILIZER)

main48819-24010iGX6#,LX60,MX6#,RX60,TX62¥510198208-198504

main90101-08023iLX60,MX62,RX6#,TX62¥280198009-198208

48824BRACKET, STABILIZER, FRONT

main48824-22010iGX6#,LX60,MX6#,RX6#,TX62¥250198009-198504

9017010191

main90170-10191¥110

9017016183

main90170-16183¥240

9161640828

main91616-40828¥190

9411041000

main94110-41000¥160

9418210800

main94182-10800¥230

9451201000

main94512-01000¥90

9451201600

main94512-01600¥200

28 parts on this diagram · 2 diagrams in section
