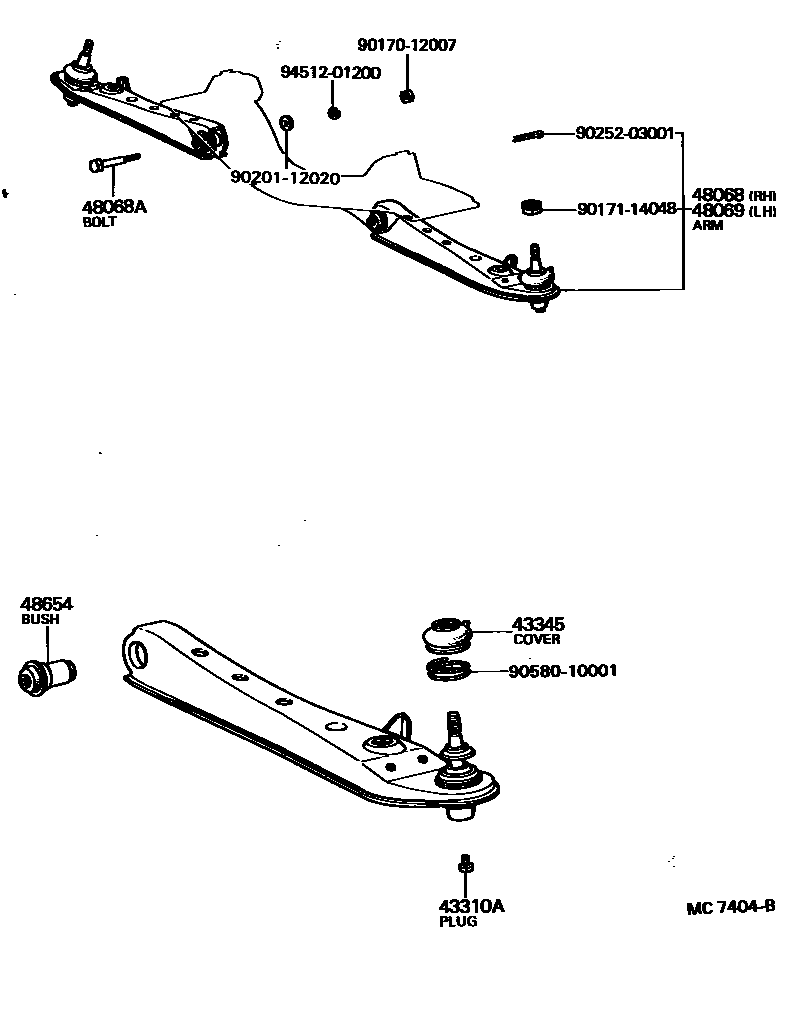

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iGX6#,LX60,MX6#,RX6#,TX62198009-198504

43345COVER, LOWER BALL JOINT DUST

main43345-22070iGX6#,LX60,MX6#,RX6#,TX62198009-198504

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29045iRX60..GEN,ME,SA,SAA;GX6#,LX60,MX6#,RX62,TX62198009-198504

main48068-29055iRX60..EUR198009-198208

main48068-29085iRX60..EUR198208-198407

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12039iGX6#,LX60,MX6#,RX6#,TX62198009-198504

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29045iRX60..GEN,ME,SA,SAA;GX6#,LX60,MX6#,RX62,TX62198009-198504

main48069-29055iRX60..EUR198009-198208

main48069-29085iRX60..EUR198208-198407

48654BUSH, LOWER ARM

main48654-12010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

9017012007

main90170-12007

9017114048

main90171-14048

9020112020

main90201-12020

9025203001

main90252-03001

9058010001

main90580-10001

9451201200

main94512-01200

12 parts on this diagram · 1 diagram in section
