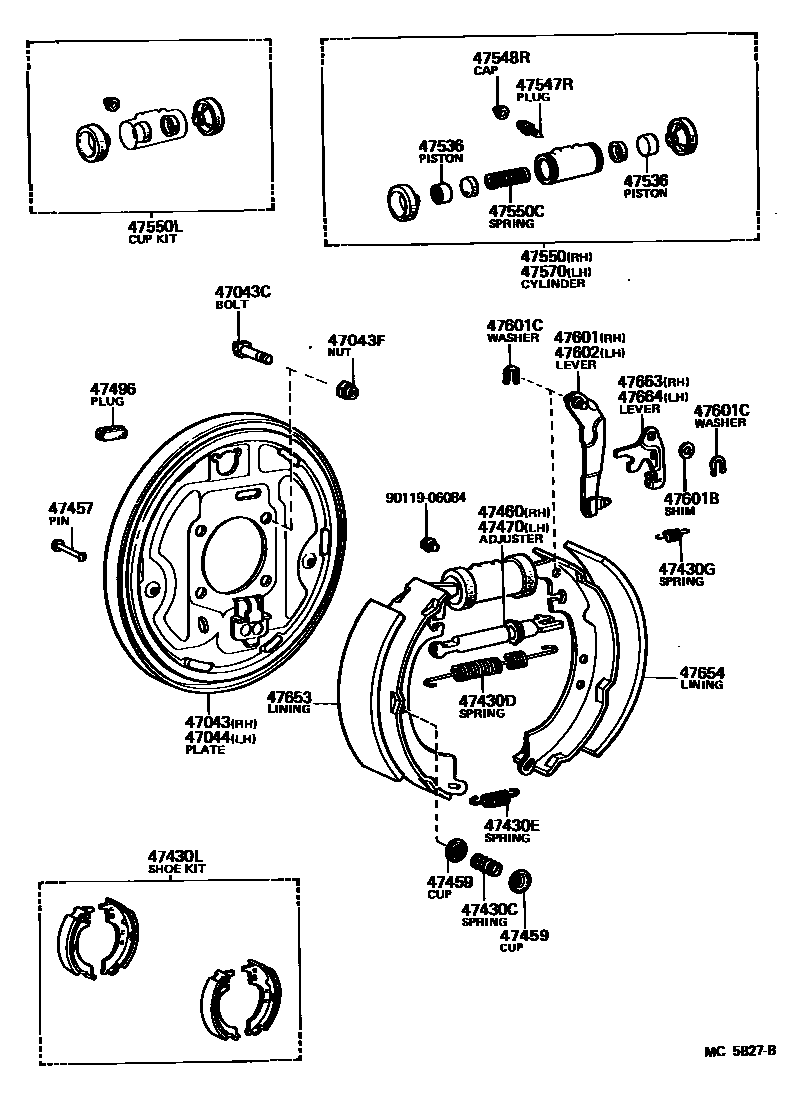

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-14050iLX60,RX60..EUR198205-198407

sub47043-27020

main47043-20050iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA198009-198504

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iRX60..WG..SA198009-198504

*10-1.25PX37-15

main42184-22020iRX60,TX62..SED..SA198110-198504

*10-1.25PX26-10

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iGX60,LX60,MX62,RX6#,TX62198009-198504

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-14050iLX60,RX60..EUR198205-198407

sub47044-27020

main47044-20050iLX60,MX62,RX6#,TX62198009-198504

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iGX60,LX60,MX62,RX6#,TX62198009-198504

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375iGX60,LX60,MX62,RX6#,TX62198009-198504

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iGX60,LX60,MX62,RX6#,TX62198009-198504

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iGX60,LX60,MX62,RX6#,TX62198009-198504

47430LSHOE KIT, REAR BRAKE

main04495-20050iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198504

sub04495-20051

main04495-22030iLX60,RX60..EUR198009-198407

sub04495-22031

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iGX60,LX60,MX62,RX6#,TX62198009-198504

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iGX60,LX60,MX62,RX6#,TX62198009-198504

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iGX60,LX60,MX62,RX6#,TX62198009-198504

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iGX60,LX60,MX62,RX6#,TX62198009-198504

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iGX60,LX60,MX62,RX6#,TX62198009-198504

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198504

main47051-22040iLX60,RX60..EUR198009-198407

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iGX60,LX60,MX62,RX6#,TX62198009-198504

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iGX60,LX60,MX62,RX6#,TX62198009-198504

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19135iLX60,RX60..EUR198009-198407

sub47550-12060

main47550-19145iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198105-198504

sub47550-14020

main47550-29075iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198105

sub47550-19145

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020iLX60,RX60..EUR198009-198407

main47509-20010iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198504

47550LCUP KIT, REAR WHEEL CYLINDER

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19135iLX60,RX60..EUR198009-198407

sub47550-12060

main47550-19145iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198105-198504

sub47550-14020

main47550-29075iLX60,MX62,RX60..ARL,GEN,ME,SAA198009-198105

sub47550-19145

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iGX60,LX60,MX62,RX6#,TX62198009-198504

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iGX60,LX60,MX62,RX6#,TX62198009-198504

T=0.3,T=0.3

main90564-08151iGX60,LX60,MX62,RX6#,TX62198009-198504

T=0.6,T=0.6

main90564-08152iGX60,LX60,MX62,RX6#,TX62198009-198504

T=0.9,T=0.9

main90564-08172iGX60,LX60,MX62,RX6#,TX62198009-198504

T=0.2,T=0.2

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iGX60,LX60,MX62,RX6#,TX62198009-198504

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iGX60,LX60,MX62,RX6#,TX62198009-198504

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-22020iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198504

main47651-22030iLX60,RX60..EUR198009-198407

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-22020iGX60,LX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198504

main47651-22030iLX60,RX60..EUR198009-198407

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iGX60,LX60,MX62,RX6#,TX62198009-198504

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iGX60,LX60,MX62,RX6#,TX62198009-198504

9011906084

main90119-06084

30 parts on this diagram · 1 diagram in section
