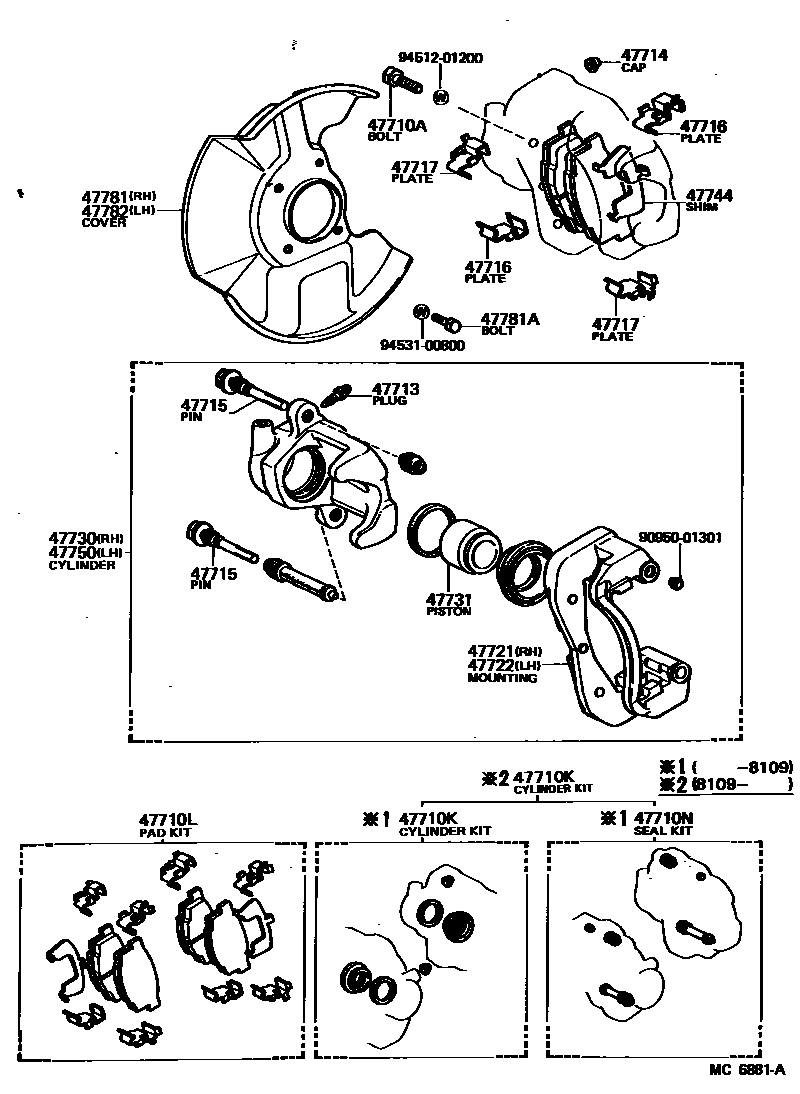

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

*12-1.25PX31-20

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iGX6#,LX60,MX6#,RX6#,TX62198109-198504

main04479-30050iLX60,MX62,RX6#,TX62198009-198109

sub04479-22010

sub04479-30060

sub04479-30070

47710LPAD KIT, DISC BRAKE, FRONT

main04491-22140iLX60,MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198208

sub04465-22140

main04491-22150iGX60,LX60,RX60,TX62..GEN,ME,SA198009-198304

sub04465-22140

main04491-22160iRX60..LHD..EUR198110-198208

WEST GERMANY SPEC

sub04491-22161

main04491-22160iGX61,LX60,MX62,RX60..ARL,EUR198208-198504

sub04491-22161

47710NSEAL KIT, DISC BRAKE, FRONT

main04498-22010iLX60,MX62,RX6#,TX62198009-198109

sub04479-22010

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22010iLX60,MX62,RX6#,TX62198009-198504

main47721-22020iRX60..LHD..EUR198110-198208

WEST GERMANY SPEC

main47721-22020iGX61,MX63;RX60..EUR198208-198504

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22010iLX60,MX62,RX6#,TX62198009-198504

main47722-22020iGX61,MX63;RX60..EUR198208-198504

main47722-22020iRX60..LHD..EUR198110-198208

WEST GERMANY SPEC

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22100iGX60,LX60,MX62,RX60,TX62..ARL,GEN,ME,SA198009-198504

main47730-22110iRX60..LHD..EUR198110-198208

WEST GERMANY SPEC

main47730-22110iGX61,MX63;RX60..EUR198208-198504

47731PISTON, FRONT DISC BRAKE

main47731-30050iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22040iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22100iLX60,MX62,RX6#,TX62198009-198504

main47750-22110iGX61,MX63;RX60..EUR198208-198504

main47750-22110iRX60..LHD..EUR198110-198208

WEST GERMANY SPEC

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22070iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22070iGX6#,LX60,MX6#,RX6#,TX62198009-198504

9095001301

main90950-01301

9451201200

main94512-01200

9453100800

main94531-00800

21 parts on this diagram · 2 diagrams in section
