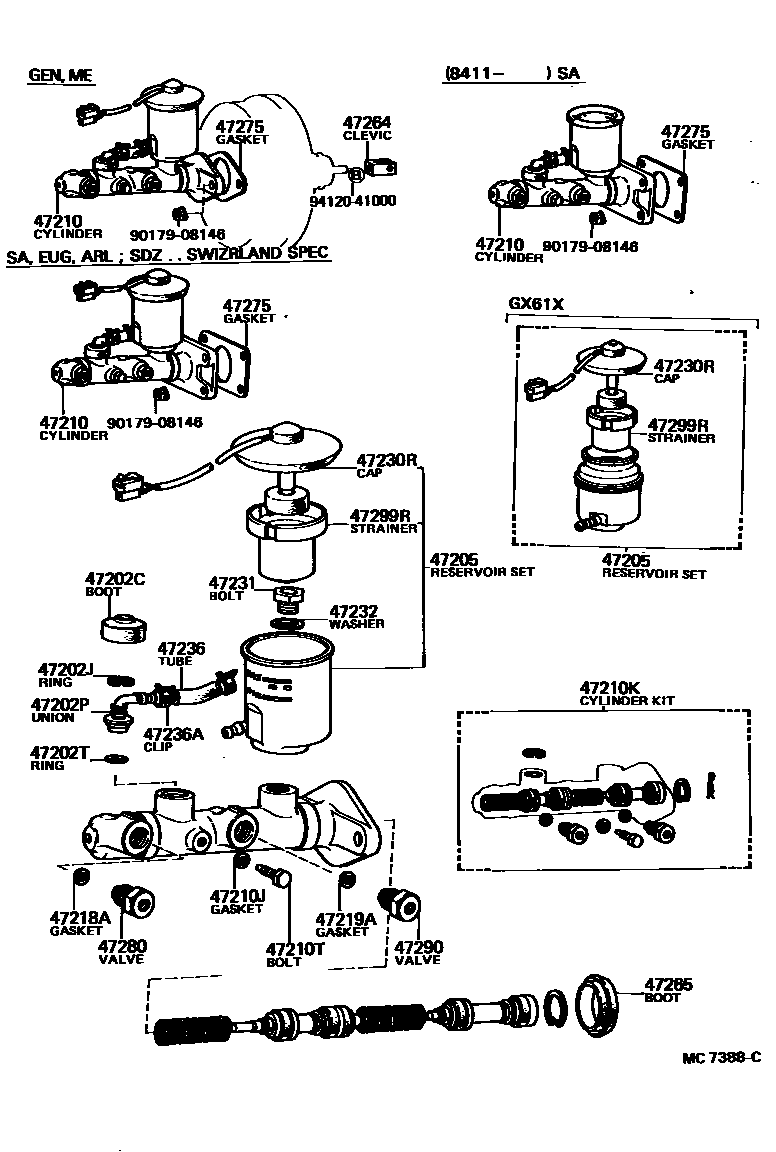

BRAKE MASTER CYLINDER

0001 1 0003 1

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iRX60..SDZ198208-198407

SWITZERLAND SPEC

main47265-20060iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62198009-198504

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iRX60..SDZ198208-198407

SWITZERLAND SPEC

main96151-02000iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62198009-198504

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10125iRX60..DLX..(SDN,SDZ)198009-198407

SWEDEN SPEC

main90407-10003iRX60..SDZ198208-198407

SWITZERLAND SPEC

sub90407-10004

main90407-10003iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62198009-198504

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iRX60..SDZ198208-198407

SWITZERLAND SPEC

main90301-14001iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62198009-198504

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-12260iRX60..SDN,SDZ198009-198106

sub47202-14260

main47202-14260iRX60..DLX..(SDN,SDZ)198106-198407

SWEDEN SPEC

main47202-14270iRX60,TX62198411-198504

main47202-20240iRX60..SDZ198208-198407

SWITZERLAND SPEC

sub47202-14270

main47202-20240iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX60,LX60,MX62,RX62,TX62198009-198411

sub47202-14270

main47202-22120iGX61,MX63198208-198504

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-22350iGX60,LX60,RX60..GEN,ME,SAA198009-198407

main47201-22380iRX60..SDZ198208-198407

SWITZERLAND SPEC

sub47207-22110

sub84460-20051

main47201-22380iRX60..LHD..EUG;RX60..RHD..(EUR,SA);LX60,MX62,RX62,TX62..ARL,EUR,SA198009-198411

sub47207-22110

sub84460-20051

main47201-22390iRX60..DLX..(SDN,SDZ)198009-198308

SWEDEN SPEC

main47201-22430iGX61,MX63198208-198411

sub47207-22120

sub84460-20051

main47207-22110iRX60,TX62198411-198504

main47207-22120iMX63198411-198504

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47210KCYLINDER KIT, BRAKE MASTER

main04493-20110iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12011iRX60,TX62198411-198504

main84460-12030iRX60..DLX..(SDN,SDZ)198009-198407

SWEDEN SPEC

main84460-20051iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62198009-198504

sub84460-12011

main84460-20051iRX60..SDZ198208-198407

SWITZERLAND SPEC

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRX60..DLX..(SDN,SDZ)198009-198407

SWEDEN SPEC

main47231-30010iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62198009-198504

main47231-30010iRX60..SDZ198208-198407

SWITZERLAND SPEC

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iRX60..SDZ198208-198407

SWITZERLAND SPEC

main47232-30010iRX60..RHD;RX60..LHD..EUG;RX60..LHD..(GEN,ME,SAA);GX6#,LX60,MX6#,RX62,TX62198009-198504

47236TUBE, RESERVOIR BRAKE

main47234-14010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47265BOOT, MASTER CYLINDER

main47265-20050iGX6#,LX60,MX6#,RX6#,TX62198009-198504

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iGX60,LX60,RX60..GEN,ME,SAA198009-198407

sub47275-26010

main47275-22010iGX6#,LX60,MX6#,RX6#,TX62..ARL,EUR,SA198009-198504

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iGX6#,LX60,MX6#,RX6#,TX62198107-198504

main47299-20010iLX60,MX62,RX60198009-198107

9017908146

main90179-08146

9412041000

main94120-41000

24 parts on this diagram · 2 diagrams in section
