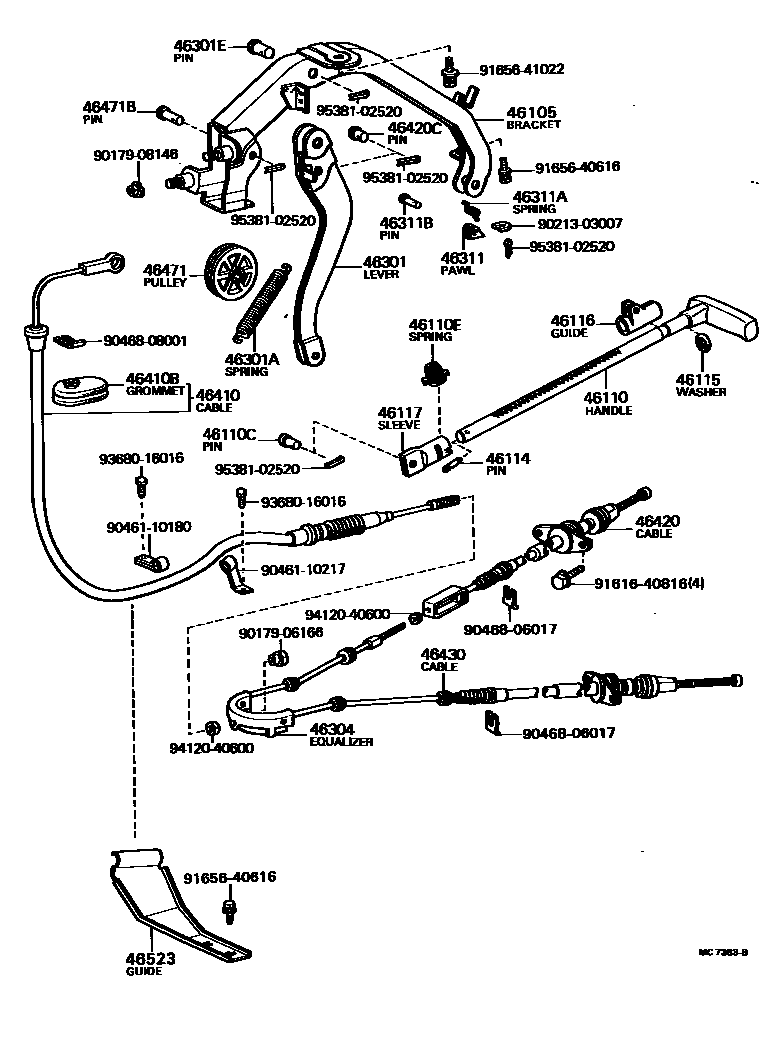

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-22040iRX60..RHD..3H198009-198208

main46105-22060iRX60..LHD..(3H,4H)198009-198208

main46105-22070iRX60..4H198208-198407

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46101-22070iRX60..RHD..3H198009-198208

main46101-22080iRX60..LHD..(3H,4H)198009-198407

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90240-08094iRX60..3H,4H198009-198504

46110ESPRING, TORSION(FOR PARKING BRAKE PLUNGER)

main90508-14038iRX60..RHD..3H198009-198208

main90508-14039iRX60..LHD..(3H,4H)198009-198407

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iRX60..3H,4H198009-198504

46115WASHER, PARKING BRAKE PLUNGER

main46115-20010iRX60..3H,4H198009-198504

46116GUIDE, PARKING BRAKE PLUNGER

main46116-22060iRX60..3H,4H198009-198504

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iRX60..RHD..3H198009-198208

main46117-30020iRX60..LHD..(3H,4H)198009-198407

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-22030iRX60..3H,4H198009-198504

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-12175iRX60..3H,4H198009-198504

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-12147iRX60..3H,4H198009-198504

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

46311PAWL, PARKING BRAKE

main46311-20030iRX60..3H,4H198009-198504

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08405iRX60..3H,4H198009-198504

46311BPIN, PARKING BRAKE PAWL PIVOT

main90240-08156iRX60..3H,4H198009-198504

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22150iRX60..RHD..3H198009-198208

main46410-22160iRX60..LHD..(3H,4H)198009-198407

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-01022iRX60..3H,4H198009-198504

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22131iGX61,MX63198208-198504

main46420-22190iGX60,LX60..SED..(GEN,ME);RX60,TX62..SED..(GEN,ME,SA,SAA)198009-198504

main46420-22230iLX60,MX62,RX60..SED..(ARL,EUR)198009-198407

main46420-23130iLX60,MX62,RX6#..WG198009-198504

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-10148iRX60..3H,4H198009-198504

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-22050iGX60,LX60..SED..(GEN,ME);RX60,TX62..SED..(GEN,ME,SA,SAA)198009-198504

main46430-22110iGX61,MX63198208-198504

main46430-22150iLX60,MX62,RX60..SED..(ARL,EUR)198009-198407

main46430-23090iLX60,MX62,RX6#..WG198009-198504

46471PULLEY, WIRE

main46471-20020iRX60..3H,4H198009-198504

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-10157iRX60..3H,4H198009-198504

46523GUIDE, PARKING BRAKE CABLE

main46523-22020iRX60..LHD..(3H,4H)198009-198407

9017906166

main90179-06166

9017908146

main90179-08146

9021303007

main90213-03007

9046110180

main90461-10180

9046110217

main90461-10217

9046806017

main90468-06017

9046808001

main90468-08001

9161640816

main91616-40816

9165640616

main91656-40616

9165641022

main91656-41022

9368016016

main93680-16016

9412040600

main94120-40600

9538102520

main95381-02520

36 parts on this diagram · 3 diagrams in section
