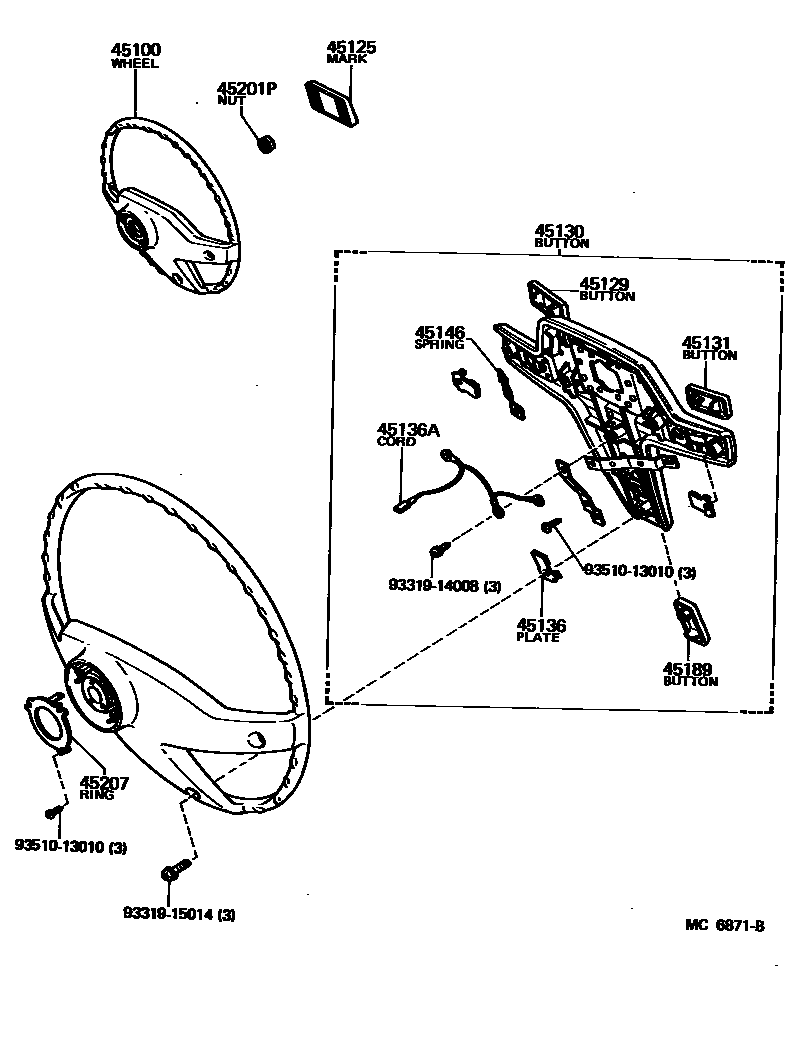

STEERING WHEEL
45125MARK, STEERING WHEEL PAD
INDONESIA SPEC
INDONESIA SPEC
45129BUTTON, HORN, NO.2
LWR,BLACK,BLACK,TRIM2#
LWR,BLUE,BLUE,TRIM8#
LWR,DARK BROWN,BROWN,TRIM0#,4#
45130BUTTON ASSY, HORN
INDONESIA SPEC,DEEP MAROON,RED/MAROON,TRIM3#
sub45130-22150
INDONESIA SPEC,DARK BROWN,BROWN,TRIM4#
sub45130-22150
45131BUTTON, HORN, NO.1
LWR,BLACK,BLACK,TRIM2#
LWR,BLUE,BLUE,TRIM8#
LWR,DARK BROWN,BROWN,TRIM0#,4#
45136PLATE, HORN BUTTON CONTACT
45136ACORD(FOR HORN CONTACT RING)
45146SPRING, HORN BUTTON CONTACT
45189BUTTON, HORN, NO.3
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9331914008
main93319-14008
9331915014
main93319-15014
9351013010
main93510-13010
14 parts on this diagram · 3 diagrams in section
