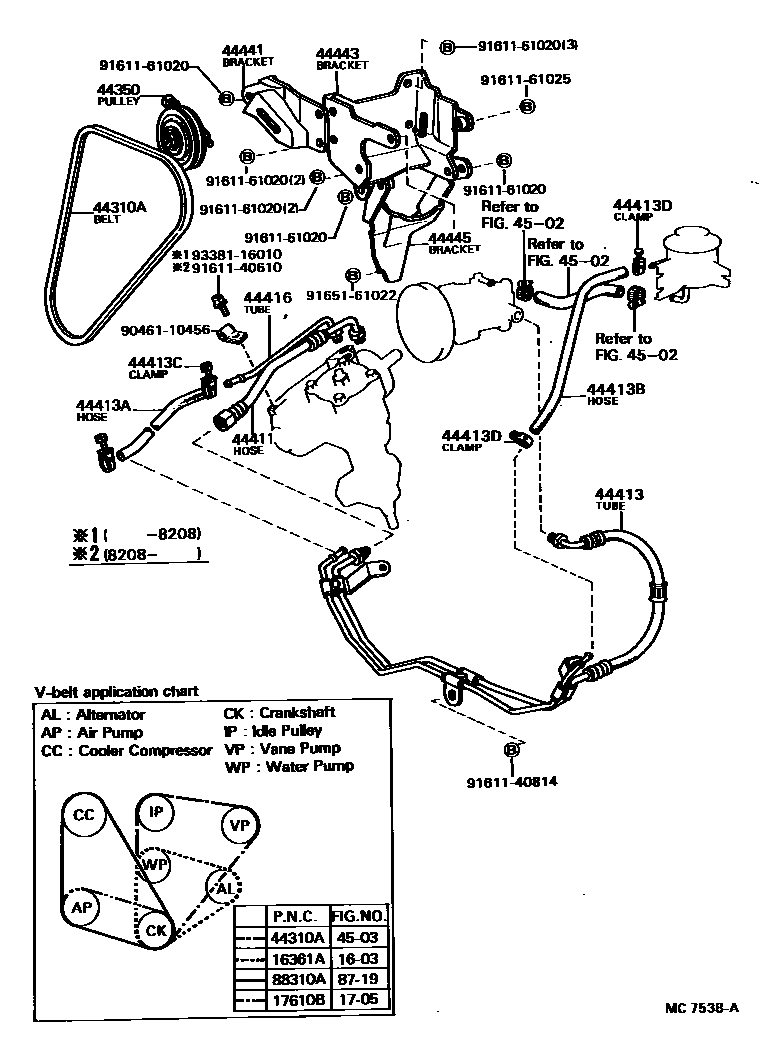

POWER STEERING TUBE

0001 1 0003 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5ME..MX62198009-198308

DOUBLE V BELTS,L=925

main90916-02133iL..LX60198211-198407

L=990

main99321-00885i3T..TX62198107-198504

main99331-00870i21R..RX60198408-198504

L=870

main99331-00880i21R#..RX60198009-198407

L=880

main99332-00985iL..LX60198009-198104

L=985

main99332-10985iL..LX60198104-198207

L=985

main99332-11000iL..LX60198207-198211

L=1000

main99332-51130i1GE..GX6#198208-198308

main99364-01100i1GE..GX6#198308-198504

sub99364-81100

main99367-00920i5ME..MX6#198308-198504

1705

17610BBELT, V(FOR AIR PUMP)

main99332-01395i5ME..MX62198009-198407

main99332-10820i21RC..RX60198009-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02078iMX63198312-198504

sub90916-02465

main90916-02080iLX60..DLX198009-198407

main90916-02092iGX6#198208-198504

main99332-51135iRX60..(GL,SXL)..(ME,SA)198009-198407

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20020iRX60..GEN198009-198407

sub44350-60020

44411HOSE, PRESSURE FEED

main44411-22090iLX60..RHD..DLX198009-198407

main44411-22150iLX60..LHD..DLX198009-198407

main44411-22160iGX6#..RHD198208-198504

main44411-22170iRX60..GL..ME198009-198210

sub44411-22171

main44411-22171iRX60..LHD..GEN198210-198407

main44411-22180iMX63198312-198504

main44411-22190iMX62198009-198407

main44411-22260iGX6#..LHD198208-198407

44413TUBE, PRESSURE FEED, NO.1

main44410-22040iRX60..RHD..GEN198009-198208

sub44410-22H00

main44410-22050iLX60..RHD..DLX198009-198208

main44410-22060iRX60..LHD..GEN198009-198208

sub44410-22130

main44410-22090iLX60..RHD198208-198407

main44410-22100iRX60..RHD..GEN198208-198210

sub44410-22H00

main44410-22101iRX60..RHD..GEN198210-198407

main44410-22130iRX60..GL..ME198208-198210

sub44410-22131

main44410-22131iRX60..GL..ME198210-198407

main44410-22150iLX60..RHD198208-198407

PUMP SIDE

main44413-22071iLX60..RHD..DLX198009-198208

PUMP SIDE

sub44410-22150

main44413-22160iGX6#..LHD198208-198407

44413AHOSE(FOR RETURN TUBE OUTLET)

main44412-22060iLX60..RHD..DLX198010-198407

main90445-18079iRX60..ME198009-198407

sub90445-18137

main90445-18081iGX6#..LHD198208-198407

main90447-18004iLX60..RHD..DLX198009-198010

44413BHOSE(FOR RESERVOIR TANK INLET)

main44412-22030iRX60..RHD..GEN198210-198407

L=400

main44412-22040iLX60..RHD..DLX198009-198208

main44412-22050iRX60..SXL198107-198208

main44412-22050iRX60..RHD..GEN198009-198210

L=430

main44412-22120iLX60..RHD198208-198407

44413CCLAMP(FOR RETURN TUBE OUTLET HOSE)

main90460-01001iGX6#..LHD198009-198407

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iRX60..SXL198009-198407

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20020iLX60..RHD..DLX198009-198407

main44416-22090iGX6#,MX6#..RHD198009-198504

main44416-22100iRX60..GL..ME198009-198407

main44416-22110iLX60..LHD..DLX198009-198208

main44416-22120iGX6#..LHD198208-198407

main44416-22130iLX60..LHD198208-198407

44441BRACKET, PUMP, FRONT

main44441-20010iRX60..GEN198009-198407

main44441-22010iGX6#198208-198504

sub44441-22040

main44441-30040iMX62198009-198407

44443BRACKET, PUMP

main44443-20030iRX60..GL..ME198009-198108

sub44443-20031

main44443-20031iRX60..ME198105-198407

main44443-22020iLX60..DLX198009-198208

main44443-22030iGX6#198208-198504

main44443-22060iLX60198208-198407

main44443-30051iMX63198312-198504

44445BRACKET, PUMP, LOWER

main44445-20010iRX60..(GL,SXL)..(ME,SA)198009-198407

4502

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00890iRX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198407

main99322-00910iGX60198208-198308

sub99332-00910

main99322-01270iLX60..RHD198009-198407

sub99322-11270

main99322-50950iMX6#198208-198504

main99332-00910iMX62198009-198208

main99364-00850iGX60198308-198504

L=850

sub99364-20850

9046110456

main90461-10456

9161140610

main91611-40610

9161140814

main91611-40814

9161161020

main91611-61020

9161161025

main91611-61025

9165161022

main91651-61022

9338116010

main93381-16010

27 parts on this diagram · 8 diagrams in section
