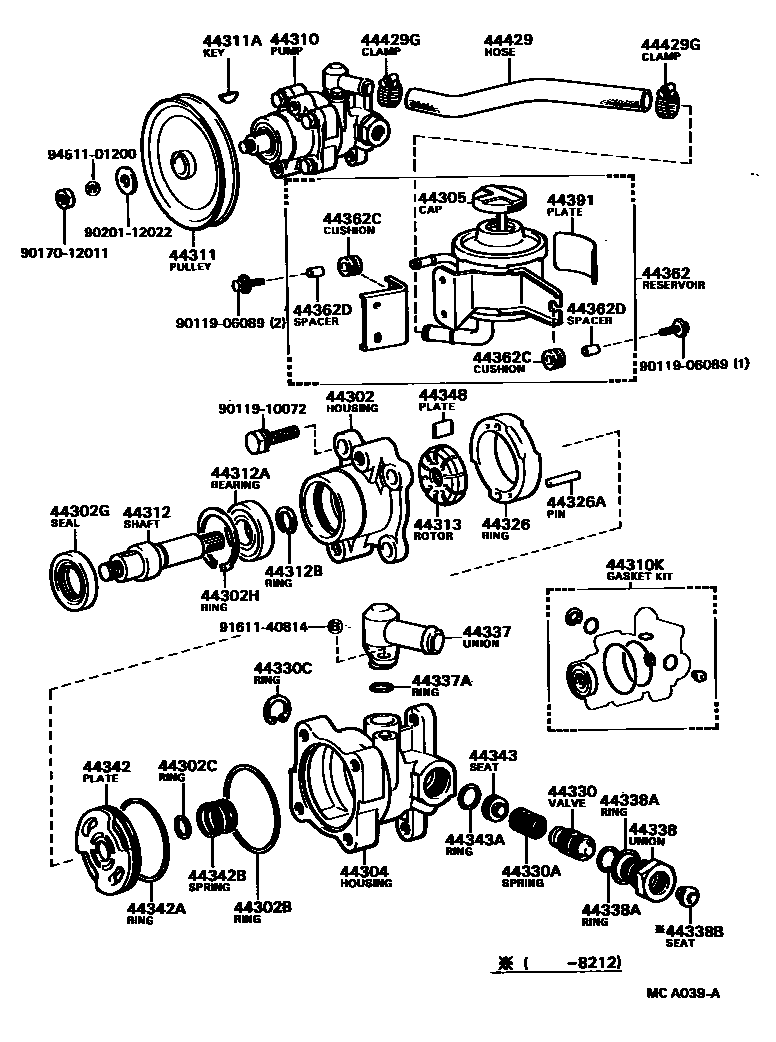

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0006 1 0007 1 0008 1 0009 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iRX60..ME198301-198407

main44302-22020iGX6#198208-198504

main44302-30020iLX60,MX6#..DLX,GL198009-198504

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iRX60..(GL,SXL)..(ME,SA)198009-198301

main90301-69170×2iLX60,MX6#..DLX,GL198009-198504

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96710-01016iRX60..GEN198009-198111

main96711-19016iRX60..(GL,SXL)..(ME,SA)198111-198301

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iRX60..(GL,SXL)..(ME,SA)198009-198301

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iRX60..ME198301-198407

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-20030iRX60..GEN198009-198407

main44304-22010iGX6#198208-198311

sub90105-10092

main44304-22011iGX6#198311-198504

sub44304-22012

sub44343-12040

sub90501-12103

main44304-30022iMX6#198009-198504

main44304-30040iLX60..DLX198009-198407

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iRX60..(GL,SXL)..(ME,SA)198009-198301

sub44305-22040

44310PUMP ASSY, VANE

main44320-22090iMX6#198009-198504

main44320-22100iGX6#198208-198311

sub90105-10092

main44320-22101iGX6#198311-198504

sub44320-24011

main44320-22110iLX60..LHD..DLX198009-198208

main44320-22120iLX60..RHD..DLX198009-198208

main44320-22130iLX60..RHD198208-198212

sub44320-22H00

main44320-22131iLX60..RHD198212-198407

main44320-22140iRX60..GEN198009-198208

main44320-22160iLX60..LHD198208-198407

main44320-22170iRX60..GEN198208-198407

44310KGASKET KIT, POWER STEERING PUMP

main04446-12011iRX60..GEN198009-198208

sub04446-22020

main04446-14010iRX60..GEN198208-198407

sub04446-14040

main04446-22010iLX60,MX6#198208-198504

main04446-30010iLX60..DLX198009-198208

44311PULLEY, VANE PUMP

main44311-20010iRX60..ME198301-198407

main44311-22030iGX6#198208-198308

main44311-30030iGX6#,MX6#198308-198504

sub44311-30070

main44311-30040iLX60..DLX198009-198407

44311AKEY, VANE PUMP PULLEY

main90280-05008iMX6#;RX60..GEN198009-198504

44312SHAFT, VANE PUMP

main44312-12010iRX60..ME198301-198407

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iRX60..(GL,SXL)..(ME,SA)198009-198301

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iRX60..(GL,SXL)..(ME,SA)198009-198301

sub90520-15005

44313ROTOR, VANE PUMP

main44313-12010iRX60..(GL,SXL)..(ME,SA)198009-198301

NO MARK

sub44313-22040

main44313-12020iGX6#;RX60..GEN198009-198504

MARK 1,MARK 1

sub44313-22050

main44313-12030iGX6#;RX60..GEN198009-198504

MARK 2,MARK 2

sub44313-22060

main44313-12040iGX6#;RX60..GEN198009-198504

MARK 3,MARK 3

sub44313-22070

main44313-12050iRX60..ME198301-198407

MARK 4,MARK 4

sub44313-22080

44326RING, CAM(FOR VANE PUMP)

main44325-12010iRX60..(GL,SXL)..(ME,SA)198009-198301

NO MARK

main44325-12020iGX6#;RX60..GEN198009-198504

MARK 1,MARK 1

main44325-12030iGX6#;RX60..GEN198009-198504

MARK 2,MARK 2

main44325-12040iRX60..ME198301-198407

MARK 3,MARK 3

main44325-12050iGX6#;RX60..GEN198009-198504

MARK 4,MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008×2iRX60..(GL,SXL)..(ME,SA)198009-198301

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12010iMX62,RX60..ARL,GEN198009-198207

MARK A,MARK A

main44330-12020iMX62,RX60..ARL,GEN198009-198207

MARK B,MARK B

main44330-12030iMX62,RX60..ARL,GEN198009-198207

MARK C,MARK C

main44330-12040iMX62,RX60..ARL,GEN198009-198207

MARK D,MARK D

main44330-12050iMX62,RX60..ARL,GEN198009-198207

MARK E,MARK E

main44330-12060iMX62,RX60..ARL,GEN198009-198207

MARK F,MARK F

main44330-12130iRX60..(GL,SXL)..(ME,SA)198207-198301

MARK A,MARK A

sub44330-12131

main44330-12140iRX60..ME198301-198407

MARK B,MARK B

sub44330-12141

main44330-12150iRX60..(GL,SXL)..(ME,SA)198207-198301

MARK C,MARK C

sub44330-12151

main44330-12160iRX60..ME198301-198407

MARK D,MARK D

sub44330-12161

main44330-12170iRX60..(GL,SXL)..(ME,SA)198207-198301

MARK E,MARK E

sub44330-12171

main44330-12180iRX60..(GL,SXL)..(ME,SA)198207-198301

MARK F,MARK F

sub44330-12181

main44330-30041iLX60..DLX198009-198407

MARK A

main44330-30051iLX60..DLX198009-198407

MARK B

main44330-30061iLX60..DLX198009-198407

MARK C

main44330-30071iLX60..DLX198009-198407

MARK D

main44330-30081iLX60..DLX198009-198407

MARK E

main44330-30091iLX60..DLX198009-198407

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iMX6#;RX60..GEN198009-198504

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLX60..DLX198009-198407

44337UNION, POWER STEERING SUCTION PORT

main44337-22010iLX60..LHD..DLX198009-198208

main44337-22020iLX60..RHD..DLX198009-198208

main44337-22040iLX60..RHD198208-198407

main44337-22050iLX60..LHD198208-198407

main90404-16016iRX60..GEN198009-198407

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96710-01013iLX60..DLX198009-198111

main96711-19013iLX60..DLX198111-198407

44338UNION, PRESSURE PORT

main44308-14010iMX6#198009-198504

main44308-14040iRX60..GEN198208-198209

sub44308-14041

main44308-22020iRX60..GL..ME198209-198301

main44308-22030iLX60198212-198407

main44338-20010iRX60..GEN198009-198208

main44338-30011iLX60..DLX198009-198212

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iRX60..ME198301-198407

OD=25.5,ID=22.5

main90301-23002iMX62198009-198407

ID=22.7,OD=25.1

main96710-01014×2iLX60,MX62..DLX,GL198009-198111

ID=14,OD=17,ID=14,OD=17

main96711-19014×2iGX6#,LX60,MX6#..DLX,GL198111-198504

OD=17.0,ID=13.0

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06004iLX60..LHD198208-198212

main90410-06030iLX60..LHD..DLX198009-198208

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iRX60..(GL,SXL)..(ME,SA)198009-198301

main44341-30020×2iLX60,MX6#..DLX,GL198009-198504

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iRX60..(GL,SXL)..(ME,SA)198009-198301

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iRX60..(GL,SXL)..(ME,SA)198009-198301

44343SEAT, FLOW CONTROL SPRING

main44343-12010×2iGX6#198208-198504

main44343-30020iLX60..DLX198009-198108

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iLX60..DLX198009-198111

main96711-19014iMX6#;RX60..GEN198111-198504

44348PLATE, VANE PUMP

main44345-12010×10iRX60..(GL,SXL)..(ME,SA)198009-198301

L=14.997,L=14.996-14.998,ROTOR NO MARK

main44345-12020×10iRX60..ME198301-198407

L=14.995,L=14.994-14.996,ROTOR MARK 1

main44345-12030×10iGX6#;RX60..GEN198009-198504

L=14.993,L=14.992-14.994,ROTOR MARK 2

main44345-12040×10iGX6#;RX60..GEN198009-198504

L=14.991,L=14.990-14.992,ROTOR MARK 3

main44345-12050×10iRX60..(GL,SXL)..(ME,SA)198009-198301

L=14.989,L=14.988-14.990,ROTOR MARK 4

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-22090iMX6#198009-198407

main44306-22100iGX6#198208-198504

sub44306-22200

main44360-22030iRX60..RHD..GEN198009-198206

main44360-22040iLX60..RHD..DLX198009-198206

main44360-22050iRX60..LHD..GEN198009-198407

main44360-22070iLX60..LHD..DLX198009-198407

main44360-22080iLX60..RHD..DLX198206-198407

main44360-22090iRX60..RHD..GEN198206-198407

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90540-09004×3iRX60..(GL,SXL)..(ME,SA)198009-198301

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06014×3iLX60..DLX198112-198407

main90560-06238×3iLX60..DLX198009-198112

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iRX60..(GL,SXL)..(ME,SA)198009-198301

44429HOSE, RESERVOIR TO OIL PUMP

main44348-22030iRX60..RHD..GEN198009-198407

main44348-22040iLX60..RHD..DLX198009-198208

main44348-22050iLX60..LHD..DLX198009-198208

main44348-22060iRX60..LHD..GEN198009-198407

main44348-22080iLX60..RHD198208-198407

main44348-22100iLX60..LHD198208-198407

44429GCLAMP, RESERVOIR TO OIL PUMP HOSE

main90460-26001×2iRX60..(GL,SXL)..(ME,SA)198009-198301

9011906089

main90119-06089

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161140814

main91611-40814

9451101200

main94511-01200

43 parts on this diagram · 6 diagrams in section
