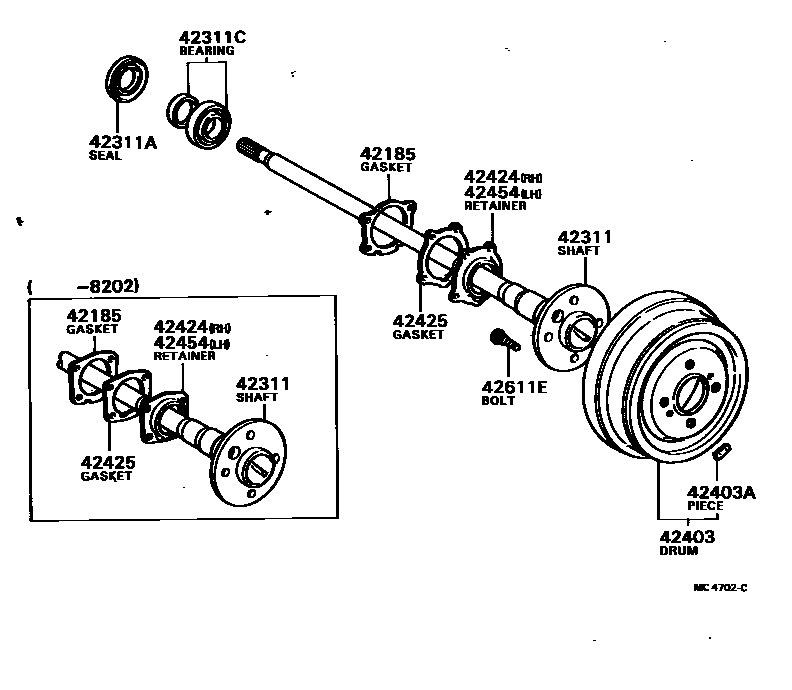

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42185GASKET, REAR AXLE HOUSING END

main42185-14020iGX60,LX60,MX62,RX6#,TX62¥620198202-198407

main42185-22020iLX60,MX62,RX6#,TX62¥320198009-198202

main42185-22030iGX61,MX63¥250198208-198504

42311SHAFT, REAR AXLE

main42301-22050iGX61,MX63¥22,300198208-198504

main42311-22110iLX60,TX62¥20,000198009-198407

main42311-22130iGX60,MX62,RX6#¥19,800198009-198407

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009iGX61,MX63¥290198208-198504

main90311-52059iGX60,LX60,MX62,RX6#,TX62¥320198009-198407

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011iGX60,LX60,MX62,RX6#,TX62¥3,710198009-198407

sub04421-30012¥3,700

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060iGX60,LX60,MX62,RX6#,TX62¥13,100198009-198504

sub42431-14061¥11,900

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iGX60,LX60,MX62,RX6#,TX62¥130198009-198504

10G,10G

main90937-01118iGX60,LX60,MX62,RX6#,TX62¥130198009-198504

20G,20G

main90937-01119iGX60,LX60,MX62,RX6#,TX62¥130198009-198504

30G,30G

main90937-01195iGX60,LX60,MX62,RX6#,TX62¥170198009-198504

40G,40G

main90937-01196iGX60,LX60,MX62,RX6#,TX62¥190198009-198504

50G,50G

main90937-01197iGX60,LX60,MX62,RX6#,TX62¥270198009-198504

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iGX60,LX60,MX62,RX6#,TX62¥620198202-198504

main42424-21010iLX60,MX62,RX6#,TX62¥600198009-198202

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iGX60,LX60,MX62,RX6#,TX62¥230198202-198504

main42425-22020iLX60,MX62,RX6#,TX62¥200198009-198202

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iGX60,LX60,MX62,RX6#,TX62¥620198202-198504

main42454-21010iLX60,MX62,RX6#,TX62¥600198009-198202

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iGX6#,LX60,MX62,RX6#,TX62¥240198009-198307

sub90942-02047¥230

main90942-02047iGX6#,LX60,MX6#,RX60,TX62¥230198307-198504

10 parts on this diagram · 4 diagrams in section
